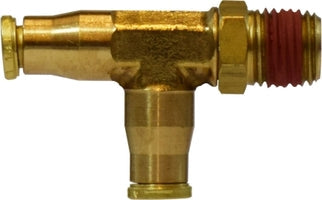

Brass Fitting - Push-In Fitting - Swivel Male Run Tee - Brass
Buy More, Save More!
Quantity Price Each
10–39 $13.43
40–79 $12.15
80+ $10.72
Discounts applied in cart/checkout.

Product Data:

Shape:

Tee

Ends Configuration:
  • 1/4in Push-to-Connect
  • 1/8in Male NPTF
  • 1/4in Push-to-Connect
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Temperature Range: -10°F to 200°F
  • Tolerance: +/- .02 on all dimensions.
  • Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
  • Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required.
  • Reuseable - connect and disconnect numerous times.
  • Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports.
  • Positive Seal - no leaks. After tubing is inserted, seal is made.
  • Versatile - Buna-N O-Rings standard.
  • Secure Tube Retention - pulling on tubing only serves to tighten the connection.
  • Self Contained Assembly - no loose parts, brass body and insert.
  • Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench.
  • Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor.
  • Pipe Thread - NPTF with Teflon® based sealant pre-applied.
  • Not Lead Free
Design:
  • When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).
  • Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.
  • The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).
  • Pressure through the tube also serves to tighten the grip.
  • The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.
    		•
    Crossover Series:
    AQ71PS MQ71S AQ71-PS 56440 3103 171PL KQY 12-468 50-571 271-OFS 11715
    Part Number Tube O.D x Male NPTF A B Hex Approx. Weight
    (Lbs.)
    20160
    (20-160)     		1/8" x 1/8" 0.65" 0.86" 0.43" 0.08
    20161
    (20-161)     		5/32" x 1/8" 0.67" 1.04" 0.43" 0.09
    20162
    (20-162)     		1/4" x 1/8" 0.92" 1.04" 0.44" 0.09
    20163
    (20-163)     		1/4" x 1/4" 0.92" 1.13" 0.56" 0.11
    20164
    (20-164)     		3/8" x 1/4" 0.94" 1.19" 0.56" 0.11
    20165
    (20-165)     		3/8" x 3/8" 0.96" 1.24" 0.50" 0.12
    20174
    (20-174)     		1/2" x 1/4" 1.12" 1.18" 0.51" 0.16
    20166
    (20-166)     		1/2" x 3/8" 1.14" 1.31" 0.68" 0.14
    20167
    (20-167)     		1/2" x 1/2" 1.14" 1.61" 0.87" 0.16

    Dimension data can change without notice.

    Midland Industries

    Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
