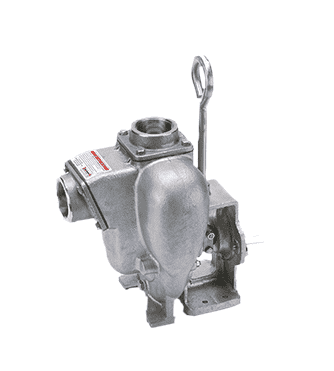

200PB-SS by Banjo | Centrifugal Pumps | 2" Bearing Pedestal with 3/4" Straight Shaft | 316 Stainless Steel

200PB-SS by Banjo | Centrifugal Pumps | 2" Bearing Pedestal with 3/4" Straight Shaft | 316 Stainless Steel

Sale price$2,837.99

Banjo Self-Priming Centrifugal Pumps
2" 316 Stainless Steel Pumps with Gas Engines & Replacement Parts
Buy More, Save More!
Quantity Price Each
2–3 $2,667.71
4–9 $2,554.19
10+ $2,270.39
Discounts applied in cart/checkout.

Product Data:

SPECIFICATIONS

Application: Fluids, Agriculture, Industrial
Features:
  • Carbon ceramic seal consists of 316 stainless steel cup and spring with FKM (viton type) Elastomer
  • All 316 stainless steel wettable internal components: Impeller, Sleeve, Wear plate, Fasteners
  • 316 stainless steel housing
  • Dynamically balanced impeller
Notes:
  • CAUTION-WARNING: Please do not run pump dry, restrict or reduce port sizes, or dead head pump. This could cause component failure to pump.
  • DO NOT USE WITH FLAMMABLE LIQUIDS
  • NOTE: Engine warranty service available at authorized Briggs & Stratton® and Honda® dealers.
Part Number Description Horsepower EPDM Repair Kit Num EPDM Seal Kit Num
2" Stainless Steel Pumps with Gas Engines
200PH5-SS 2" SS Pump with 5.5 HP Honda® Engine with Pull Rope Only 5.5 HP (Made to Order) 17100SS 17035SS
2" Stainless Steel Bearing Pedestal Pumps
200PB-SS 2" SS Bearing Pedestal with 3/4" Straight Shaft (Note: Straight shaft for long coupling to electric motors) N/A (Made to Order) 17100SS 17035SS
2" Stainless Steel Pump Only
200PO-SS 2" SS Pump Only with 3/4" Shaft Sleeve N/A (Made to Order) 17100SS 17035SS
2" Stainless Steel C-Flange Pumps
200POSSCF5/8 2" SS C-Flange Pump with 5.8" Shaft Sleeve N/A (Made to Order) - -
Universal Base Plate Assembly
18700 Base Plate Assembly for 1-1/2", 2" & 3" Cast Iron or Poly Pump (Plate, Coupling Guard, Bolt Bag & Shims) N/A -
 -
 -
18702 Replacement Coupling Guard N/A -
 -
 -
 -

Note: Recommendation for 5.8" Shaft: 56C Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors. Recommendation for 7.8" Shaft:145TC Frame Size, 3 HP, 3450 RPM, & 5" Max Impeller for close coupling to electric motors.

Replacement Parts for 2" Stainless Steel Pumps
Item Part Number Description Quantity Required
1 17000SS SS Outlet Flange 1
2 17002SS SS Inlet Flange 1
3 17046SS CF Adapter for Electric Motor 1
4 17005 5/8" SS Sleeve Drive 1
4 17006 3/4" SS Sleeve Drive 1
4 17007 7/8" SS Sleeve Drive 1
5 17008SS* SS Impeller 1
6 17009B 5/8" Impeller Nut 1
7 17011SS* SS Wear Plate 1
8 17014 FKM (viton type) Outlet Gasket 1
9 17017 FKM (viton type) Check Valve Assembly Gasket 1
10 17018 Adapter Gasket 1
11 15022 Handle 1
12 17023 5/8" Clamp, 3/4" SS Shaft (Old Style) 1
12 17123 5/8" Clamp, 3/4" SS Shaft (Keyed Clamp) 1
12 17024 7/8" Clamp, 3/4" SS Shaft 1
13 17026SS SS Pump Housing 1
14 17130SS 5/16-18 x 1.00" FHSCS, 316 SS 2
15 V10118 5/16" Lock Washer 18
16 V10119 5/16"-18 SS Hex Nut 6
17 12882A Bearing Pedestal Assembly with 3/4" Shaft 1
18 17040 Bolt 4
19 17035SS FKM (viton type) SS Seal Assembly 1
20 17010 1/2" - 24 x 1" HHCS 1
21 12777SS 1/2" Stainless Steel Plug 1
22 UV15163V O-Ring FKM (viton type) 1
23 17019 5/16" - 18 x 3/4" Cap Screw 8
24 17042 Stud 6
Not Shown 17100SS Pump Repair Kit(Consists of 4,5,7,10,14,19) 1
