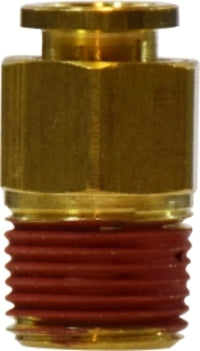

20059 by Midland | Push-In Fitting | Connector | 3/8" Tube OD x 3/8" Male NPTF | Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Push-In Fitting - Male Connector - Brass
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.95 |
| 40–79 | $7.19 |
| 80+ | $6.35 |
Discounts applied in cart/checkout.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
| Design: | |
|---|---|
 |
|
| Crossover Series: | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| AQ68P | MQ68 | 268PP | AQ68 | 6510 | 3115 | 68PL | KQH | 12-425 | 50-568 | 268-OF | 1168 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube O.D x Male NPTF | A | Hex | Approx. Weight (Lbs.) |
| 20047* (20-047) |
1/8" x 10-32"* | 0.69" | 0.37" | 0.02 |
| 20045 (20-045) |
1/8" x 1/16" | 0.68" | 0.37" | 0.02 |
| 20048 (20-048) |
1/8" x 1/8" | 0.61" | 0.43" | 0.02 |
| 20023 (20-023) |
1/8" x 1/4" | 0.98" | 0.56" | 0.04 |
| 20049* (20-049) |
5/32" x 10-32"* | 0.67" | 0.37" | 0.02 |
| 20050 (20-050) |
5/32" x 1/8" | 0.67" | 0.43" | 0.03 |
| 20046 (20-046) |
5/32" x 1/4" | 0.85" | 0.56" | 0.05 |
| 20051* (20-051) |
3/16" x 10-32"* | 0.80" | 0.37" | 0.02 |
| 20052 (20-052) |
3/16" x 1/8" | 0.93" | 0.43" | 0.03 |
| 20053* (20-053) |
1/4" x 10-32"* | 0.70" | 0.43" | 0.03 |
| 20039 (20-039) |
1/4" x 1/16" | 0.92" | 0.43" | 0.06 |
| 20054 (20-054) |
1/4" x 1/8" | 0.93" | 0.43" | 0.06 |
| 20055 (20-055) |
1/4" x 1/4" | 0.93" | 0.56" | 0.10 |
| 20056 (20-056) |
1/4" x 3/8" | 0.94" | 0.68" | 0.08 |
| 20530 (20-530) |
5/16" x 1/8" | 1.07" | 0.56" | 0.05 |
| 20531 (20-531) |
5/16" x 1/4" | 0.98" | 0.56" | 0.10 |
| 20532 (20-532) |
5/16" x 3/8" | 1.06" | 0.75" | 0.08 |
| 20057 (20-057) |
3/8" x 1/8" | 1.10" | 0.56" | 0.06 |
| 20058 (20-058) |
3/8" x 1/4" | 1.11" | 0.56" | 0.05 |
| 20059 (20-059) |
3/8" x 3/8" | 1.02" | 0.68" | 0.08 |
| 20062 (20-062) |
3/8" x 1/2" | 1.02" | 0.87" | 0.08 |
| 20060 (20-060) |
1/2" x 1/4" | 1.36" | 0.81" | 0.11 |
| 20061 (20-061) |
1/2" x 3/8" | 1.30" | 0.81" | 0.12 |
| 20063 (20-063) |
1/2" x 1/2" | 1.23" | 0.87" | 0.14 |
* Furnished with gaskets
Dimension data can change without notice.
