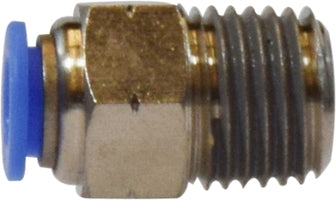

20050C by Midland | Push-In Fitting | Connector | 5/32" Tube OD x 1/8" Male NPT | Nickel Plated Brass
Minimum Order Quantity: 5 Units
Midland Industries
Brass Fitting - Nickel Plated Brass Body Push-in Fitting - Male Connector
The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.44 |
| 40–79 | $6.73 |
| 80+ | $5.94 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
SPECIFICATIONS
| Fluid Admitted: | Air | Working Pressure Range: | 0-150 PSI (10 BAR) |
|---|---|---|---|
| Min. Burst Pressure: | 340 PSI (23 BAR) | Working Temperature Range: | 0°F ~160°F |
| Tolerance: | +/- .02 on all dimensions. | ||
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite Polyacetal (Hemopolymer, Copolymer) |
| 2 | Body | Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Brass |
| 7 | O-Ring | NBR 70 |
| 8 | Threads | Brass with White Sealant |
| Crossover Series: |
|---|
| PQ68P |
| Part Number | Tube O.D. x Male NPT | Approx. Weight (Lbs.) |
|---|---|---|
| 20050C (20-050C) |
5/32" x 1/8" | 0.02 |
| 20053C (20-053C) |
1/4" x 10-32" | 0.02 |
| 20054C (20-054C) |
1/4" x 1/8" | 0.02 |
| 20055C (20-055C) |
1/4" x 1/4" | 0.02 |
| 20056C (20-056C) |
1/4" x 3/8" | 0.04 |
| 20530C (20-530C) |
5/16" x 1/8" | 0.05 |
| 20531C (20-531C) |
5/16" x 1/4" | 0.05 |
| 20057C (20-057C) |
3/8" x 1/8" | 0.05 |
| 20058C (20-058C) |
3/8" x 1/4" | 0.06 |
| 20059C (20-059C) |
3/8" x 3/8" | 0.06 |
| 20062C (20-062C) |
3/8" x 1/2" | 0.08 |
| 20060C (20-060C) |
1/2" x 1/4" | 0.06 |
| 20061C (20-061C) |
1/2" x 3/8" | 0.08 |
| 20063C (20-063C) |
1/2" x 1/2" | 0.10 |
Dimension Data can change without notice.
