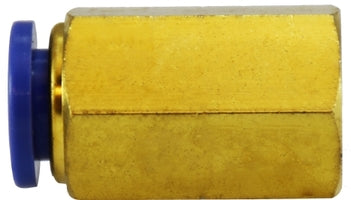

20037C by Midland | Push-In Fitting | Connector | 3/8" Tube OD x 3/8" Female NPT | Brass
Midland Industries
Brass Fitting - Brass Body Push-in Fitting - Female Connector
The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.87 |
| 40–79 | $13.45 |
| 80+ | $11.87 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
SPECIFICATIONS
| Fluid Admitted: | Air | Working Pressure Range: | 0-150 PSI (10 BAR) |
|---|---|---|---|
| Min. Burst Pressure: | 340 PSI (23 BAR) | Working Temperature Range: | 0°F ~160°F |
| Tolerance: | +/- .02 on all dimensions. | ||
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite Polyacetal (Hemopolymer, Copolymer) |
| 2 | Body | Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Brass |
| 7 | O-Ring | NBR 70 |
| 8 | Threads | Brass with White Sealant |
| Crossover Series: |
|---|
| PQ66P |
| Part Number | Tube O.D. x Female NPT | Approx. Weight (Lbs.) |
|---|---|---|
| 20034C (20-034C) |
1/4" x 1/8" | 0.02 |
| 20035C (20-035C) |
1/4" x 1/4" | 0.04 |
| 20036C (20-036C) |
3/8" x 1/4" | 0.04 |
| 20037C (20-037C) |
3/8" x 3/8" | 0.06 |
Dimension Data can change without notice.
