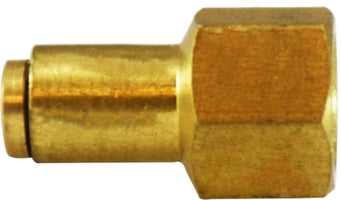

20036 by Midland | Push-In Fitting | Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

20036 by Midland | Push-In Fitting | Connector | 3/8" Tube OD x 1/4" Female NPTF | Brass

Sale price$18.08
Quantity Price Each
50–99 $16.27
100+ $14.46
Discounts applied at checkout.

Midland Industries
Brass Fitting - Push-In Fitting - Female Connector - Brass

Product Data:

Shape:

["Straight"]

Ends Configuration:
  • 3/8in Push-to-Connect
  • 1/4in Female NPTF
Material(s):
  • Brass
Features:
  • Temperature Range: -10°F to 200°F
  • Tolerance: +/- .02 on all dimensions.
  • Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
  • Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required.
  • Reuseable - connect and disconnect numerous times.
  • Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports.
  • Positive Seal - no leaks. After tubing is inserted, seal is made.
  • Versatile - Buna-N O-Rings standard.
  • Secure Tube Retention - pulling on tubing only serves to tighten the connection.
  • Self Contained Assembly - no loose parts, brass body and insert.
  • Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench.
  • Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor.
  • Pipe Thread - NPTF with Teflon® based sealant pre-applied.
  • Not Lead Free
Design:
  • When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).
  • Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.
  • The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).
  • Pressure through the tube also serves to tighten the grip.
  • The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.
    		•
    Crossover Series:
    AQ66P 266PP AQ66 6463 3114 66PL 12-426 50-566 266-OF 1166
    Part Number Tube O.D x Female NPTF A Hex Approx. Wt. Lbs.
    20032
    (20-032)     		1/8" x 1/8" 0.96" 0.56" 0.04
    20038
    (20-038)     		1/8" x 1/4" 1.04" 0.67" 0.04
    20012
    (20-012)     		5/32" x 1/8" 1.09" 0.56" 0.05
    20034
    (20-034)     		1/4" x 1/8" 1.23" 0.56" 0.06
    20035
    (20-035)     		1/4" x 1/4" 1.42" 0.75" 0.09
    20036
    (20-036)     		3/8" x 1/4" 1.32" 0.75" 0.09
    20037
    (20-037)     		3/8" x 3/8" 1.31" 0.87" 0.12

    Dimension data can change without notice.
