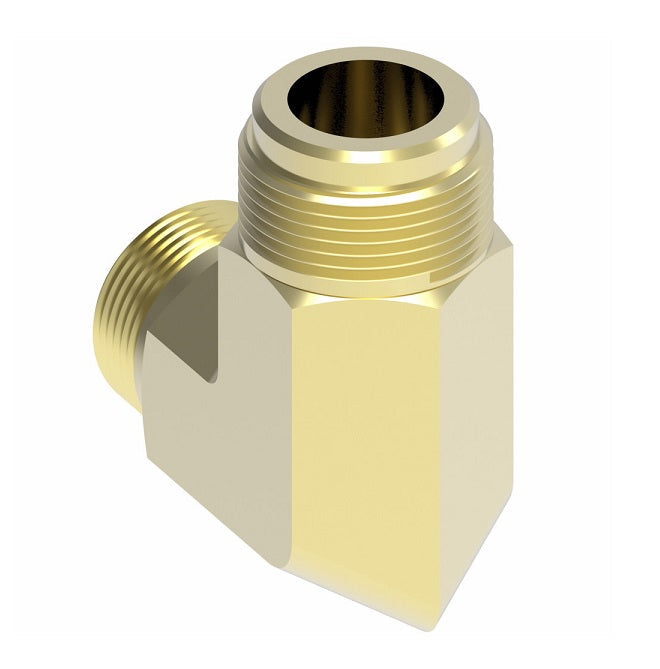

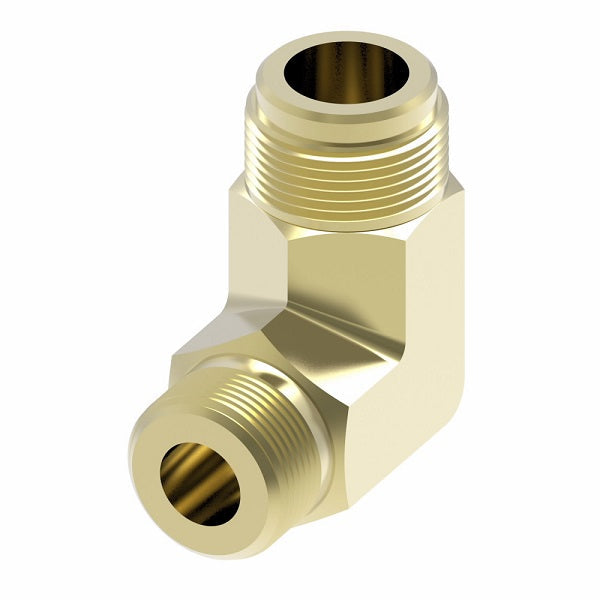

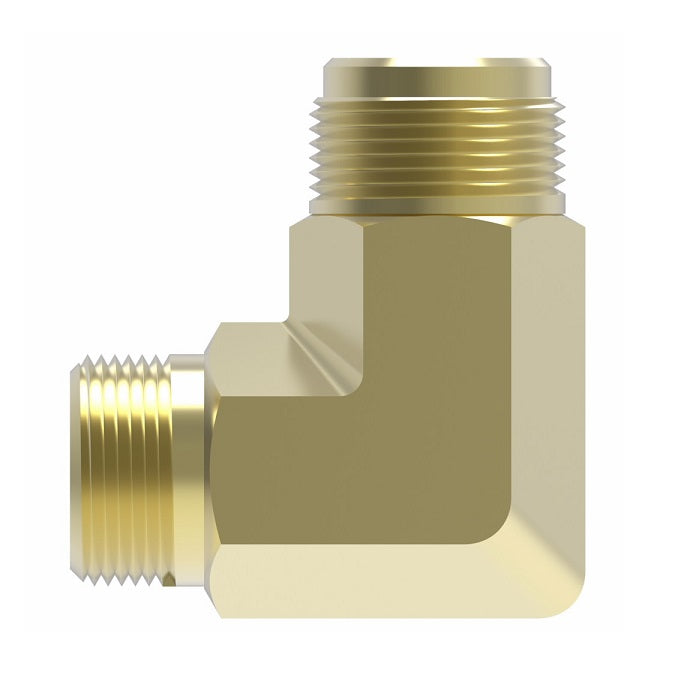

2003-4-4B Aeroquip by Danfoss | External Pipe/45° Flare 90° Elbow Adapter | -04 Male NPTF x -04 Male SAE 45° Flare | Brass
Minimum Order Quantity: 5 Units
Aeroquip® by Danfoss
External Pipe/45° Flare Adapter
Male NPTF x Male SAE 45° Flare
90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $7.64 |
| 40–79 | $6.91 |
| 80+ | $6.10 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
| Specifications: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Brass |
Tube O.D. | Thread P | Thread T | A | B |
| 2003-2-4B | 0.25" | 1/8-27 | 7/16-20 | 0.76" | 0.79" |
| 2003-2-5B | 0.31" | 1/8-27 | 1/2-20 | 0.78" | 0.91" |
| 2003-2-6B | 0.38" | 1/8-27 | 5/8-18 | 0.91" | 1.03" |
| 2003-4-4B | 0.25" | 1/4-18 | 7/16-20 | 0.88" | 0.99" |
| 2003-4-5B | 0.31" | 1/4-18 | 1/2-20 | 0.92" | 0.95" |
| 2003-4-6B | 0.38" | 1/4-18 | 5/8-18 | 1.05" | 0.98" |
| 2003-4-8B | 0.50" | 1/4-18 | 3/4-16 | 1.19" | 1.23" |
| 2003-6-4B | 0.25" | 3/8-18 | 7/16-20 | 1.03" | 0.94" |
| 2003-6-5B | 0.31" | 3/8-18 | 1/2-20 | 0.91" | 1.00" |
| 2003-6-6B | 0.38" | 3/8-18 | 5/8-18 | 1.09" | 1.04" |
| 2003-6-8B | 0.50" | 3/8-18 | 3/4-16 | 1.12" | 1.23" |
| 2003-6-10B | 0.63" | 3/8-18 | 7/8-14 | 1.22" | 1.42" |
| 2003-8-6B | 0.38" | 1/2-14 | 5/8-18 | 1.35" | 1.16" |
| 2003-8-8B | 0.50" | 1/2-14 | 3/4-16 | 1.25" | 1.32" |
| 2003-8-10B | 0.63" | 1/2-14 | 7/8-14 | 1.37" | 1.42" |
| 2003-8-12B | 0.75" | 1/2-14 | 1-1/16-14 | 1.48" | 1.62" |
| 2003-12-8B | 0.50" | 3/4-14 | 3/4-16 | 1.48" | 1.62" |
| 2003-12-10B | 0.63" | 3/4-14 | 7/8-14 | 1.31" | 1.43" |
| 2003-12-12B | 0.75" | 3/4-14 | 1-1/16-14 | 1.50" | 1.62" |
