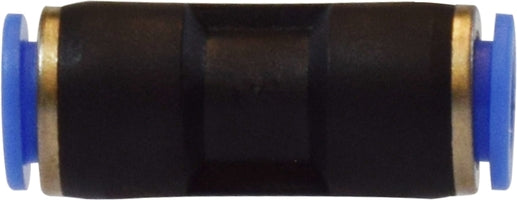

20021C by Midland | Push-In Fitting | Union | 1/2" Tube OD | Composite Body
Midland Industries
Brass Fitting - Composite Body Push-in Fitting - Union
The latest generation of composite material is used in the body construction in addition to brass on threaded components, and stainless steel on the tube gripper.
Product Data:
Shape:
["Straight"]
Ends Configuration:
Material(s):
Seal Material(s):
SPECIFICATIONS
| Fluid Admitted: | Air | Working Pressure Range: | 0-150 PSI (10 BAR) |
|---|---|---|---|
| Min. Burst Pressure: | 340 PSI (23 BAR) | Working Temperature Range: | 0°F ~160°F |
| Tolerance: | +/- .02 on all dimensions. | ||
| Materials of Construcion | ||
|---|---|---|
| 1 | Body | Composite Polyacetal (Hemopolymer, Copolymer) |
| 2 | Body | Brass |
| 3 | Tube Release | Acetal Resin |
| 4 | Retainer | Brass |
| 5 | Gripper Ring | Stainless Steel |
| 6 | Spacer | Brass |
| 7 | O-Ring | NBR 70 |
| 8 | Threads | Brass with White Sealant |
| Crossover Series: |
|---|
| PQ62P |
| Part Number | Tube O.D. | Approx. Weight (Lbs.) |
|---|---|---|
| 20017C (20-017C) |
1/8" | 0.01 |
| 20018C (20-018C) |
5/32" | 0.01 |
| 20001C (20-001C) |
3/16" | 0.01 |
| 20019C (20-019C) |
1/4" | 0.01 |
| 20015C (20-015C) |
5/16" | 0.01 |
| 20020C (20-020C) |
3/8" | 0.02 |
| 20021C (20-021C) |
1/2" | 0.03 |
| 20016C (20-016C) |
1/4" x 5/32" | 0.01 |
| 20515C (20-515C) |
5/16" x 1/4" | 0.01 |
| 20022C (20-022C) |
3/8" x 1/4" | 0.01 |
| 20516C (20-516C) |
3/8" x 5/16" | 0.02 |
| 20024C (20-024C) |
1/2" x 3/8" | 0.03 |
Dimension Data can change without notice.
