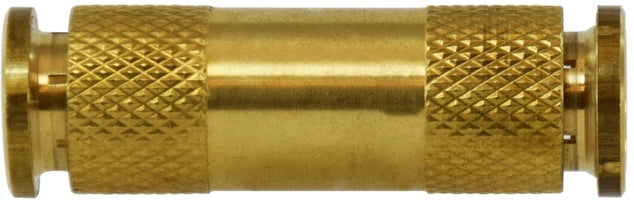

20021 by Midland | Push-In Fitting | Union Connector | 1/2" Tube OD | Brass

20021 by Midland | Push-In Fitting | Union Connector | 1/2" Tube OD | Brass

Sale price$17.46

Midland Industries
Brass Fitting - Push-In Fitting - Union Connector - Brass
Buy More, Save More!
Quantity Price Each
10–39 $16.41
40–79 $14.84
80+ $13.10
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Push-to-Connect
  • 1/2in Push-to-Connect
  • Some Ends Match
Material(s):
  • Brass
Features:
  • Temperature Range: -10°F to 200°F
  • Tolerance: +/- .02 on all dimensions.
  • Quick Connect - simply push tubing in, no tools. Saves up to 75% of assembly time of standard compression fittings.
  • Quick Disconnect - hold two fingers on insert and pull tubing out, no tools required.
  • Reuseable - connect and disconnect numerous times.
  • Full Flow Design - provides up to 60% more flow area than conventional fittings with internal tube supports.
  • Positive Seal - no leaks. After tubing is inserted, seal is made.
  • Versatile - Buna-N O-Rings standard.
  • Secure Tube Retention - pulling on tubing only serves to tighten the connection.
  • Self Contained Assembly - no loose parts, brass body and insert.
  • Straight Connectors - have interior hex for Allen key tightening where space is limited, no need to use a wrench.
  • Pre-Applied Teflon®-Based pipe sealant on all male pipe threads, saving customer additional labor.
  • Pipe Thread - NPTF with Teflon® based sealant pre-applied.
  • Not Lead Free
Design:
  • When tubing (1) is inserted into the fitting, it first passes through the gripping teeth (2).
  • Just beyond the gripping teeth is the o-ring (3) which provides the leak proof seal against the OD of the tube.
  • The gripping teeth grab the tube, which expands the insert. Pulling back on the tube only tightens the grip as the insert moves onto the camming surface (4).
  • Pressure through the tube also serves to tighten the grip.
  • The tube bottoms against a positive tube stop (5) in a cavity providing tube support to prevent leakage.
    		•
    Crossover Series:
    AQ62P MQ62 AQ62 6580 3106 62PL KQH 12-020 50-562 262-OF 1162 262PP
    Part Number Tube O.D A B Approx. Weight
    (Lbs.)
    20017
    (20-017)     		1/8" 1.07" 0.38" 0.03
    20018
    (20-018)     		5/32" 1.07" 0.38" 0.03
    20019
    (20-019)     		1/4" 1.50" 0.44" 0.05
    20022
    (20-022)     		3/8" x 1/4" 1.46" 0.56" 0.05
    20020
    (20-020)     		3/8" 1.44" 0.56" 0.06
    20021
    (20-021)     		1/2" 1.63" 0.81" 0.18

    Dimension data can change without notice.
