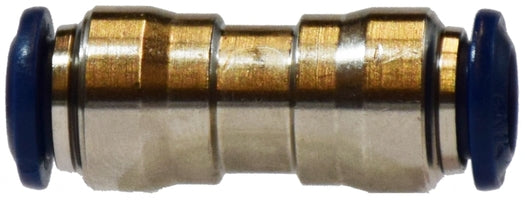

20015N by Midland | Push-In Fitting | Union Connector | 5/16" Tube OD | Nickel Plated Brass
Midland Industries
Brass Fitting - Nickel Plated Push-in Fitting - Union Connector
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $11.20 |
| 40–79 | $10.12 |
| 80+ | $8.93 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
| Features: | |||
|---|---|---|---|
|
|||
| Specifications: | |||
|
| Component Parts and Materials: | |
|---|---|
| Body | Brass - Nickel Plated |
| Thrust Ring | Acetalic Resin/ Glass filled Nylon |
| Sleeve | Brass - Nickel Plated |
| Gripper Collet | Stainless Steel |
| Safety Ring | PA66 |
| Lip Seal (1/8" O-Ring Seal) | NBR 70 |
| Thread Seal | NBR 70 |
| Crossover Series: | |
|---|---|
| 62PL | 88040 |
 |
||||
|---|---|---|---|---|
| Part Number | Tube O.D. | A | B | Approx. Weight (Lbs.) |
| 20017N (20-017N) |
1/8" | 1.06" | 0.34" | 0.03 |
| 20018N (20-018N) |
5/32" | 1.20" | 0.41" | 0.03 |
| 20016N (20-016N) |
5/32" x 1/4" | 1.20" | 0.40" | 0.04 |
| 20019N (20-019N) |
1/4" | 1.38" | 0.49" | 0.05 |
| 20015N (20-015N) |
5/16" | 1.46" | 0.57" | 0.06 |
| 20020N (20-020N) |
3/8" | 1.69" | 0.69" | 0.06 |
| 20022N (20-022N) |
3/8" x 1/4" | 1.69" | 0.68" | 0.06 |
| 20021N (20-021N) |
1/2" | 1.93" | 0.81" | 0.18 |
| 20024N (20-024N) |
1/2" x 3/8" | 1.84" | 0.80" | 0.17 |
Dimension data can change without notice.
