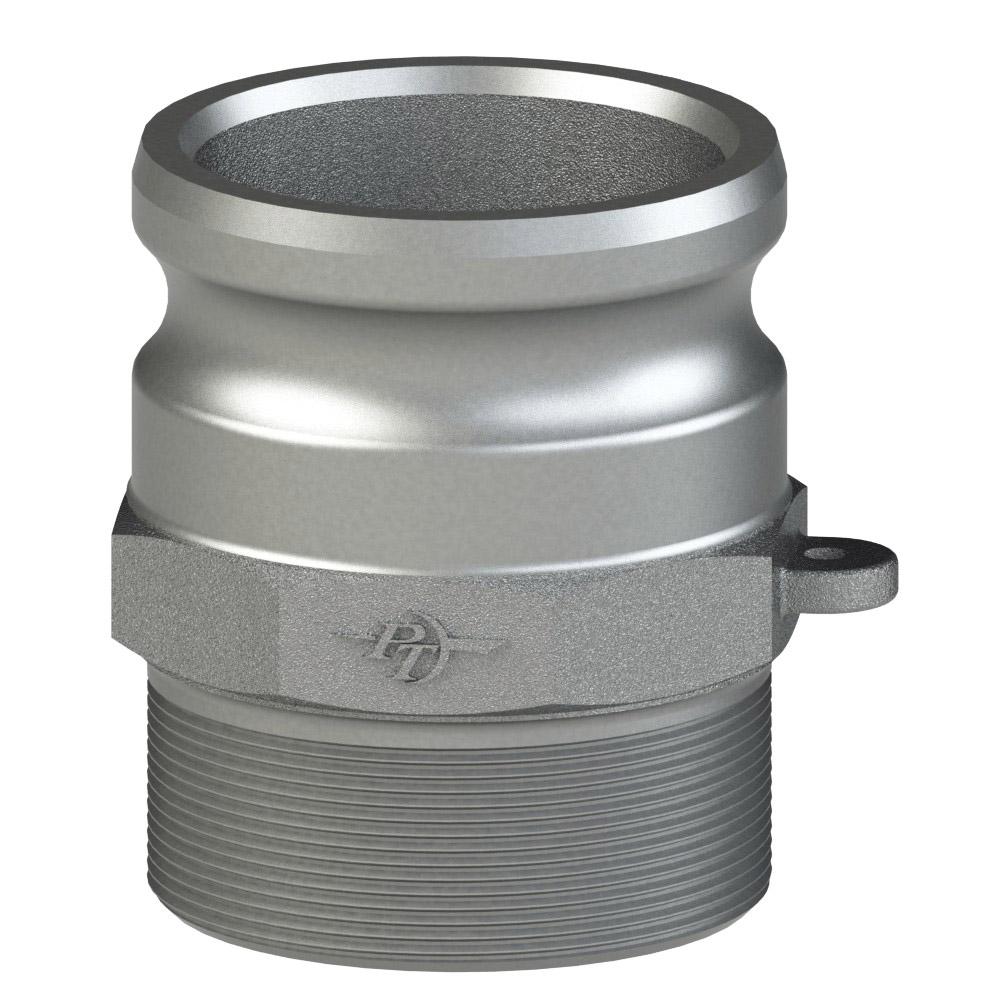

2000601 (E05F) by PT-Coupling | Cam & Groove Adapter | Type F | 1/2" Adapter x 1/2" Male NPT | Hard Coat Aluminum

2000601 (E05F) by PT-Coupling | Cam & Groove Adapter | Type F | 1/2" Adapter x 1/2" Male NPT | Hard Coat Aluminum

Sale price$21.32

PT Coupling
Cam and Groove (Camlock) Adapter | Type F | Adapter x Male NPT | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $20.04
40–79 $18.12
80+ $15.99
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type F

Ends Configuration:
  • 1/2in Male Cam & Groove
  • 1/2in Male NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Couplings not interchangeable in the industry are sizes 8" through 12".
  • Made in the USA
Part
Name		 Item # Adapter
Size		 Male NPT
Thread		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Max. Across
Corners
(F)		 Chain Lug
Extension
(G)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*
E05F 2000601 1/2" 1/2" 1.96" 1.26" 0.53" 1.12" - 1.03" 250 PSI
1/2F 2000605 3/4" 1/2" 2.47" 1.67" 0.56" 1.42" - 0.97" 250 PSI
07F 2000607 3/4" 3/4" 2.47" 1.67" 0.75" 1.42" - 0.97" 250 PSI
10F 2000610 1" 1" 2.89" 1.99" 0.85" 1.75" 0.34" 1.19" 250 PSI
12F 2000612 1-1/4" 1-1/4" 3.23" 2.23" 1.04" 2.16" 0.34" 1.44" 250 PSI
15F 2000615 1-1/2" 1-1/2" 3.29" 2.31" 1.34" 2.44" 0.30" 1.48" 250 PSI
20F 2000620 2" 2" 3.57" 2.57" 1.72" 2.84" 0.28" 1.75" 250 PSI
25F 2000625 2-1/2" 2-1/2" 4.18" 2.78" 2.14" 3.45" 0.29" 1.75" 200 PSI
30F 2000630 3" 3" 4.37" 2.87" 2.80" 4.07" 0.44" 1.84" 200 PSI
40F 2000640 4" 4" 4.79" 3.19" 3.78" 5.27" 0.40" 1.87" 150 PSI
50F 2000650 5" 5" 4.91" 3.21" 4.79" 6.39" 0.16" 1.97" 75 PSI
60F 2000660 6" 6" 5.20" 3.40" 5.84" 7.70" 0.60" 2.19" 75 PSI

*Above maximum allowable working pressures are based on operating temperatures less than 100°F

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
