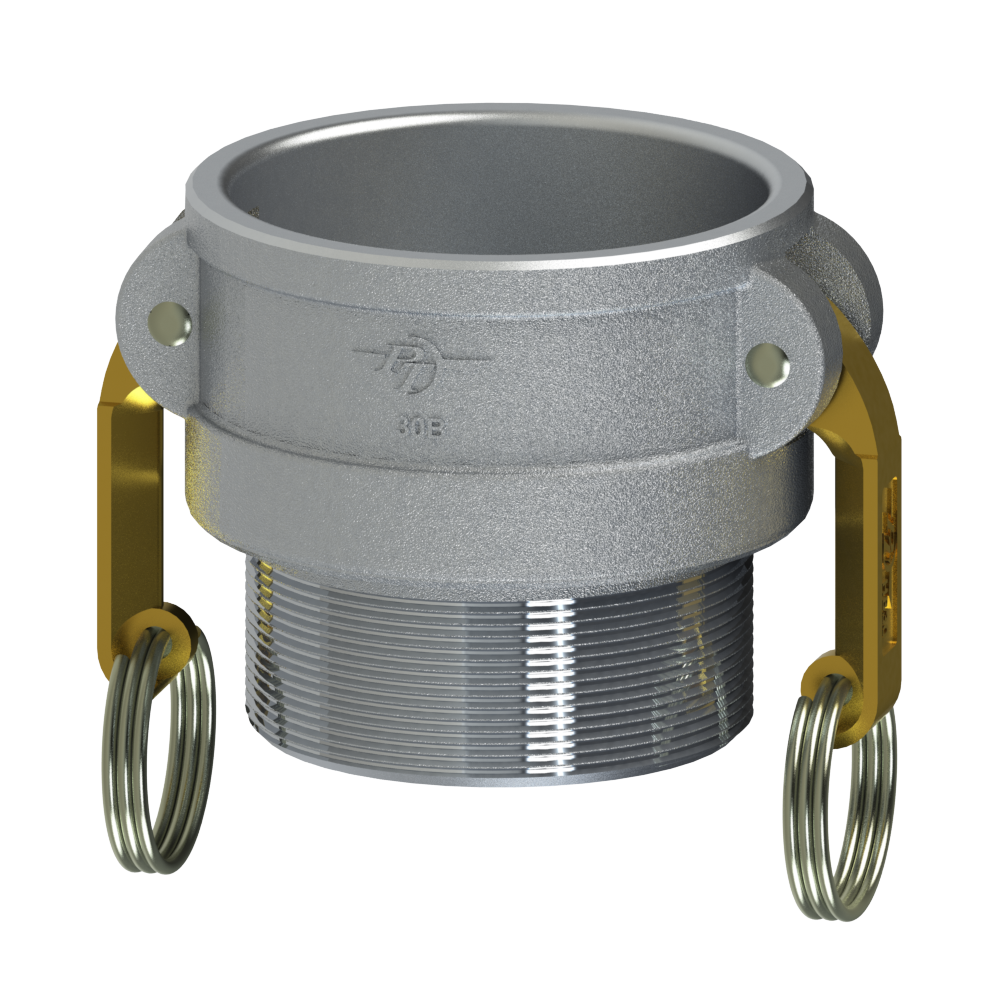

2000212 (12B) by PT-Coupling | Cam & Groove Adapter | Type B | 1-1/4" Coupler x 1-1/4" Male NPT | Hard Coat Aluminum | Buna-N Seal

2000212 (12B) by PT-Coupling | Cam & Groove Adapter | Type B | 1-1/4" Coupler x 1-1/4" Male NPT | Hard Coat Aluminum | Buna-N Seal

Sale price$38.71

PT Coupling
Cam and Groove (Camlock) Adapter | Type B | Coupler x Male NPT Thread | Hard Coat Aluminum

Use with water, hydraulic oil, coolants, gasoline, and petroleum products.

Made in the USA
Buy More, Save More!
Quantity Price Each
10–39 $36.39
40–79 $32.90
80+ $29.03
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Cam & Groove Type:

Type B

Ends Configuration:
  • 1-1/4in Female Cam & Groove
  • 1-1/4in Male NPT
Overview:
  • PT Quick Connect/Disconnect Couplings provide for quick connecting and disconnecting by means of the camming action. This camming action allows pipe and hose connections to be made without the need of hand tools or difficult threaded connections. Cam and groove couplings are made up of two parts, male (adapter/plug) and female (coupler/socket) that work together. The male adapter is simply inserted into the female coupler until contact is made with the gasket. Both cam arms on the coupler are then pressed down/closed simultaneously to produce a uniform gasket compression between the seal surfaces. This seal is created because the cam arms of the female coupler fit snugly against the groove of the male adapter. A positive seal requires that the surfaces on the gasket seat, the adapter face, and the gasket are smooth and uncontaminated. Also cam arms must be in the full closed position for proper locking of the coupling. To disconnect both arms must be lifted / opened simultaneously to release the seal and release the connection.
Features & Applications:
  • 8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature.
  • This is a lightweight material with good abrasion resistance. Good corrosion and chemical resistance.
  • Use with sand and salt water applications, as well as hydraulic oil, coolants, gasoline and petroleum products.
  • Made in the USA
Part Name Item # Coupler
Size		 Thread
(Male NPT)		 O.D. with
Cam Arms
Extended
(A)		 Outside
Diameter
(B)		 Overall
Length
(C)		 Exposed
Length
(D)		 Inside
Diameter
(E)		 Engagement
Length		 Max. Allowable
Working Press.
(PSI)*		 Weight
E05B 2000201 1/2" 1/2" 4.21" 1.82" 2.10" 1.25" 0.56" 1.03" 250 PSI 0.205 lbs.
1/2B 2000205 3/4" 1/2" 4.51" 2.11" 2.10" 1.25" 0.56" 0.97" 250 PSI 0.18 lbs.
07B 2000207 3/4" 3/4" 4.51" 2.11" 2.10" 1.25" 0.78" 0.97" 250 PSI 0.255 lbs.
10B 2000210 1" 1" 5.10" 2.44" 2.50" 1.56" 0.97" 1.19" 250 PSI 0.359 lbs.
12B 2000212 1-1/4" 1-1/4" 6.86" 3.26" 2.89" 1.84" 1.25" 1.44" 250 PSI 0.656 lbs.
15B 2000215 1-1/2" 1-1/2" 7.16" 3.56" 2.93" 1.88" 1.50" 1.48" 250 PSI 0.729 lbs.
20B 2000220 2" 2" 7.54" 3.94" 3.20" 2.15" 1.88" 1.75" 250 PSI 0.874 lbs.
25B 2000225 2-1/2" 2-1/2" 8.03" 4.43" 3.63" 2.18" 2.38" 1.75" 200 PSI 1.155 lbs.
30B 2000230 3" 3" 9.56" 5.46" 3.82" 2.27" 2.88" 1.84" 200 PSI 1.732 lbs.
40B 2000240 4" 4" 10.66" 6.56" 4.00" 2.34" 3.60" 1.87" 150 PSI 2.632 lbs.

**8, 10, and 12 inch couplers have a 4-cam design with the STA-LOK® positive locking feature.
*Above maximum allowable working pressures are based on operating temperatures less than 100°F.

PT-Coupling

PT Coupling is a renowned manufacturer of Cam & Groove fittings, Punch-Lok banding, and clamps for industrial hoses. Established in 1951, the company offers a range of products made from different materials and is known for their innovative proprietary Punch-Lok design. PT Coupling's products are trusted by customers worldwide in various industries, such as agriculture, construction, and mining. With a commitment to quality and customer service, PT Coupling continues to be a leading producer of industrial hose fittings.
