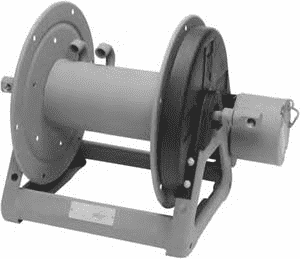

MX-2016-17-18 by Hannay | 2000 Series | Manual Rewind Reel

MX-2016-17-18 by Hannay | 2000 Series | Manual Rewind Reel

Sale price$918.95



2000 Manual Rewind Reels To handle dual 1/4" through 1/2" I.D. hose.
Buy More, Save More!
Quantity Price Each
5–14 $863.81
15–29 $781.11
30+ $689.21
Discounts applied in cart/checkout.

Product Data:

Series:
  • 2000 Series
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • MX Crank rewind reels: pinion brake as standard.
  • Standard inlets 90 deg. ball bearing swivel joints 1/2" female NPT threads.
  • Standard outlets 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar).
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2"
O.D. (in) 5/8" 3/4" 7/8" A B E Crank E Power F Crank F Power X
MX-2016-17-18 (two) 100' lengths (two) 75' lengths (two) 50' lengths 32 lbs. 13" 8" 18.5" 19" 21" 20" 11.5"
MX-2020-17-18 (two) 175' lengths (two) 125' lengths (two) 75' lengths 34 lbs. 17" 12" 18.5" 19" 25" 24" 15.5"
MX-2026-17-18 (two) 275' lengths (two) 200' lengths (two) 125' lengths 36 lbs. 23" 18" 18.5" 19" 31" 30" 21.5"
MX-2030-17-18 (two) 350' lengths (two) 250' lengths (two) 175' lengths 37 lbs. 27" 22" 18.5" 19" 35" 34" 25.5"
MX-2036-17-18 (two) 425' lengths (two) 300' lengths (two) 225' lengths 39 lbs. 33" 28" 18.5" 19" 41" 40" 31.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
