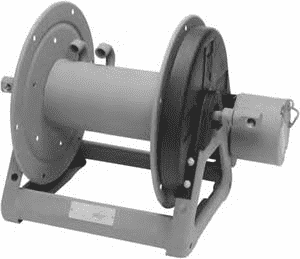

A-2016-17-18 by Hannay | 2000 Series | Air Powered Rewind Reel

A-2016-17-18 by Hannay | 2000 Series | Air Powered Rewind Reel

Sale price$1,601.87



2000 Air Powered Rewind Reels To handle dual 1/4" through 1/2" I.D. hose.
Buy More, Save More!
Quantity Price Each
4–7 $1,505.76
8–14 $1,441.68
15+ $1,281.50
Discounts applied in cart/checkout.

Product Data:

Series:
  • 2000 Series
Applications:
  • Hydraulics
  • Air/Water
  • Spray Painting
Features:
  • Two swivel joint inlets and two outlet risers to handle two equal lengths of hose.
  • Chain and sprocket rewind powered by a compressed air motor.
  • Power rewind reels are not supplied with a brake.
  • Standard inlets 90 deg. ball bearing swivel joints 1/2" female NPT threads.
  • Standard outlets 1/2" female NPT threads.
  • Pressures to 3000 psi (207 bar).
  • Temperatures from +20 deg. F to +400 deg. F (-7 deg. C to +204 deg. C).
  • NOTICE: A Flexible Connector must be used between the inlet pipe and the inlet swivel joint.
  • Reels for use with oxygen/acetylene.
Model Number Hose Capacity of Reel (Ft.) Approx. Weight (Lbs.) Reel Dimensions (In.)
I.D. (in) 1/4" 3/8" 1/2"
O.D. (in) 5/8" 3/4" 7/8" A B E Crank E Power F Crank F Power X
A-2016-17-18 (two) 100' lengths (two) 75' lengths (two) 50' lengths 47 lbs. 13" 8" 18.5" 19" 21" 20" 11.5"
A-2020-17-18 (two) 175' lengths (two) 125' lengths (two) 75' lengths 49 lbs. 17" 12" 18.5" 19" 25" 24" 15.5"
A-2026-17-18 (two) 275' lengths (two) 200' lengths (two) 125' lengths 51 lbs. 23" 18" 18.5" 19" 31" 30" 21.5"
A-2030-17-18 (two) 350' lengths (two) 250' lengths (two) 175' lengths 52 lbs. 27" 22" 18.5" 19" 35" 34" 25.5"
A-2036-17-18 (two) 425' lengths (two) 300' lengths (two) 225' lengths 54 lbs. 33" 28" 18.5" 19" 41" 40" 31.5"

Hannay Reels

Hannay Reels is the leading manufacturer of durable hose and cable reels for both OEM and aftermarket applications, offering thousands of standard models along with a wide range of custom design capabilities. Hannay’s superior manufacturing techniques, consistent quality, outstanding service and unmatched value result in the most dependable, best-engineered reels in the business.
