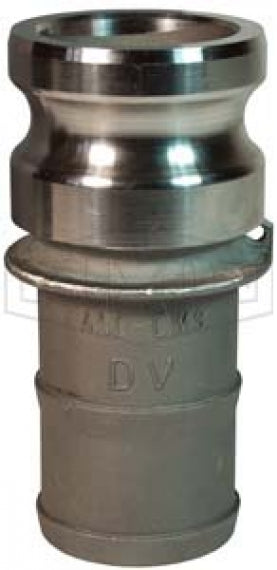

200-E-HA by Dixon Valve | King Crimp® Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | Hastelloy®

200-E-HA by Dixon Valve | King Crimp® Cam & Groove Adapter | Type E | 2" Adapter x 2" Hose Shank | Hastelloy®

Sale price$390.77

Dixon Valve
Cam & Groove Fitting | Type E | Adapter x Hose Shank | Hastelloy®

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $367.32
15–29 $332.15
30+ $312.62
Discounts applied in cart/checkout.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Hastelloy® CW12MW
Part Number		 Size Max. Operating Pressure
100-E-HA* 1" 250 PSI
150-E-HA 1-1/2" 250 PSI
200-E-HA* 2" 250 PSI
300-E-HA 3" 125 PSI

* King Crimp Shank

Product Data:

Brand:
  • King Crimp
MAWP:

250

Shape:

Straight

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
