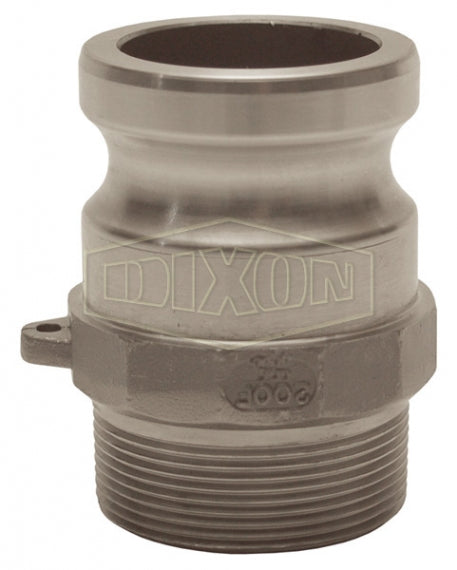

200-F-HA by Dixon Valve | Cam & Groove Adapter | Type F | 2" Adapter x 2" Male NPT | Hastelloy®

200-F-HA by Dixon Valve | Cam & Groove Adapter | Type F | 2" Adapter x 2" Male NPT | Hastelloy®

Sale price$498.85

Dixon Valve
Cam & Groove Fitting | Type F | Adapter x Male NPT | Hastelloy®

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $468.92
15–29 $424.02
30+ $374.14
Discounts applied in cart/checkout.

Product Data:

MAWP:

250

Shape:

Straight

Cam & Groove Type:

Type F
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating is based on the seal of the mating part.
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Hastelloy® CW12MW
Part Number		 Size Max. Operating Pressure
100-F-HA 1" 250 PSI
150-F-HA 1-1/2" 250 PSI
200-F-HA 2" 250 PSI
300-F-HA 3" 125 PSI
