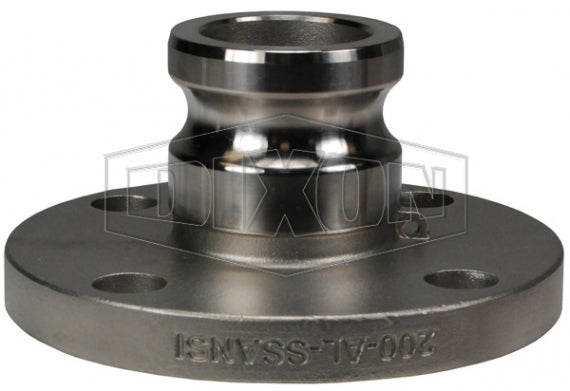

200-AL-SSANSI by Dixon Valve | Cam & Groove Flange Adapter | 2" Adapter x 150# ANSI Flange | 3/4" Flange Thickness | 316 Stainless Steel

200-AL-SSANSI by Dixon Valve | Cam & Groove Flange Adapter | 2" Adapter x 150# ANSI Flange | 3/4" Flange Thickness | 316 Stainless Steel

Sale price$192.04

Dixon Valve
Cam & Groove Flange Adapter | Adapter x 150# ANSI Flange

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–19 $180.52
20–59 $163.23
60+ $144.03
Discounts applied in cart/checkout.

Product Data:

MAWP:

250

Shape:

Straight

Ends Configuration:
  • 2in Male Cam & Groove
  • 150# ANSI Flange
Features:
  • Global product made to Dixon® specifications.
  • Flange has raised face.
  • Flanges are designed to mate with #150 ANSI flange.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
  • Pressure rating is based on the seal of the mating part.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
Part Number Material Size Flange Thickness Max. Operating Pressure
200-AL-SSANSI 316 Stainless Steel 2" 3/4" 250 PSI
300-AL-SSANSI 316 Stainless Steel 3" 15/16" 125 PSI

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
