SAE 100R12 — Four Spiral, Super Abrasion Resistant

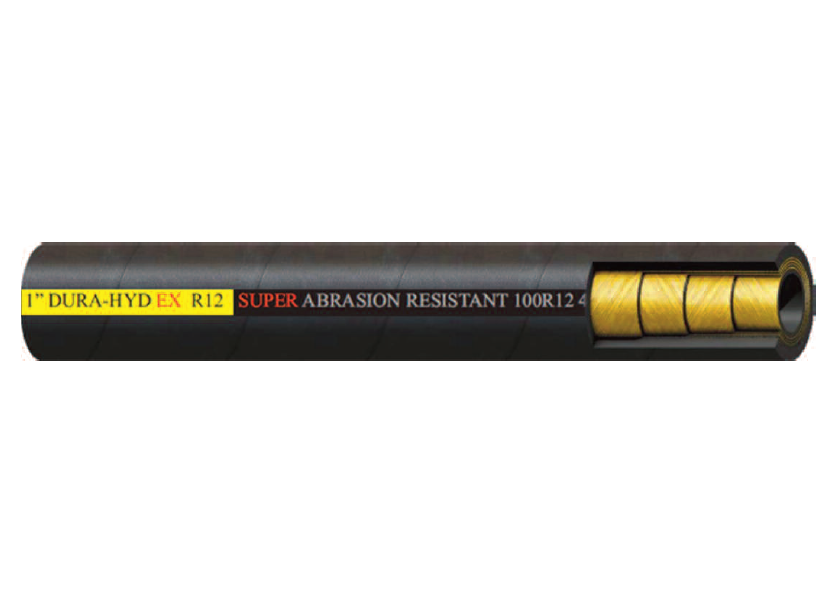

Dura-Hyd EX Four Spiral High Pressure Hydraulic Hose
Four-spiral SAE 100R12 hose with a flame resistant bi-layer cover engineered for severe external abrasion — for high pressure circuits on equipment that drags and rubs.
1
What is this hose used for?
- High Pressure Hydraulics
- Industrial
- Agricultural
2
What are the key specifications?
SAE Rating
SAE 100R12
Cover
Flame Resistant Bi-Layer, SUPER Abrasion Resistant, MSHA
Reinforcement
4 High Tensile Steel Spirals
Temperature
-40°F to +250°F (-40°C to +121°C)
3
What are the main product features?
- Bi-layer SUPER abrasion resistant cover — many times the cover life of a standard R12.
- Four high tensile steel spirals — full SAE 100R12 pressure and impulse capability.
- Flame resistant, MSHA — approved for mining service.
- +250°F service temperature — suited to hot hydraulic systems.
4
Which sizes are available?
| Part Number | Hose ID | Hose OD | Working Pressure (lbs) |
Min. Burst Pressure (lbs) |
Min. Bend Radius | Weight per 100ft | Reel Footage |
|---|---|---|---|---|---|---|---|
| 1/2" DHEXR12 | 1/2" | 0.937" | 4,000 lbs. | 16,000 lbs. | 3.5" | 56 lbs. | Bulk |
| 3/4" DHEXR12 | 3/4" | 1.208" | 4,000 lbs. | 16,000 lbs. | 4.8" | 95 lbs. | Bulk |
| 1" DHEXR12 | 1" | 1.496" | 4,000 lbs. | 16,000 lbs. | 6" | 131 lbs. | Bulk |
| 1-1/4" DHEXR12 | 1-1/4" | 1.850" | 3,000 lbs. | 12,000 lbs. | 16.5" | 194 lbs. | Bulk |
| 1-1/2" DHEXR12 | 1-1/2" | 2.106" | 2,500 lbs. | 10,000 lbs. | 20" | 229 lbs. | Bulk |
| 2" DHEXR12 | 2" | 2.626" | 2,500 lbs. | 10,000 lbs. | 25" | 317 lbs. | Bulk |
Sold as bulk hose by the reel or coil. Reel and coil footage for each size is listed in the size chart above; cut lengths and hose assemblies are available — contact us for pricing.
Additional Product Data:
Series:
Color(s):
Dash Size:
Internal Diameter:
Outer Diameter:
MAWP:
2500
Specifications and Approvals:
Compatible Series:
