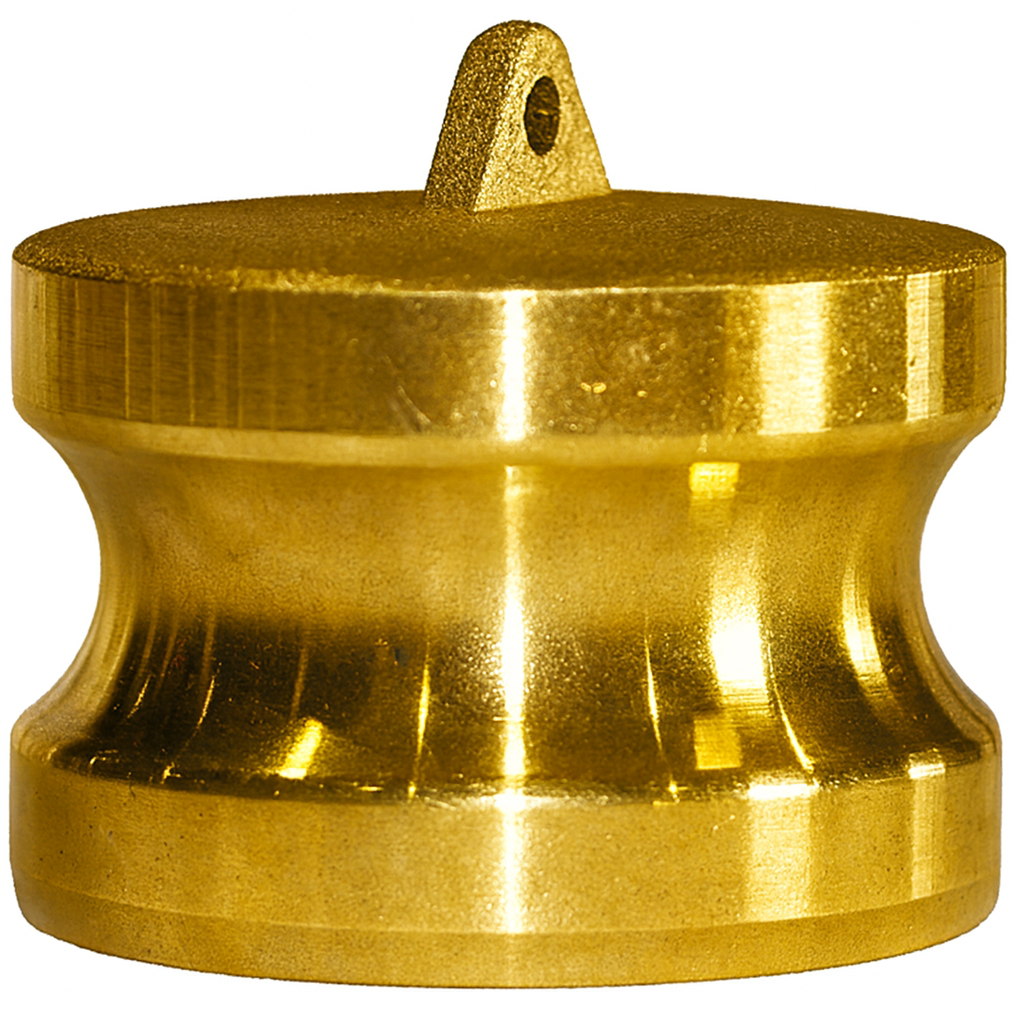

2.5-DP-BRASS by Texcel | CAM & GROOVE COUPLING LINE | 2-1/2" Dust Plug | Brass
Texcel
CAM & GROOVE COUPLING LINE Series | Type Dust Plug
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $27.25 |
| 40–79 | $24.64 |
| 80+ | $21.74 |
Discounts applied in cart/checkout.
Product Data:
Series:
Cam & Groove Type:
Type DP
Ends Configuration:
Material(s):
| Description | ||
|---|---|---|
| Dust plugs are the solution to seal a hose assembly when it is not under pressure during transfer or non-use. The aluminum constructed dust plug is compatible with type C & D. Also available in stainless steel and brass. |
| Hose Diameter | Part Number | Lbs./Each |
|---|---|---|
| 3/4" | .75-DP-ALUM | 0.07 lbs |
| 1" | 1.0-DP-ALUM | 0.11 lbs |
| 1-1/4" | 1.25-DP-ALUM | 0.22 lbs |
| 1-1/2" | 1.5-DP-ALUM | 0.25 lbs |
| 2" | 2.0-DP-ALUM | 0.35 lbs |
| 2-1/2" | 2.5-DP-ALUM | 0.41 lbs |
| 3" | 3.0-DP-ALUM | 0.69 lbs |
| 4" | 4.0-DP-ALUM | 1.29 lbs |
| 6" | 6.0-DP-ALUM | 2.36 lbs |
| 8" | 8.0-DP-ALUM | 6.14 lbs |
| 3/4" | .75-DP-BRASS | 0.17 lbs |
| 1" | 1.0-DP-BRASS | 0.30 lbs |
| 1-1/4" | 1.25-DP-BRASS | 0.61 lbs |
| 1-1/2" | 1.5-DP-BRASS | 0.75 lbs |
| 2" | 2.0-DP-BRASS | 1.19 lbs |
| 2-1/2" | 2.5-DP-BRASS | 1.71 lbs |
| 3" | 3.0-DP-BRASS | 2.20 lbs |
| 4" | 4.0-DP-BRASS | 3.67 lbs |
| 3/4" | .75-DP-SS | 0.16 lbs |
| 1" | 1.0-DP-SS | 0.25 lbs |
| 1-1/2" | 1.5-DP-SS | 0.66 lbs |
| 2" | 2.0-DP-SS | 1.05 lbs |
| 2-1/2" | 2.5-DP-SS | 1.66 lbs |
| 4" | 4.0-DP-SS | 3.55 lbs |
| 5" | 5.0-DP-SS | 4.25 lbs |
| 6" | 6.0-DP-SS | 5.55 lbs |
| 1-1/2" | 1.5-DP-CS | N/A |
| 2" | 2.0-DP-CS | N/A |
| 3" | 3.0-DP-CS | N/A |
| 4" | 4.0-DP-CS | N/A |
