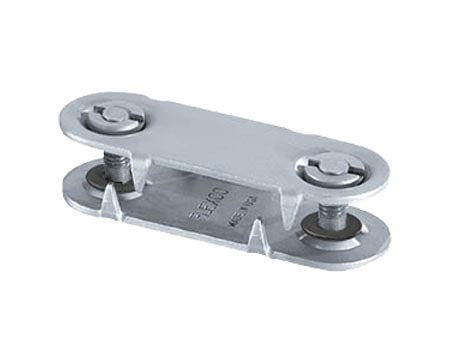

2-1/2 Steel Flexco Bolt Fasteners - 20007 - Box of 10

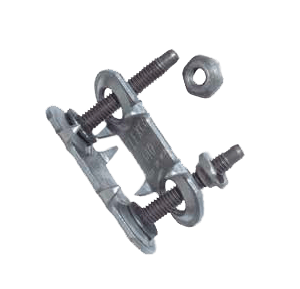

2-1/2 by Flexco | #20007 | Bolt Fasteners | Steel | Box of 10
Flexco

2-1/2 by Flexco | #20007 | Bolt Fasteners | Steel | Box of 10

Sale price$151.72
Flexco Bolt Solid Plate Fastening System - Box of 10 Pieces
FREE SHIPPING DOMESTICALLY!

Package Quantity: 10 EA

In stock

Product Data:

Material(s):
  • Steel
Applicable Belt Thickness:
  • 3/4in to 1in
Applications:
  • Sand
  • Gravel
  • Crushed Stone
  • Grain
  • Coal
  • Cement
  • Salt
Overview:
  • High strength is the result of superior design and plate compression on both the top and bottom sides of the belt. High tensile strength bolts compress top and bottom plates to distribute splice tension evenly across the entire width of each fastener plate. For added strength and pullout resistance, specially formed teeth penetrate deep into the belt carcass - without damaging carcass fibers.
Installation:
  • Field-proven templets, punches, and boring tools make it easy to quickly and accurately prepare belts for fastener installation. Fasteners are easily installed on-site using portable hand tools or power tools. Our exclusive piloted bolts also contribute to faster installation.
Note:
  • Each Quick-Fit "E" box contains 25 complete fastener sets. A set consists of a top plate, a bottom plate, two nuts, and two bolts.
Part Number Belt
Thickness		 Mechanical
Fastener Rating
(P.I.W.)		 Minimum
Pulley Diameter
(in.)
Steel
1E 3/16" - 7/16" 150 P.I.W. 12"
140E 3/16" - 7/16" 225 P.I.W. 14"
190E 5/16" - 9/16" 375 P.I.W. 18"
1-1/2E 7/16" - 11/16" 300 P.I.W. 18"
2E 9/16" - 13/16" 440 P.I.W. 30"
2-1/4E 9/16" - 1-3/16" 620 P.I.W. 36"
2-1/2 3/4" - 1" 450 P.I.W. 42"
3 15/16 and Over 560 P.I.W. 48"
300 Stainless Steel
140ES 3/16" - 7/16" 225 P.I.W. 14"
190ES 5/16" - 9/16" 375 P.I.W. 18"
1-1/2ES 7/16" - 11/16" 300 P.I.W. 18"
2ES 9/16" - 13/16" 440 P.I.W. 30"
2-1/4ES 9/16" - 1-3/16" 620 P.I.W. 36"
MegAlloy® Top Plates Balance Steel
140EMA 3/16" - 7/16" 225 P.I.W. 14"
190EMA 5/16" - 9/16" 375 P.I.W. 18"
1-1/2EMA 7/16" - 11/16" 300 P.I.W. 18"
2EMA 9/16" - 13/16" 440 P.I.W. 30"
2-1/4EMA 9/16" - 1-3/16" 620 P.I.W. 36"
MegAlloy® Top & Bottom Plates, Steel, Bolts & Nuts
140EMAP 3/16" - 7/16" 225 P.I.W. 14"
190EMAP 5/16" - 9/16" 375 P.I.W. 18"
1-1/2EMAP 7/16" - 11/16" 300 P.I.W. 18"
2EMAP 9/16" - 13/16" 440 P.I.W. 30"
2-1/4EMAP 9/16" - 1-3/16" 620 P.I.W. 36"
Everdur
140EE 3/16" - 7/16" 225 P.I.W. 14"
190EE 5/16" - 9/16" 375 P.I.W. 18"
1-1/2EE 7/16" - 11/16" 300 P.I.W. 18"
2EE 9/16" - 13/16" 440 P.I.W. 30"
2-1/4EE 9/16" - 1-3/16" 620 P.I.W. 36"
Stainless (Type 300) top plates, balance steel.
140EST 3/16" - 7/16" 225 P.I.W. 14"
190EST 5/16" - 9/16" 375 P.I.W. 18"
1-1/2EST 7/16" - 11/16" 300 P.I.W. 18"
2EST 9/16" - 13/16" 440 P.I.W. 30"
2-1/4EST 9/16" - 1-3/16" 620 P.I.W. 36"
1/8" rubber covered top plates, balance steel.
2-1/4ERCT 9/16" - 1-3/16" 620 P.I.W. 36"

Flexco

From its inception, Flexco has focused on just one thing, maximising belt conveyor productivity. Whether you are a small farm in the Midwestern United States, or a large mine in eastern Europe, or a global parcel handling operation with facilities around the world, we are focused on becoming your number one resource for products and services that maximise your belt conveyor uptime, productivity, and safety.
