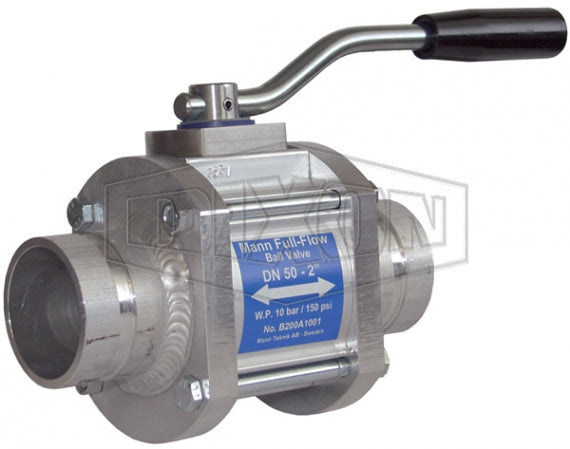

1WAYBV200VIC by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 2" Grooved End x 2" Grooved End | Aluminum
Dixon

1WAYBV200VIC by Dixon Valve MannTek | Full Flow Ball Valve | One-Way | 2" Grooved End x 2" Grooved End | Aluminum

Contact for Price

If you are interested in this item please fill out the Contact Form below.

Contact Us

How can we help you?

Price, availability, and details—available upon request.

Features:
  • Two ports - one inlet and one outlet.
  • High flow rate; low pressure drop.
  • Spindle can be disassembled even when ball valve is installed.
Materials:
  • Wetted parts are aluminum and stainless steel.
  • FPM seals.
Specifications:
  • Working pressure: 150 PSI at ambient temperature 70°F (21°C).
  • Standard valve ports - female NPT, socket weld for Schedule 40 pipe and grooved.
Part Number End Type Size Bore
1WAYBV200 Female NPT x Female NPT 2" -
1WAYBV300 Female NPT x Female NPT 3" -
1WAYBV400 Female NPT x Female NPT 4" -
1WAYBV200SW Socket Weld End x Socket Weld End 2" 2.390"
1WAYBV300SW Socket Weld End x Socket Weld End 3" 3.530"
1WAYBV200VIC Grooved End x Grooved End 2" -
1WAYBV300VIC Grooved End x Grooved End 3" -

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
