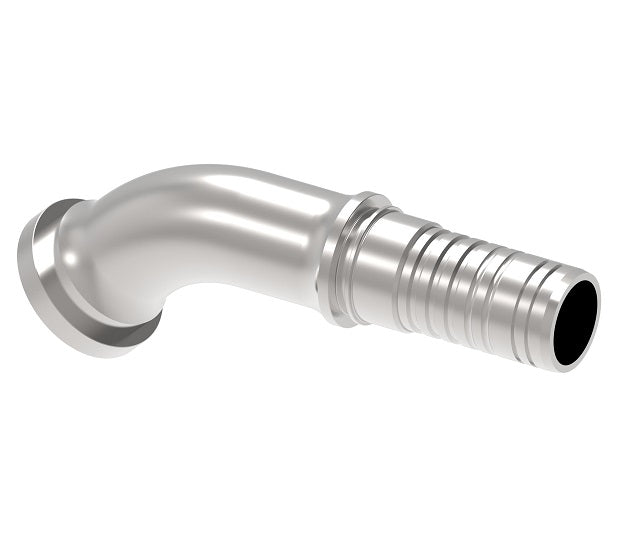

1W20FHA20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four & Six Spiral Hose | 45° Elbow | -20 SAE Code 62 Flange x -20 Hose Barb | Steel
1W20FHA20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four & Six Spiral Hose | 45° Elbow | -20 SAE Code 62 Flange x -20 Hose Barb | Steel
1W20FHA20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four & Six Spiral Hose | 45° Elbow | -20 SAE Code 62 Flange x -20 Hose Barb | Steel

1W20FHA20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Four & Six Spiral Hose | 45° Elbow | -20 SAE Code 62 Flange x -20 Hose Barb | Steel

Sale price$120.00

Aeroquip by Danfoss
SAE Code 62 Flange for Spiral Hose - 45° Elbow
Buy More, Save More!
Quantity Price Each
5–19 $112.80
20–59 $102.00
60+ $90.00
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

45 Degree

Ends Configuration:
  • 1-1/4in Code 62 Flange
  • 1-1/4in Hose Barb
Features:
  • Nipple with wire trap area.
Material:
  • Carbon Steel.
Compatible Hose:
  • DYNAMAX EC850
Part Number
Carbon Steel		 Flange Hose ND Hose Size A
mm		 D
mm		 H
mm		 E
mm		 KØ
mm
1W12FHA12 3/4" 19 -12 130,1mm 78,1mm 27,0mm 15,1mm 41,3mm
1W16FHA16 1" 25 -16 160,6mm 94,0mm 32,0mm 19,6mm 47,6mm
1W20FHA20* 1-1/4" 31 -20 190,0mm 115,0mm 39,0mm 25,5mm 54,0mm
1W40FHA40 - - -40 - - - - -

* Assembly with full flange is not possible, use half flanges.

Note: Drawings may differ from actual parts.
