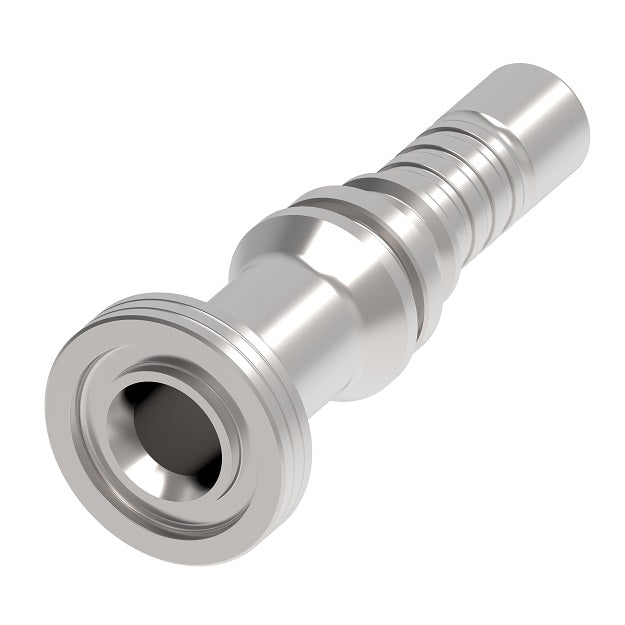

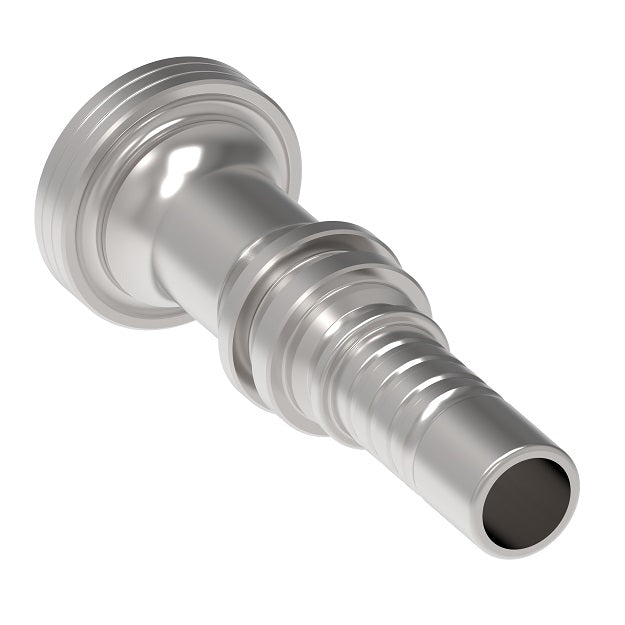

1W20FH20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -20 SAE Code 62 Flange x -20 Hose Barb | Steel
1W20FH20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -20 SAE Code 62 Flange x -20 Hose Barb | Steel
1W20FH20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -20 SAE Code 62 Flange x -20 Hose Barb | Steel

1W20FH20 Aeroquip by Danfoss | SAE Code 62 Flange Nipple for Six Spiral Hose | -20 SAE Code 62 Flange x -20 Hose Barb | Steel

Sale price$82.64

Aeroquip by Danfoss
SAE Code 62 Flange for Spiral Hose - Straight
Buy More, Save More!
Quantity Price Each
10–39 $77.68
40–79 $70.24
80+ $61.98
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

Straight

Ends Configuration:
  • 1-1/4in Code 62 Flange
  • 1-1/4in Hose Barb
Features:
  • Nipple with wire trap area.
Material:
  • Carbon Steel.
Compatible Hose:
  • DYNAMAX EC850
Part Number
Carbon Steel		 Flange Hose ND Hose Size A
mm		 D
mm		 E
mm		 KØ
mm
1W12FH12 3/4" 19 -12 110,6mm 58,6mm 15,1mm 41,3mm
1W16FH16 1" 25 -16 134,0mm 67,4mm 19,6mm 47,6mm
1W20FH20* 1-1/4" 31 -20 145,2mm 70,3mm 25,5mm 54,0mm
1W40FH40 - - -40 - - - -

* Assembly with full flange is not possible, use half flanges.

Note: Drawings may differ from actual parts.

.
