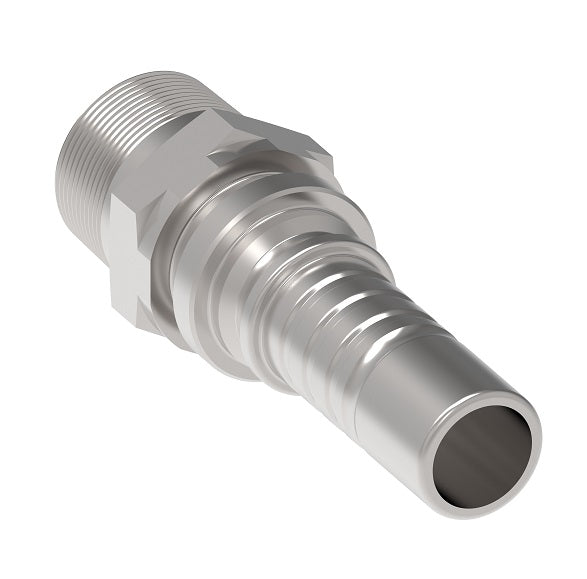

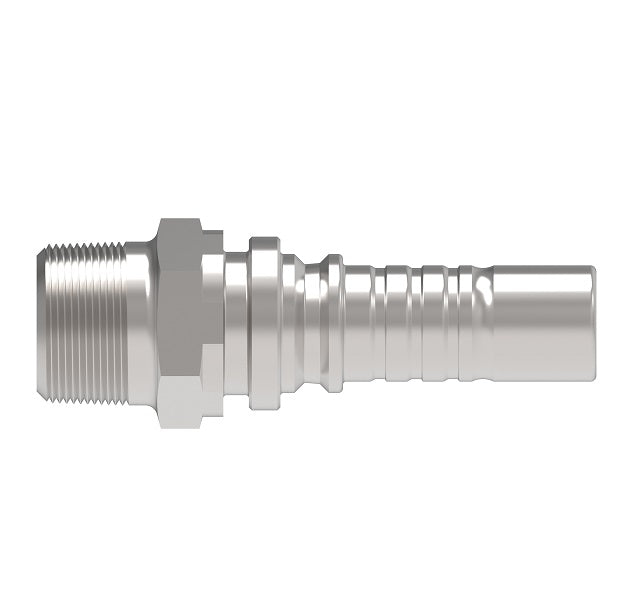

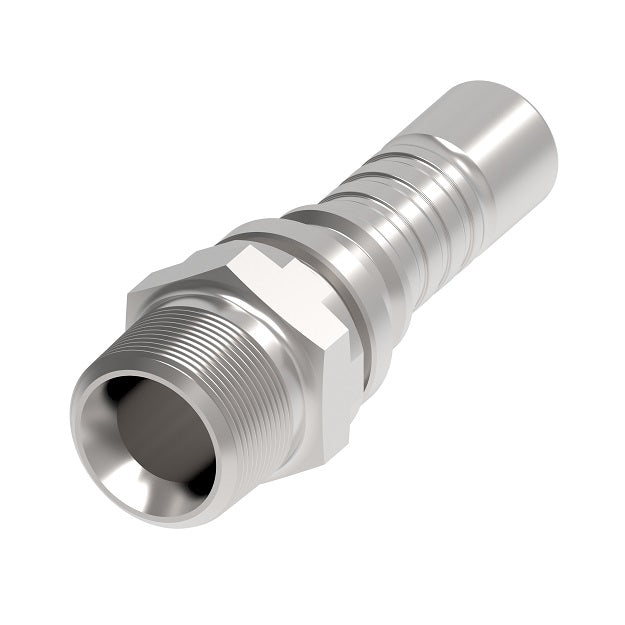

1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel
1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel
1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel

1W12MP12 Aeroquip by Danfoss | Male Pipe Crimp Fitting for Four Spiral Hydraulic Hose | -12 Male NPTF x -12 Hose Barb | Steel

Sale price$39.54

Aeroquip by Danfoss
Crimp Fitting for Four Spiral Hydraulic Hose - Male Pipe - Straight
Buy More, Save More!
Quantity Price Each
10ā€“39 $37.17
40ā€“79 $33.61
80+ $29.66
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
Shape:

Straight

Ends Configuration:
  • 3/4in Male NPTF
  • 3/4in Hose Barb
Features:
  • Nipple with wire trap area.
Material:
  • Carbon Steel.
Compatible Hose:
  • EC910
Steel
Part Number 		Dash Size DN Hose Dash Size Thread A D EƘ Hex 1
1W12MP12 -12 19 -12 3/4-14 3.63" 1.58" 0.59" 30mm
1W16MP16 -16 25 -16 1-11-1/2 4.51" 1.88" 0.77" 36mm

* Requires separate installation of 2 ea. p/n 05.071-27.30x2.40 O-rings (must be ordered separately). O-rings must be installed with PAG oil (only) prior to crimping.

Note: Drawings may differ from actual parts.

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
