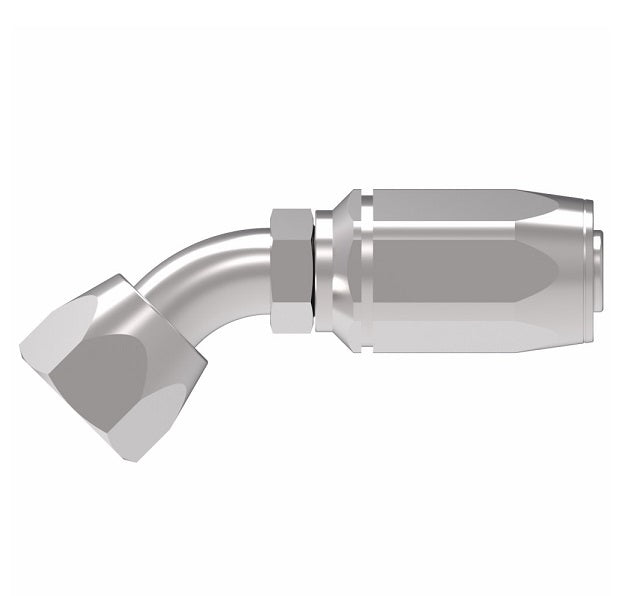

1RA12FJA12 Weatherhead by Danfoss | Female 37° JIC Swivel 45° Elbow Field Attachable Fitting for 1 Wire Braided Hose | 1R Series | Complete Fitting | -12 Female 37° JIC Swivel x -12 Reusable Hose End | Steel
Weatherhead by Danfoss
Field Attachable Fitting for 1 Wire Braided Hose - 1R series - Female 37° JIC Swivel - 45° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $113.80 |
| 20–59 | $102.90 |
| 60+ | $90.80 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Features: | |||
|---|---|---|---|
|
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
Component Part Numbers |
|||||||||
| Complete Fitting Part Number |
Nipple Assembly Part Number Steel |
Reusable Socket Part Number |
Thread Size | Hose Size | A | D | EØ | H | |
| 1RA4FJA4 | 185287-4S | 1RA4 | 7/16-20 | -04 | 2.37" | 1.33" | 0.17" | 0.33" | |
| 1RA6FJA6 | 185287-6S | 1RA6 | 9/16-18 | -06 | 2.75" | 1.62" | 0.31" | 0.39" | |
| 1RA8FJA8 | 185287-8S | 1RA8 | 3/4-16 | -08 | 3.24" | 1.77" | 0.39" | 0.55" | |
| - | 185287-10-8S | - | - | -08 | - | - | - | - | |
| - | 185287-10S | - | - | -10 | - | - | - | - | |
| 1RA12FJA12 | 185287-12S | 1RA12 | 1-1/16-12 | -12 | 4.09" | 2.49" | 0.61" | 0.78" | |
| 1RA16FJA16 | - | 1RA16 | 1-5/16-12 | -16 | 4.88" | 2.75" | 0.82" | 1.07" | |
