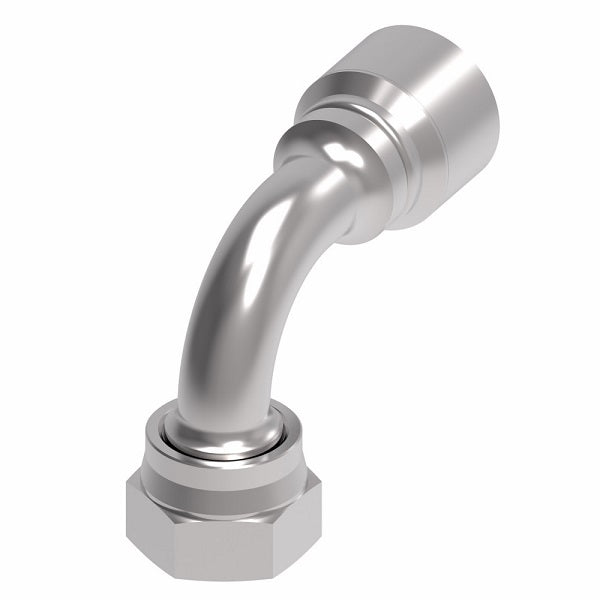

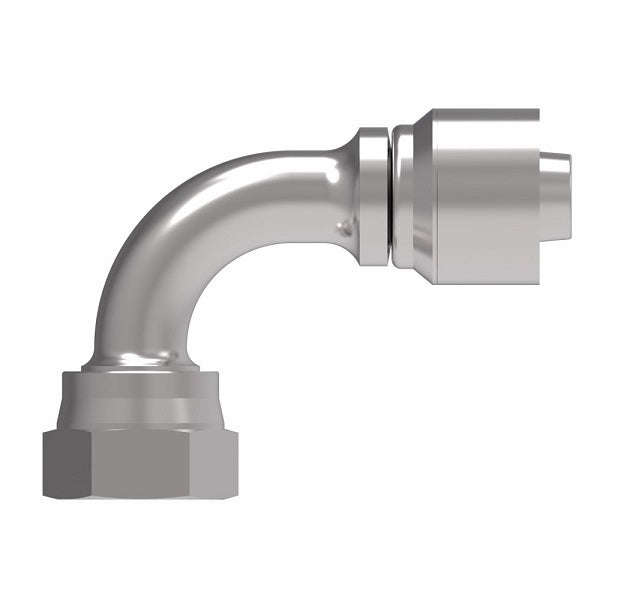

1GA20FRB16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -20 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire OTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $278.52 |
| 20–59 | $251.86 |
| 60+ | $222.23 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
|
| 1GA4FRB4 | 9/16-18 | -04 | 2.09" | 0.92" | 0.17" | 0.82" | 11/16" | |
| 1GA6FRB6 | 11/16-16 | -06 | 2.34" | 1.34" | 0.26" | 0.90" | 13/16" | |
| 1GA8FRB8 | 13/16-16 | -08 | 2.84" | 1.67" | 0.36" | 1.15" | 15/16" | |
| 1GA10FRB10 | 1-14 | -10 | 3.07" | 1.91" | 0.45" | 1.27" | 1-1/8" | |
| 1GA12FRB12 | 1-3/16-12 | -12 | 3.49" | 2.30" | 0.55" | 1.88" | 1-3/8" | |
| 1GA16FRB12 | 1-7/16-12 | -12 | 4.04" | 2.85" | 0.61" | 2.21" | 1-5/8" | |
| 1GA16FRB16 | 1-7/16-12 | -16 | 4.22" | 2.87" | 0.81" | 2.21" | 1-5/8" | |
| 1GA20FRB16 | 1-11/16-12 | -16 | 4.85" | 3.50" | 0.81" | 2.51" | 1-7/8" | |
| 1GA20FRB20 | 1-11/16-12 | -20 | 5.30" | 3.57" | 1.02" | 2.51" | 1-7/8" | |
| 1GA24FRB24 | 2-12 | -24 | 4.63" | 2.81" | 1.26" | 2.70" | 2-1/4" | |
