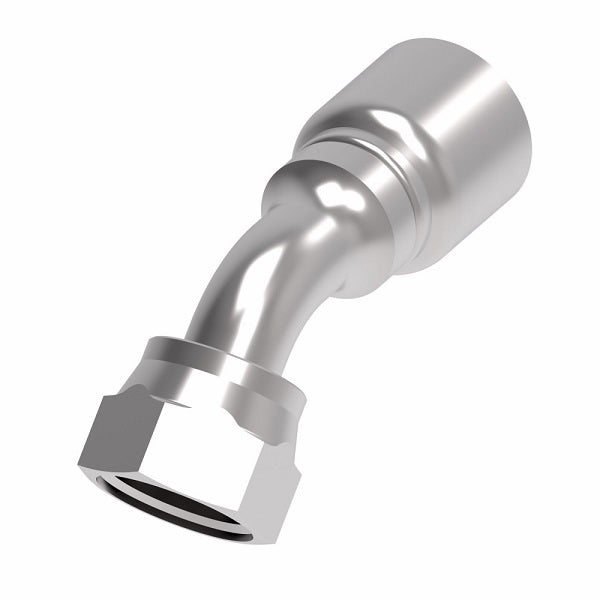

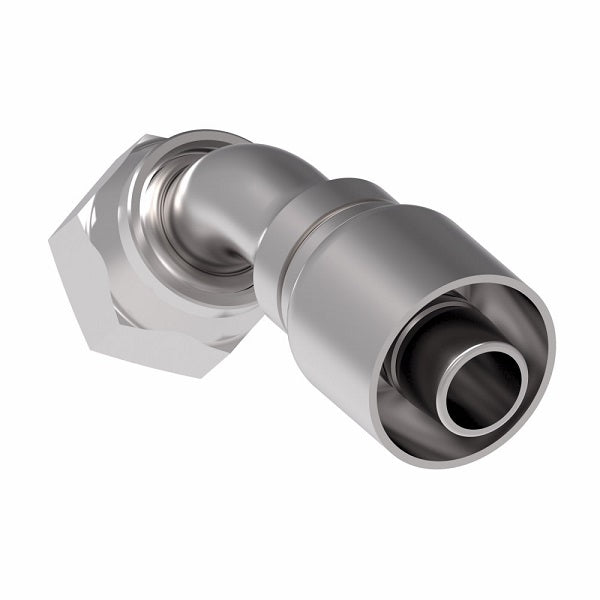

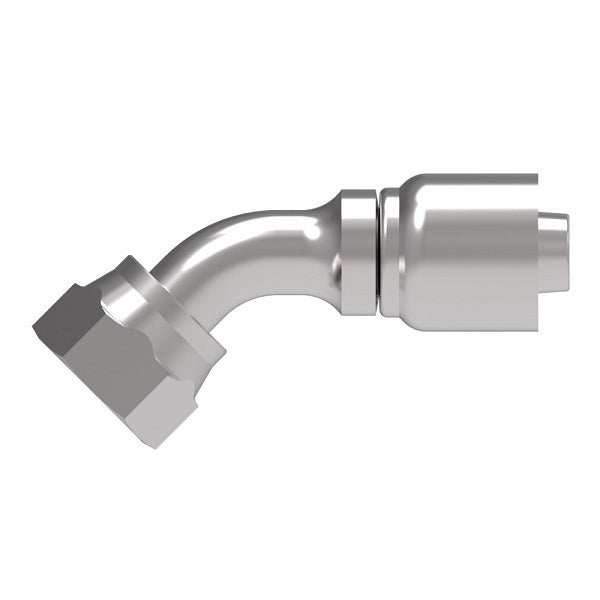

1GA16FRA16 Aeroquip by Danfoss | 1 & 2 Wire OTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1GA6FRA6 | 11/16-16 | -06 | 2.36" | 1.43" | 0.24" | 0.43" | 13/16" |
| 1GA8FRA8 | 13/16-16 | -08 | 3.00" | 1.79" | 0.33" | 0.59" | 15/16" |
| 1GA10FRA8 | 1-14 | -08 | 3.08" | 2.01" | 0.38" | 0.65" | 1-1/8" |
| 1GA10FRA10 | 1-14 | -10 | 3.18" | 2.02" | 0.44" | 0.65" | 1-1/8" |
| 1GA12FRA12 | 1-3/16-12 | -12 | 3.57" | 2.38" | 0.55" | 0.83" | 1-3/8" |
| 1GA16FRA12 | 1-7/16-12 | -12 | 4.04" | 2.85" | 0.61" | 0.94" | 1-5/8" |
| 1GA16FRA16 | 1-7/16-12 | -16 | 4.23" | 2.88" | 0.81" | 0.94" | 1-5/8" |
| 1GA20FRA20 | 1-11/16-12 | -20 | 5.10" | 3.37" | 1.02" | 1.00" | 1-7/8" |
| 1GA20FRA24 | 1-11/16-12 | -24 | - | - | - | - | - |
| 1GA24FRA24 | 2-12 | -24 | 4.54" | 2.71" | 1.26" | 1.07" | 2-1/4" |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
