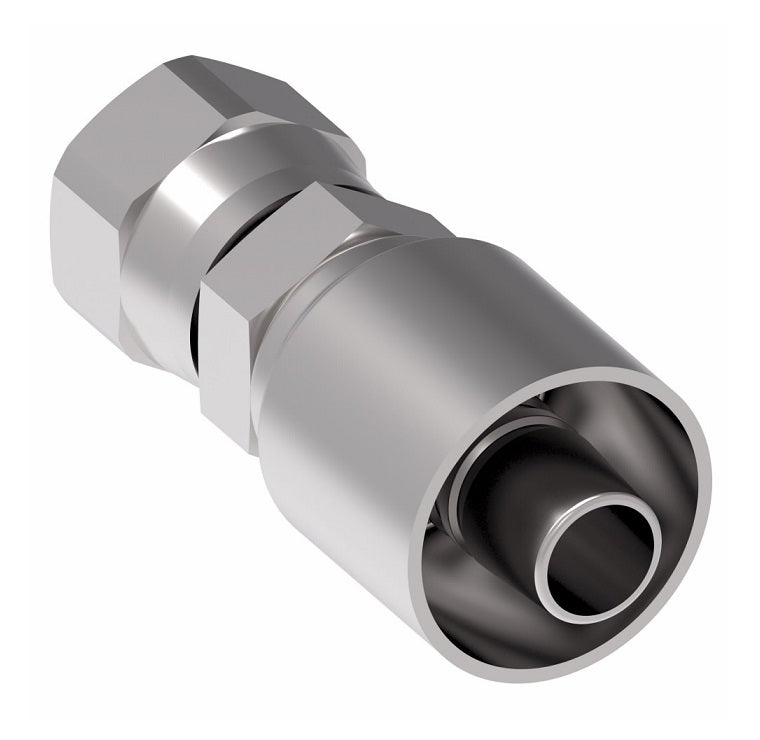

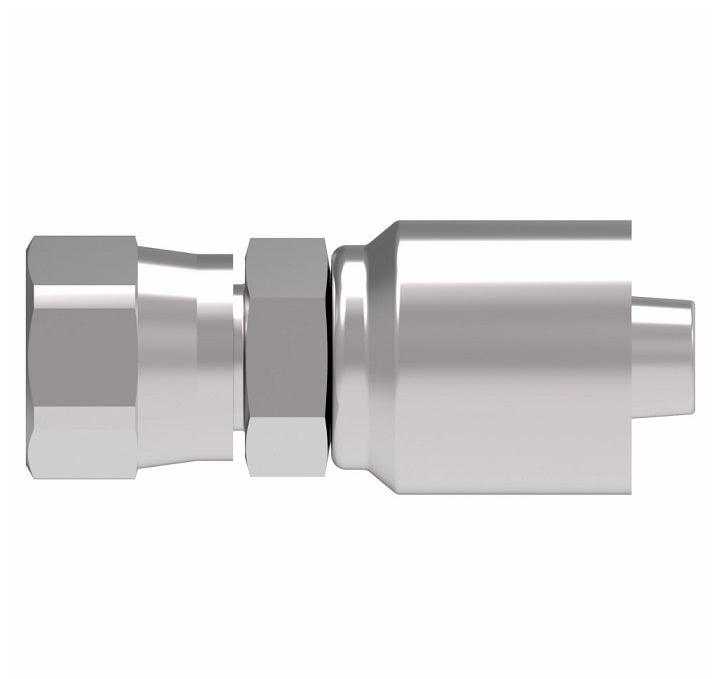

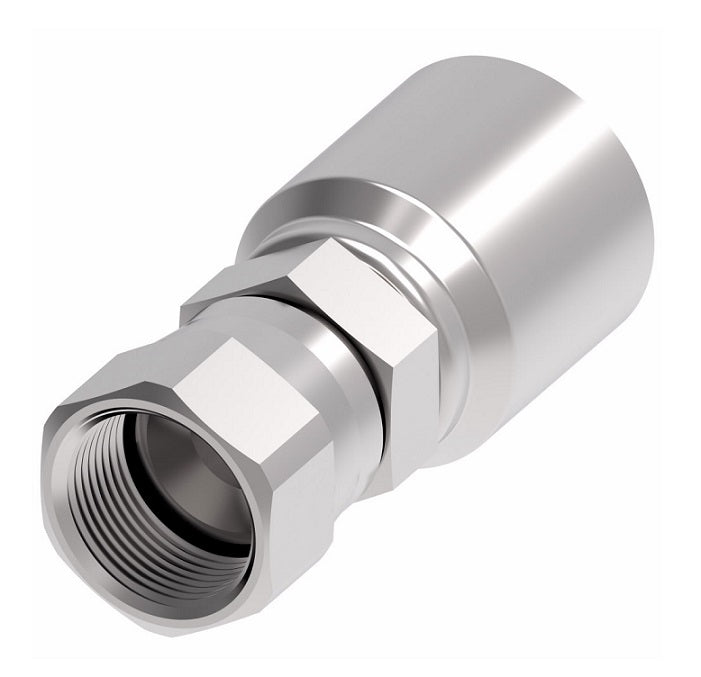

1GA12FJ12 Aeroquip by Danfoss | 1 & 2 Wire OTC Female JIC 37° Swivel (FJ) Crimp Fitting | -12 Female JIC 37° Swivel x -12 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire Global OTC Female JIC 37° Swivel Crimp Fitting (FJ) - Straight
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $20.44 |
| 40–79 | $18.48 |
| 80+ | $16.31 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
| 1GA4FJ4 | 7/16-20 | -04 | 2.00" | 1.05" | 0.17" | 9/16" | 9/16" |
| 1GA5FJ4 | 1/2-20 | -04 | 1.98" | 1.14" | 0.17" | 5/8" | 9/16" |
| 1GA6FJ4 | 9/16-18 | -04 | 2.03" | 1.11" | 0.17" | 1-1/16" | 9/16" |
| 1GA5FJ6 | 1/2-20 | -06 | 2.24" | 1.24" | 0.23" | 5/8" | 11/16" |
| 1GA6FJ6 | 9/16-18 | -06 | 2.28" | 1.28" | 0.26" | 1-1/16" | 11/16" |
| 1GA8FJ6 | 3/4-16 | -06 | 2.31" | 1.31" | 0.26" | 7/8" | 11/16" |
| 1GA8FJ8 | 3/4-16 | -08 | 2.63" | 1.46" | 0.38" | 7/8" | 13/16" |
| 1GA10FJ8 | 7/8-14 | -08 | 2.64" | 1.47" | 0.38" | 1" | 7/8" |
| 1GA12FJ8 | 1-1/16-12 | -08 | 2.73" | 1.56" | 0.38" | 1-1/4" | 1" |
| 1GA10FJ10 | 7/8-14 | -10 | 2.77" | 1.62" | 0.50" | 1" | 15/16" |
| 1GA12FJ10 | 1-1/16-12 | -10 | 2.72" | 1.57" | 0.50" | 1-1/4" | 1" |
| 1GA10FJ12 | 7/8-14 | -12 | 2.81" | 1.63" | 0.48" | 1" | 1-1/8" |
| 1GA12FJ12 | 1-1/16-12 | -12 | 2.84" | 1.65" | 0.61" | 1-1/4" | 1-1/8" |
| 1GA16FJ12 | 1-5/16-12 | -12 | 2.91" | 1.72" | 0.61" | 1-1/2" | 1-1/4" |
| 1GA16FJ16 | 1-5/16-12 | -16 | 3.29" | 1.93" | 0.81" | 1-1/2" | 1-3/8" |
| 1GA20FJ16 | 1-5/8-12 | -16 | 3.17" | 1.81" | 0.81" | 2" | - |
| 1GA16FJ20 | 1-5/16-12 | -20 | 3.46" | 1.73" | 0.85" | 1-1/2" | - |
| 1AA20FJ20 | 1-5/8-12 | -20 | 3.61" | 1.88" | 1.05" | 2" | - |
| 1GA20FJ24 | - | -24 | - | - | - | - | - |
| 1AA24FJ24 | 1-7/8-12 | -24 | 3.90" | 2.07" | 1.26" | 2-1/4" | - |
| 1AA32FJ32 | 2-1/2-12 | -32 | 4.34" | 2.39" | 1.75" | 2-7/8" | - |
