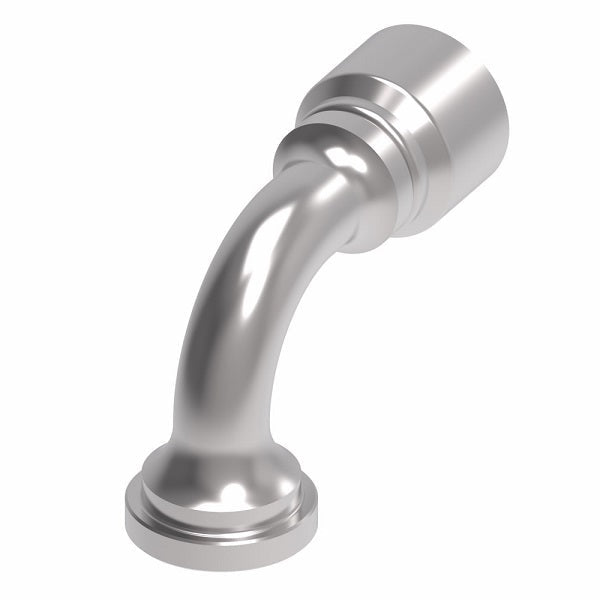

1G20FLB24 Aeroquip by Danfoss | 1 & 2 Wire OTC SAE Code 61 Split Flange 90° Elbow (FLB) Crimp Fitting | -20 Code 61 Split Flange x -24 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire OTC SAE Code 61 Split Flange Crimp Fitting (FLB) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $203.81 |
| 20–59 | $184.30 |
| 60+ | $162.62 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thd. Flange Head Diameter KØ |
Hose Size | A | D | EØ | H | |
| 1G16FLB16 | 1.75" | -16 | 4.22" | 2.86" | 0.76" | 2.38" | |
| 1G20FLB16 | 2.00" | -16 | 4.85" | 3.50" | 0.76" | 2.62" | |
| 1G16FLB20 | 1.75" | -20 | 4.66" | 2.93" | 0.76" | 2.38" | |
| 1G20FLB20 | 2.00" | -20 | 5.30" | 3.57" | 1.01" | 2.62" | |
| 1G24FLB20 | 2.37" | -20 | 6.04" | 4.31" | 1.01" | 3.12" | |
| 1G20FLB24 | 2.00" | -24 | 5.43" | 3.61" | 1.01" | 2.62" | |
| 1G24FLB24 | 2.37" | -24 | 6.18" | 4.35" | 1.26" | 3.12" | |
| 1G24FLB32 | - | -32 | - | - | - | - | |
| 1G32FLB24 | 2.81" | -24 | 7.28" | 5.45" | 1.26" | 4.50" | |
| 1G32FLB24.080 | - | -24 | - | - | - | - | |
| 1G32FLB32 | 2.81" | -32 | 7.47" | 5.49" | 1.75" | 4.50" | |
| 1G32FLB32.082 | - | -32 | - | - | - | - | |
| 1G40FLB32 | 3.31 | -32 | 7.47" | 5.49" | 1.75" | 2.56" | |
