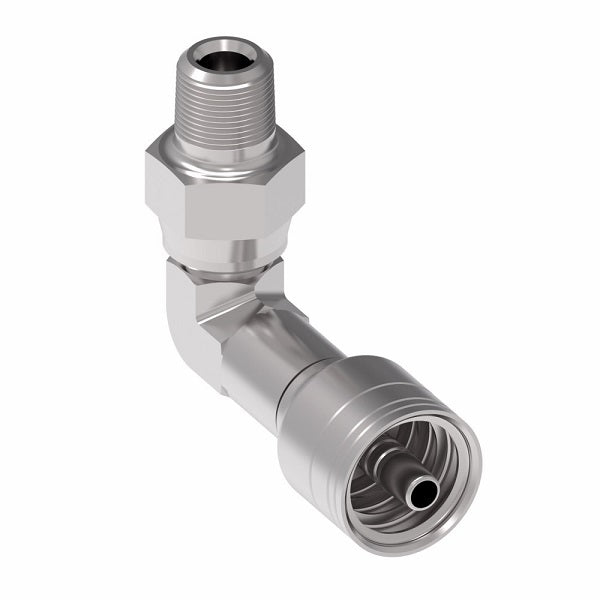

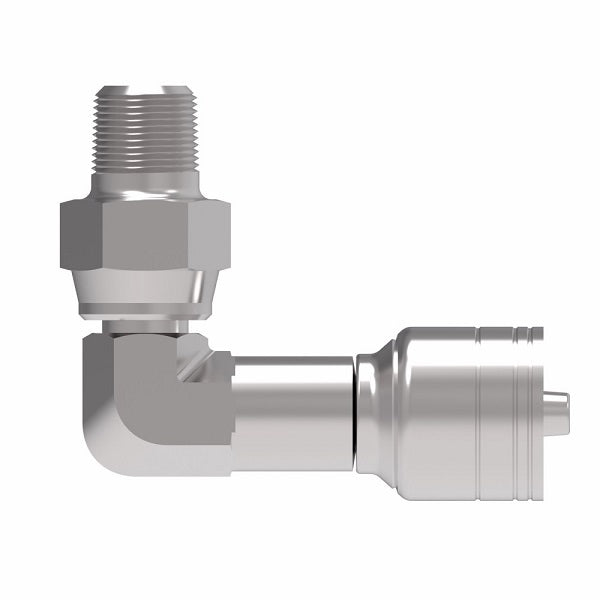

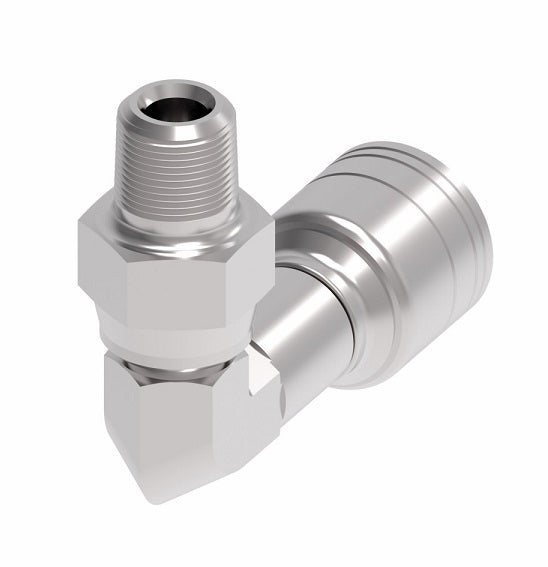

1AA8PSB8 Aeroquip by Danfoss | Male Pipe Swivel 90° Elbow (PSB) TTC Crimp Fitting | -08 Male NPTF Swivel x -08 Hose Barb | Steel
Aeroquip® by Danfoss
Male Pipe Swivel (PSB) TTC Crimp Fitting - 90° Elbow
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 20–49 | $23.06 |
| 50–99 | $21.84 |
| 100+ | $19.42 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Dash Size | A | Hose Cut-OffFactor (D) | EØ | Hex 2 |
Hex 1 |
B |
| 1AA4PSB4 | 1/4-18 | -04 | 2.15" | 1.23" | 0.17" | 3/4" | 3/4" | 1.81 |
| 1AA4PSB6 | 1/4-18 | -06 | 2.16" | 1.33" | 0.26" | 3/4" | 7/8" | 1.96 |
| 1AA6PSB6 | 3/8-18 | -06 | 2.33" | 1.33" | 0.26" | 3/4" | 7/8" | 1.80 |
| 1AA8PSB8 | 1/2-14 | -08 | 2.68" | 1.51" | 0.38" | 3/4" | 15/16" | 2.05 |
| 1AA12PSB12 | 3/4-14 | -12 | 3.72" | 2.53" | 0.61" | 1-1/4" | 1-3/8" | 2.72 |
