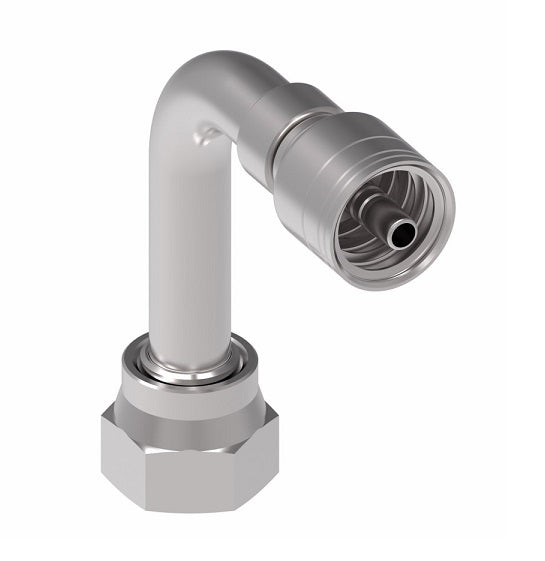

1AA8FRC4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Long Drop Elbow (FRC) Crimp Fitting | -08 Female O-Ring Face Seal Swivel x -04 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC Female ORS Swivel Long Drop Crimp Fitting (FRC) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $144.59 |
| 20–59 | $130.75 |
| 60+ | $115.37 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA4FRC4 | 1AA4FRC4TZ | 9/16-18 | -04 | 2.09" | 0.92" | 0.17" | 1.81" | 11/16" |
| 1AA6FRC4 | - | 11/16-16 | -04 | 2.22" | 1.30" | 0.17" | 2.13" | 13/16" |
| 1AA8FRC4 | - | 13/16-16 | -04 | 2.59" | 1.67" | 0.17" | 2.55" | 15/16" |
| 1AA6FRC6 | - | 11/16-16 | -06 | 2.27" | 1.34" | 0.24" | 2.13" | 13/16" |
| 1AA8FRC6 | - | 13/16-16 | -06 | 2.55" | 1.71" | 0.26" | 2.55" | 15/16" |
| 1AA8FRC8 | - | 13/16-16 | -08 | 2.87" | 1.67" | 0.33" | 2.51" | 15/16" |
| 1AA10FRC8 | - | 1-14 | -08 | 2.98" | 1.91" | 0.38" | 2.76" | 1-1/8" |
| 1AA10FRC10 | - | 1-14 | -10 | 3.08" | 1.91" | 0.44" | 2.76" | 1-1/8" |
| 1AA12FRC12** | - | 1-3/16-12 | -12 | 3.48" | 2.30" | 0.56" | 3.78" | 1-3/8" |
| 1AA16FRC12 | - | 1-7/16-12 | -12 | 4.04" | 2.87" | 0.81" | 4.50" | 1-5/8" |
| 1AA16FRC16*** | - | 1-7/16-12 | -16 | 4.22" | 2.86" | 0.78" | 4.50" | 1-5/8" |
| 1AA20FRC20 | - | 1-11/16-12 | -20 | 5.30" | 3.57" | 1.01" | 5.09" | 1-7/8" |
| 1AA24FRC20 | - | 2-12 | -20 | 4.32" | 2.77" | 1.05" | 5.54" | 2-1/4" |
| 1AA24FRC24 | - | 2-12 | -24 | 4.63" | 2.81" | 1.26" | 5.54" | 2-1/4" |
** The 90º long drop tube elbow configuration meets a 3.5:1 burst, based on 4000 PSI operating pressure.
*** The 90º long drop tube elbow configuration meets a 3.7:1 burst, based on 3000 PSI operating pressure.
