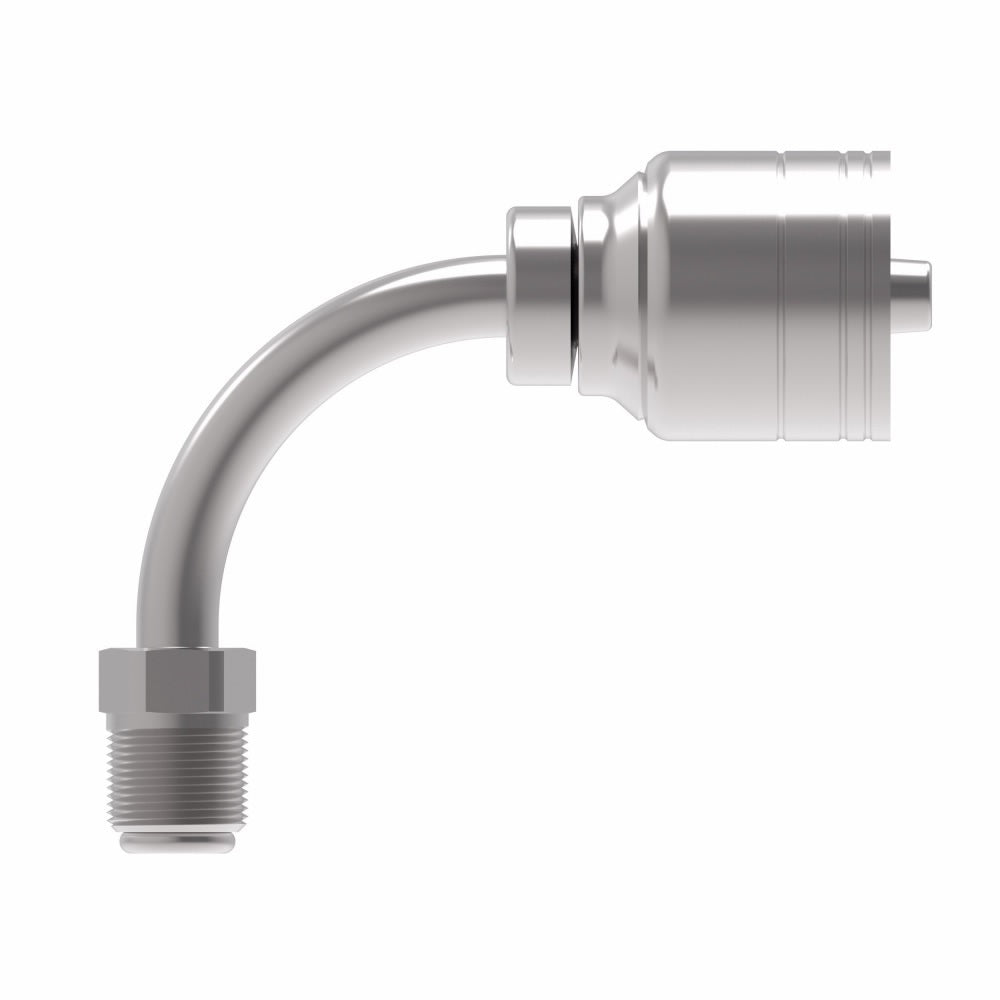

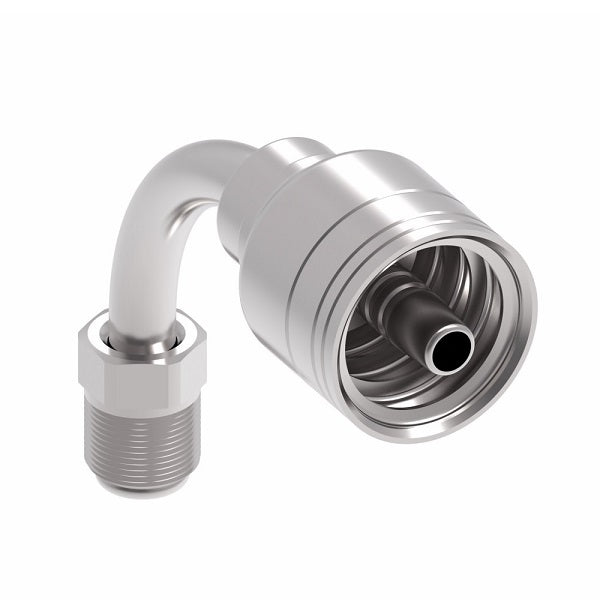

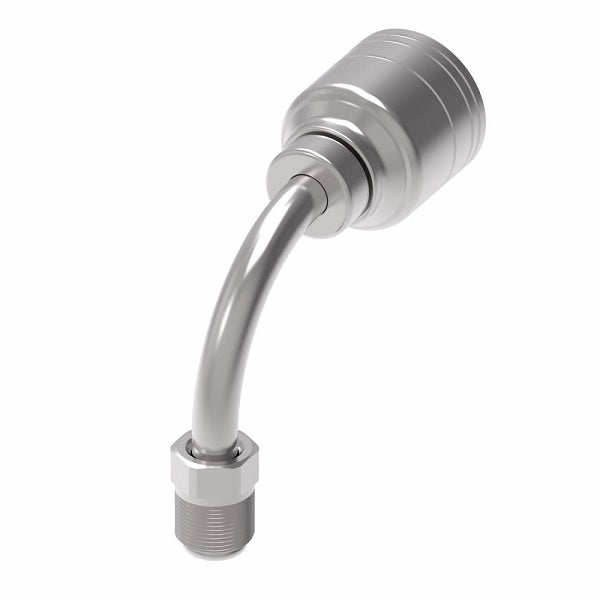

1AA7MFB6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel 90° Elbow (MFB) Crimp Fitting | -07 Male SAE Inverted Flare Swivel x -06 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA3MFB4 | 3/8-24 | -04 | - | - | - | - | - |
| 1AA4MFB4 | 7/16-24 | -04 | 2.29" | 1.37" | 0.17" | 1.69" | 7/16" |
| 1AA5MFB4 | 1/2-20 | -04 | 2.29" | 1.37" | 0.17" | 1.73" | 1/2" |
| 1AA4MFB6 | 7/16-24 | -06 | 2.43" | 1.44" | 0.17" | 1.69" | 7/16" |
| 1AA5MFB6 | 1/2-20 | -06 | 2.51" | 1.51" | 0.24" | 1.73" | 1/2" |
| 1AA6MFB6 | 5/8-18 | -06 | 2.51" | 1.51" | 0.26" | 1.73" | 5/8" |
| 1AA7MFB6 | 11/16-18 | -06 | 2.44" | 1.61" | 0.26" | 1.73" | 11/16" |
| 1AA8MFB8 | 3/4-18 | -08 | 2.73" | 1.56" | 0.38" | 1.75" | 3/4" |
Additional Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
