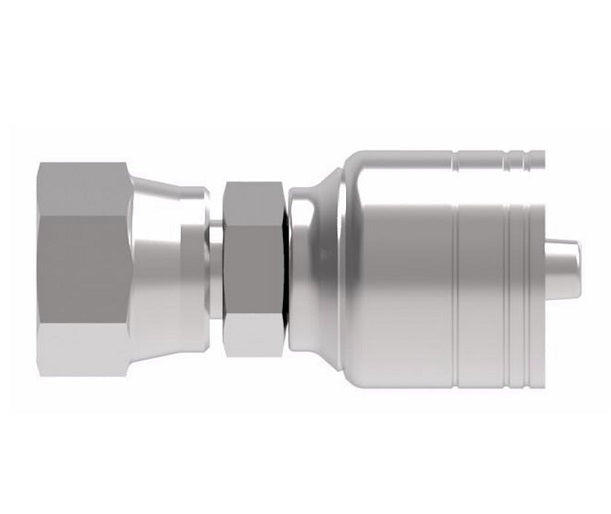

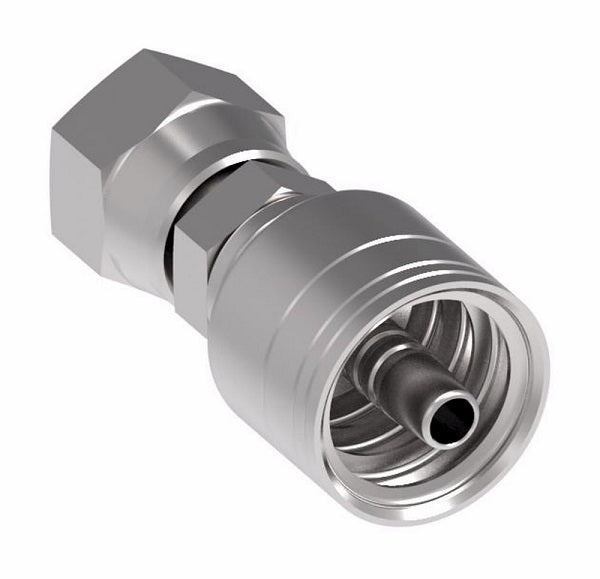

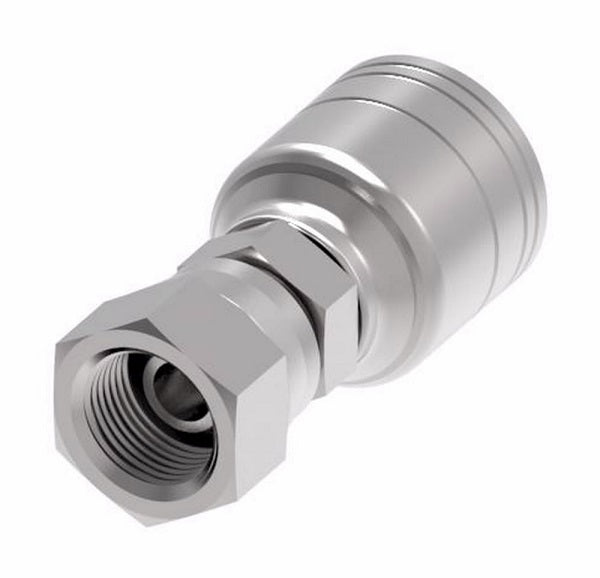

1AA6SP6 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -06 Female NPSM Swivel x -06 Hose Barb | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Dash Size | A | Hose Cut-OffFactor (D) | EØ | Hex 2 |
Hex 1 |
| 1AA4SP4 | 1/4-18 | -04 | 1.88" | 1.09" | 0.17" | 9/16" | 11/16" |
| 1AA6SP6 | 3/8-18 | -06 | 2.04" | 1.20" | 0.26" | 11/16" | 7/8" |
| 1AA8SP8 | 1/2-14 | -08 | 2.40" | 1.41" | 0.38" | 7/8" | 1" |
| 1AA12SP12 | 3/4-14 | -12 | 2.62" | 1.56" | 0.61" | 1-1/8" | 1-1/4" |
| 1AA16SP16 | 1-11-1/2 | -16 | 3.11" | 1.18" | 0.81" | 1-3/8" | 1-1/2" |
| 1AA20SP20 | 1-1/4-11-1/2 | -20 | - | - | - | - | - |
Additional Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
