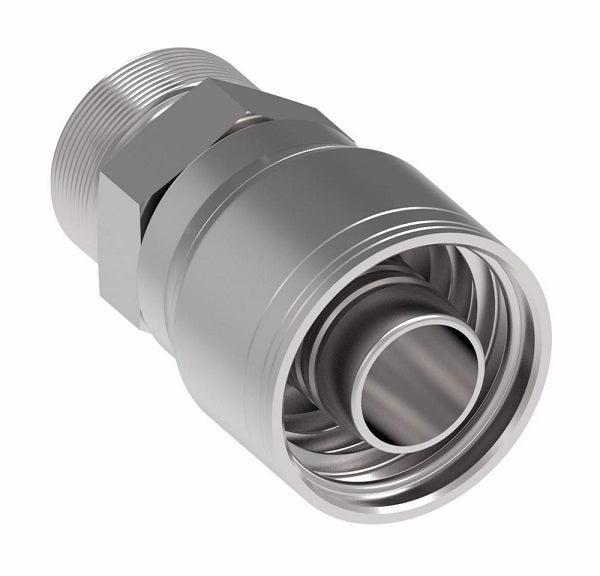

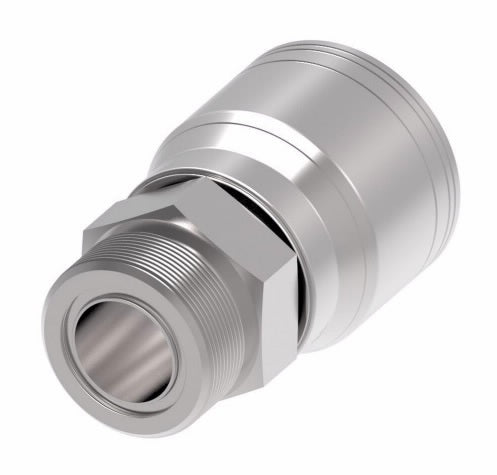

1AA6MR6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male ORS (MR) Crimp Fitting | -06 Male O-Ring Face Seal x -06 Hose Barb | Steel
| Quantity | Price Each |
| 20–49 | $19.49 |
| 50–99 | $18.47 |
| 100+ | $16.42 |
Discounts applied at checkout.
Aeroquip® by Danfoss
1 & 2 Wire TTC Male ORS Crimp Fitting (MR) - Straight
(Formerly Eaton Aeroquip)
Fitting does not include O-Ring.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 2 |
| 1AA4MR4 | 9/16-18 | -04 | 1.78" | 0.86" | 0.17" | 5/8" |
| 1AA6MR4 | 11/16-16 | -04 | - | - | - | - |
| 1AA6MR6 | 11/16-16 | -06 | 2.05" | 1.16" | 0.26" | 3/4" |
| 1AA8MR6 | 13/16-16 | -06 | 1.79" | 0.95" | 0.26" | 7/8" |
| 1AA8MR8 | 13/16-16 | -08 | 2.54" | 1.34" | 0.38" | 7/8" |
| 1AA10MR8 | 1-14 | -08 | 2.17" | 1.17" | 0.38" | 1-1/16" |
| 1AA12MR8 | 1-3/16-12 | -08 | 2.27" | 1.27" | 0.38" | 1-1/4" |
| 1AA10MR10 | 1-14 | -10 | 2.26" | 1.44" | 0.48" | 1-1/16" |
| 1AA12MR10 | 1-3/16-12 | -10 | 2.26" | 1.24" | 0.50" | 1-1/4" |
| 1AA12MR12 | 1-3/16-12 | -12 | 2.63" | 1.53" | 0.61" | 1-1/4" |
| 1AA16MR12 | 1-7/16-12 | -12 | 2.53" | 1.34" | 0.61" | 1-1/2" |
| 1AA16MR16 | 1-7/16-12 | -16 | 2.96" | 1.69" | 0.81" | 1-1/2" |
| 1AA20MR16 | 1-11/16-12 | -16 | - | - | - | - |
| 1AA20MR20 | 1-11/16-12 | -20 | 3.35" | 1.80" | 1.03" | 1-3/4" |
