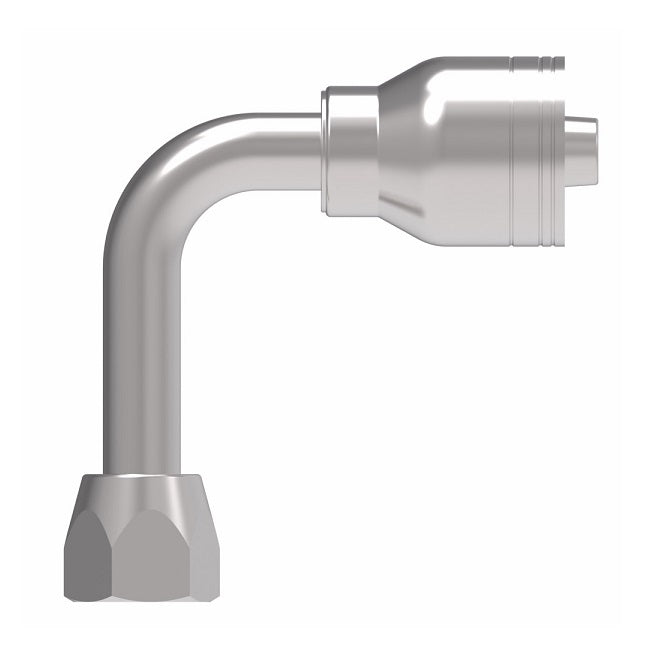

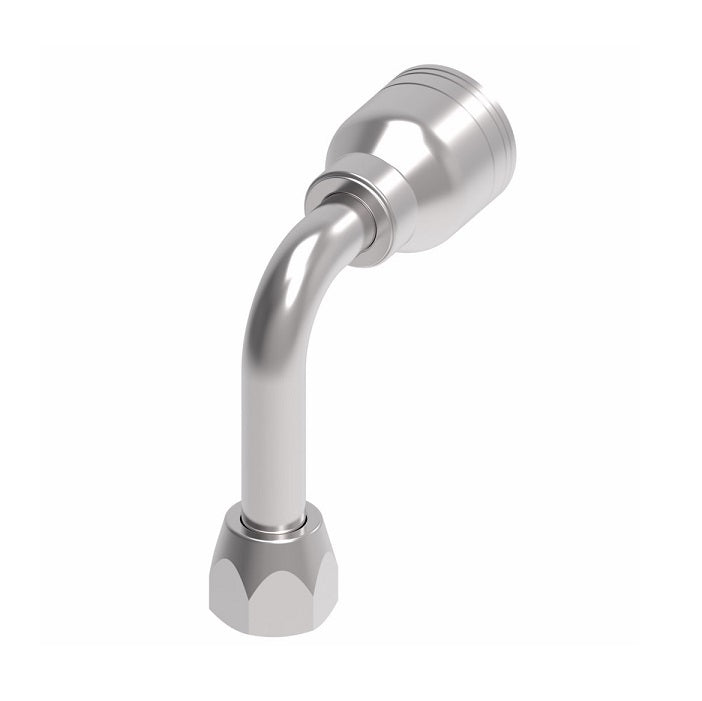

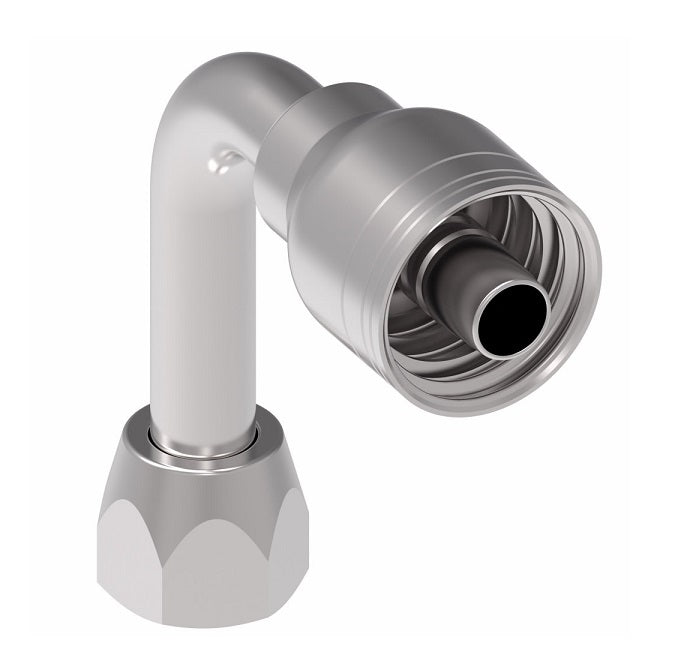

1AA6FJC6TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 90° Long Drop Elbow (FJC) Crimp Fitting | -06 Female JIC 37° Swivel x -06 Hose Barb | Zinc-Nickel Plated Steel
Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Long Drop Crimp Fitting (FJC) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 20–39 | $53.58 |
| 40–79 | $48.45 |
| 80+ | $42.75 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA4FJC4* | 1AA4FJC4TZ | 7/16-20 | -04 | 1.84" | 0.92" | 0.17" | 1.80" | 9/16" |
| 1AA5FJC4* | - | 1/2-20 | -04 | 1.92" | 1.00" | 0.17" | 1.80" | 5/8" |
| 1AA4FJC6 | - | 7/16-20 | -06 | 1.81" | 0.98" | 0.17" | 1.80" | 9/16" |
| 1AA6FJC4 | 1AA6FJC4TZ | 9/16-18 | -04 | - | - | - | - | - |
| 1AA6FJC6 | 1AA6FJC6TZ | 9/16-18 | -06 | 2.22" | 1.23" | 0.24" | 2.18" | 11/16" |
| 1AA8FJC6* | - | 3/4-16 | -06 | 2.54" | 1.54" | 0.26" | 2.45" | 7/8" |
| 1AA8FJC8* | 1AA8FJC8TZ | 3/4-16 | -08 | 2.71" | 1.54" | 0.37" | 2.45" | 7/8" |
| 1AA10FJC8* | - | 7/8-14 | -08 | 2.78" | 1.61" | 0.38" | 2.57" | 1" |
| 1AA10FJC10 | - | 7/8-14 | -10 | 2.70" | 1.54" | 0.46" | 2.57" | 1" |
| 1AA12FJC12** | 1AA12FJC12TZ | 1-1/16-12 | -12 | 3.36" | 2.04" | 0.58" | 3.76" | 1-1/4" |
| 1AA16FJC16*** | 1AA16FJC16TZ | 1-5/16-12 | -16 | 3.56" | 2.87" | 0.81" | 4.58" | 1-1/2" |
| 1AA20FJC20 | 1AA20FJC20TZ | 1-5/8-12 | -20 | 4.25" | 2.52" | 1.01" | 5.53" | 2" |
* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
** The 90º long drop tube elbow configuration meets a 3.5:1 burst, based on 4000 PSI operating pressure
*** The 90º long drop tube elbow configuration meets a 3.7:1 burst, based on 3000 PSI operating pressure.
