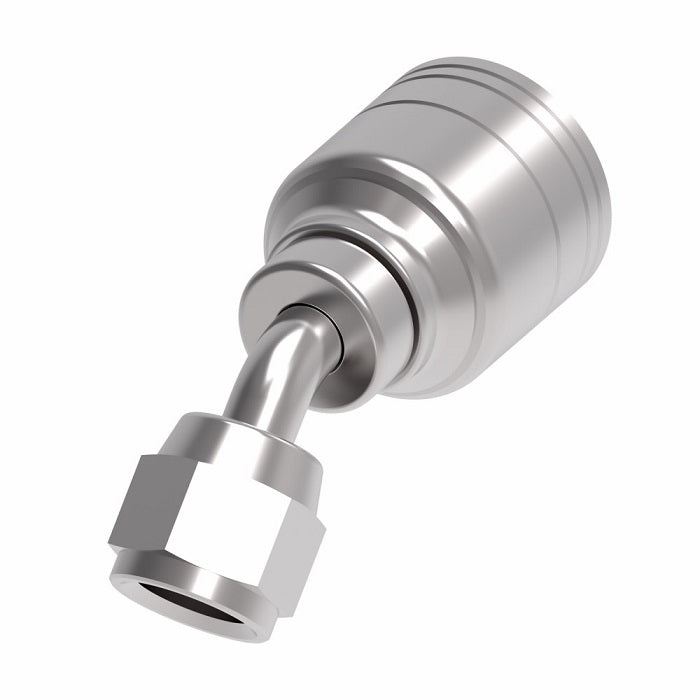

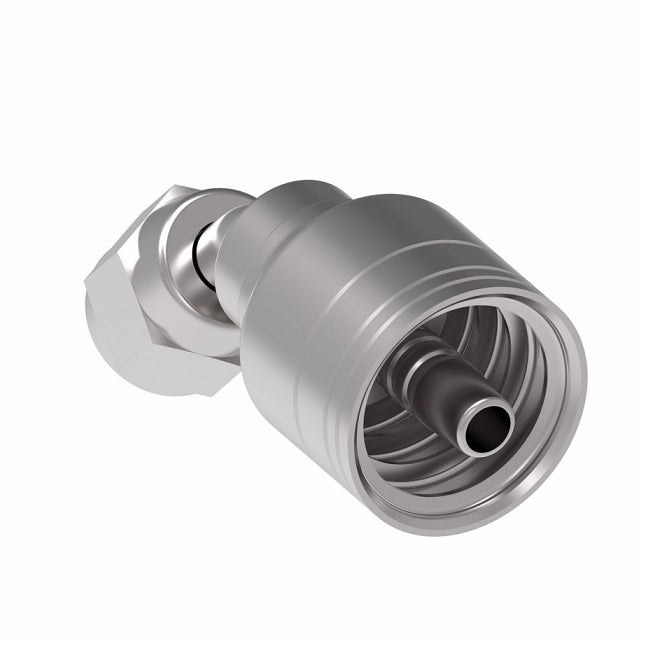

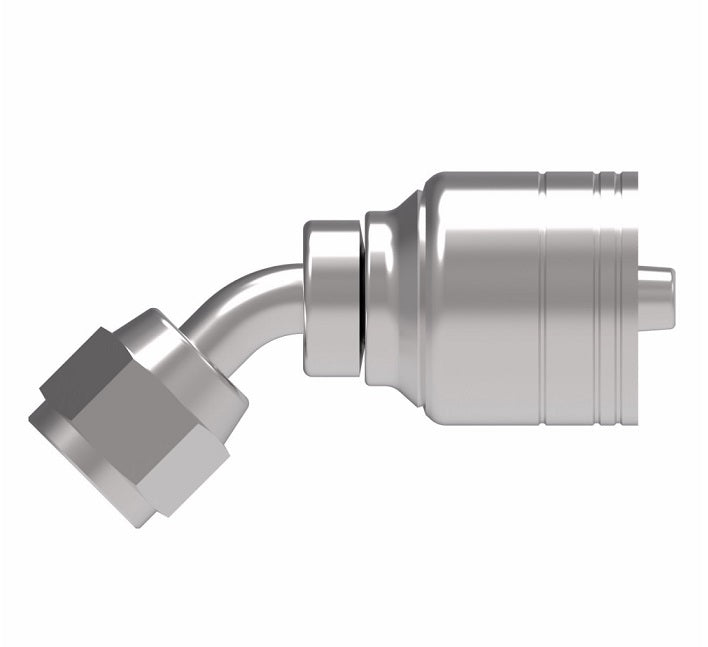

1AA5FJA4 Aeroquip by Danfoss | 1 & 2 Wire TTC Female JIC 37° Swivel 45° Elbow (FJA) Crimp Fitting | -05 Female JIC 37° Swivel x -04 Hose Barb | Steel
| Quantity | Price Each |
| 20–49 | $21.83 |
| 50–99 | $20.68 |
| 100+ | $18.38 |
Discounts applied at checkout.
Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female JIC 37° Swivel Crimp Fitting (FJA) - 45° Elbow
(Formerly Eaton Aeroquip)
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA4FJA4* | 1AA4FJA4TZ | 7/16-20 | -04 | 1.78" | 0.97" | 0.17" | 0.33" | 9/16" |
| 1AA5FJA4* | - | 1/2-20 | -04 | 2.04" | 1.12" | 0.17" | 0.37" | 5/8" |
| 1AA6FJA4 | 1AA6FJA4TZ | 9/16-18 | -04 | 2.09" | 1.17" | 0.17" | 0.39" | 11/16" |
| 1AA4FJA6 | - | 7/16-20 | -06 | 1.75" | 0.92" | 0.16" | 0.33" | 9/16" |
| 1AA6FJA6 | 1AA6FJA6TZ | 9/16-18 | -06 | 2.31" | 1.31" | 0.24" | 0.39" | 11/16" |
| 1AA8FJA6* | - | 3/4-16 | -06 | 2.65" | 1.66" | 0.26" | 0.55" | 7/8" |
| 1AA8FJA8* | 1AA8FJA8TZ | 3/4-16 | -08 | 2.82" | 1.65" | 0.37" | 0.55" | 7/8" |
| 1AA10FJA8* | - | 7/8-14 | -08 | 3.03" | 1.86" | 0.38" | 0.59" | 1" |
| 1AA10FJA10* | - | 7/8-14 | -10 | 2.82" | 1.79" | 0.46" | 0.63" | 1" |
| 1AA12FJA10 | - | 1-1/16-12 | -10 | 3.38" | 2.22" | 0.50" | 0.78" | 1-1/4" |
| 1AA12FJA12 | 1AA12FJA12TZ | 1-1/16-12 | -12 | 3.43" | 2.24" | 0.58" | 0.78" | 1-1/4" |
| 1AA16FJA12 | - | 1-5/16-12 | -16 | 3.74" | 2.39" | 0.76" | 1.07" | 1-1/2" |
| 1AA16FJA16 | 1AA16FJA16TZ | 1-5/16-12 | -16 | 3.74" | 3.01" | 0.81" | 1.07" | 1-1/2" |
| 1AA20FJA20 | 1AA20FJA20TZ | 1-5/8-12 | -20 | 4.44" | 2.71" | 1.01" | 1.22" | 2" |
| 1AA24FJA24 | - | 1-7/8-12 | -24 | - | - | - | - | 2.25" |
* Swivel nuts are universal for both SAE 37° and SAE 45° connections.
