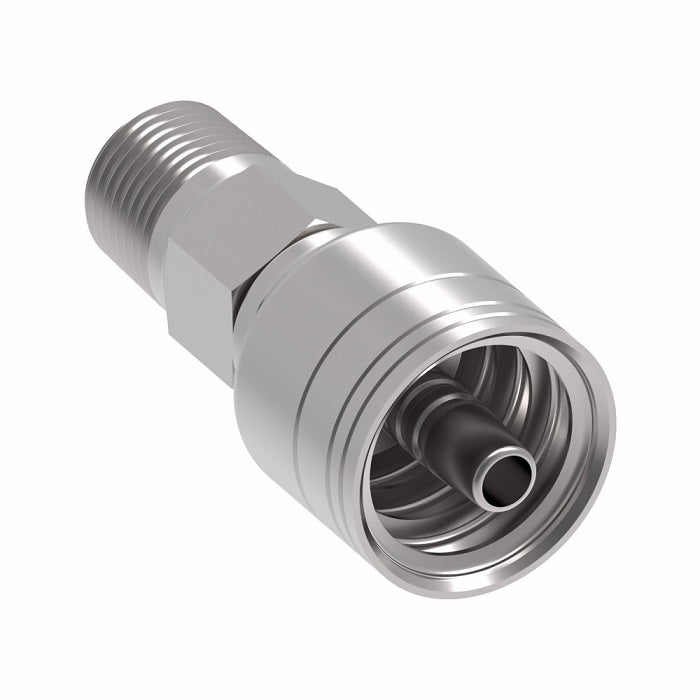

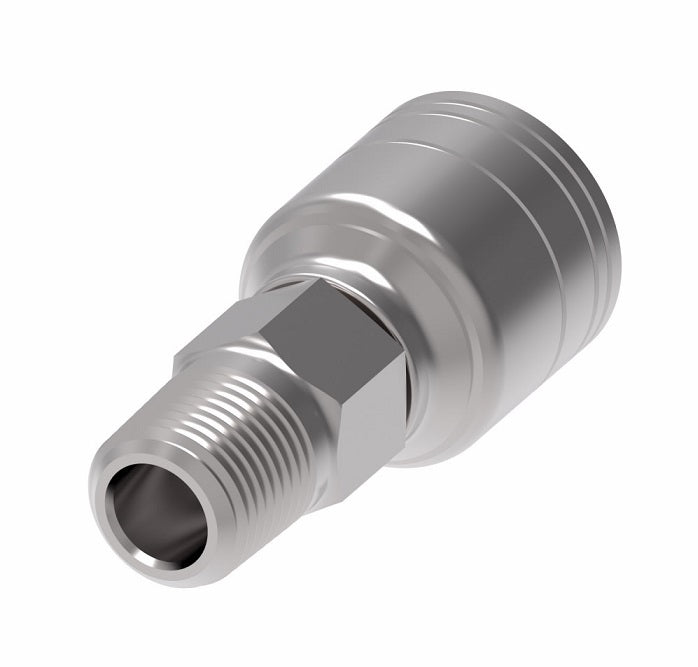

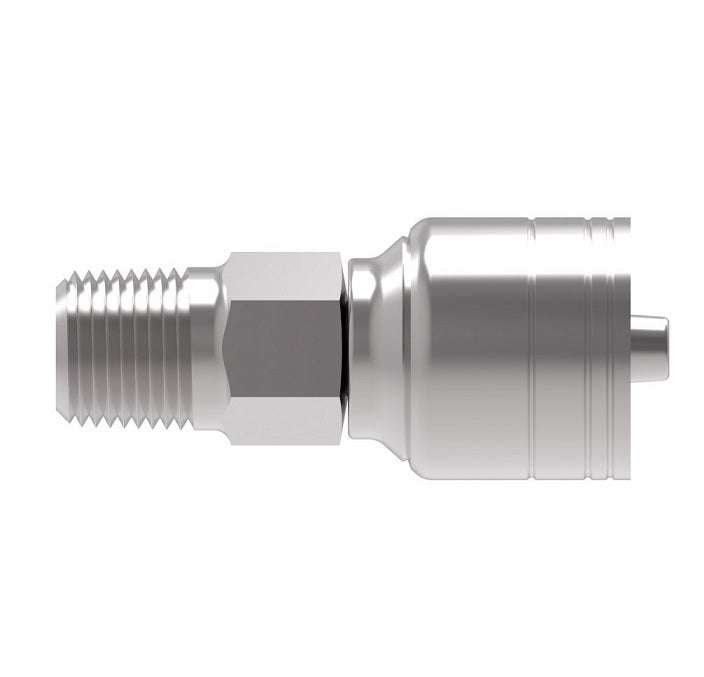

1AA4MP4C Aeroquip by Danfoss | 1 & 2 Wire TTC Male Pipe Crimp Fitting (MP) | -04 Male Pipe x -04 Hose Barb | Stainless Steel
AeroquipĀ® by Danfoss
1 & 2 Wire Global TTC Male Pipe Crimp Fitting (MP) - Straight
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 20ā49 | $28.57 |
| 50ā99 | $27.06 |
| 100+ | $24.06 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Stainless Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EĆ | Hex 2 |
| 1AA2MP4 | - | - | 1/8-27 | -04 | 1.84" | 0.92" | 0.17" | 9/16" |
| 1AA4MP4 | 1AA4MP4C | 1AA4MP4TZ | 1/4-18 | -04 | 2.06" | 1.14" | 0.17" | 9/16" |
| 1AA6MP4 | - | - | 3/8-18 | -04 | 1.90" | 0.98" | 0.17" | 11/16" |
| 1AA4MP6 | - | - | 1/4-18 | -06 | 2.02" | 1.18" | 0.26" | 11/16" |
| 1AA6MP6 | 1AA6MP6C | - | 3/8-18 | -06 | 2.17" | 1.27" | 0.26" | 11/16" |
| 1AA8MP4 | - | - | 1/2-14 | -04 | 2.02" | 1.23" | 0.17" | 7/8" |
| 1AA8MP6 | - | - | 1/2-14 | -06 | 2.11" | 1.28" | 0.26" | 7/8" |
| 1AA4MP8 | - | - | 1/4-18 | -08 | 2.30" | 1.23" | 0.30" | 13/16" |
| 1AA6MP8 | - | - | 3/8-18 | -08 | 2.39" | 1.32" | 0.38" | 13/16" |
| 1AA8MP8 | 1AA8MP8C | - | 1/2-14 | -08 | 2.80" | 1.60" | 0.38" | 7/8" |
| 1AA12MP8 | - | - | 3/4-14 | -08 | 2.46" | 1.39" | 0.38" | 1-1/16" |
| 1AA6MP10 | - | - | 3/8-18 | -10 | 2.49" | 1.33" | 0.42" | 15/16" |
| 1AA8MP10 | - | - | 1/2-14 | -10 | 2.61" | 1.58" | 0.50" | 15/16" |
| 1AA12MP10 | - | - | 3/4-14 | -10 | 2.43" | 1.40" | 0.50" | 1-1/16" |
| 1AA8MP12 | - | - | 1/2-14 | -12 | 2.78" | 1.60" | 0.56" | 1-1/8" |
| 1AA12MP12 | 1AA12MP12C | - | 3/4-14 | -12 | 2.84" | 1.65" | 0.61" | 1-1/8" |
| 1AA12MP16 | - | - | 3/4-14 | -16 | 3.02" | 1.67" | 0.76" | 1-3/8" |
| 1AA16MP12 | - | - | 1-11-1/2 | -12 | 2.80" | 1.61" | 0.61" | 1-3/8" |
| 1AA16MP16 | 1AA16MP16C | - | 1-11-1/2 | -16 | 3.22" | 1.86" | 0.82" | 1-3/8" |
| 1AA20MP16 | - | - | 1-1/4 - 11-1/2 | -16 | 3.08" | 1.72" | 0.82" | 1-11/16" |
| 1AA16MP20 | - | - | 1-11 1/2 | -20 | 3.66" | 1.93" | 0.95" | 1-3/4" |
| 1AA20MP20 | - | 1AA20MP20TZ | 1-1/4 - 11-1/2 | -20 | 3.52" | 1.79" | 1.05" | 1-13/16" |
| 1AA24MP24 | - | - | 1-1/2 - 11-1/2 | -24 | 4.18" | 2.36" | 1.26" | 2" |
| 1AA32MP32 | - | - | 2-11-1/2 | -32 | 4.59" | 2.61" | 1.75" | 2-1/2" |
