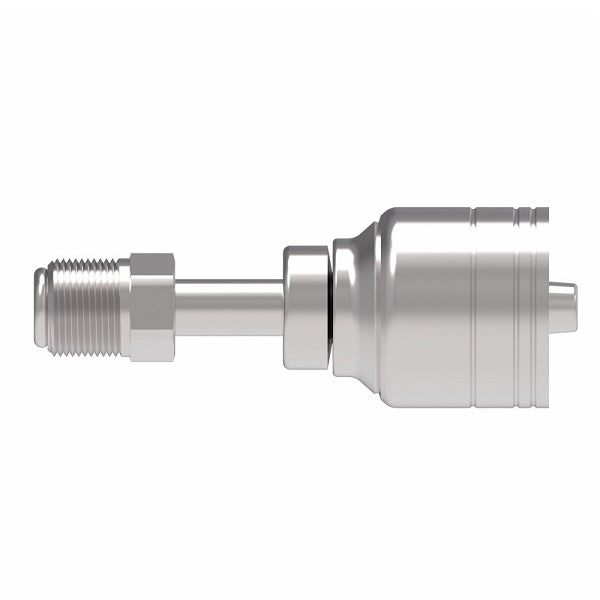

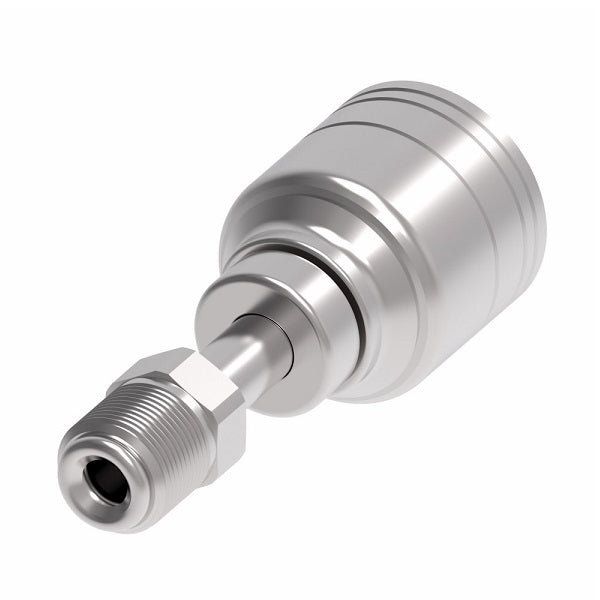

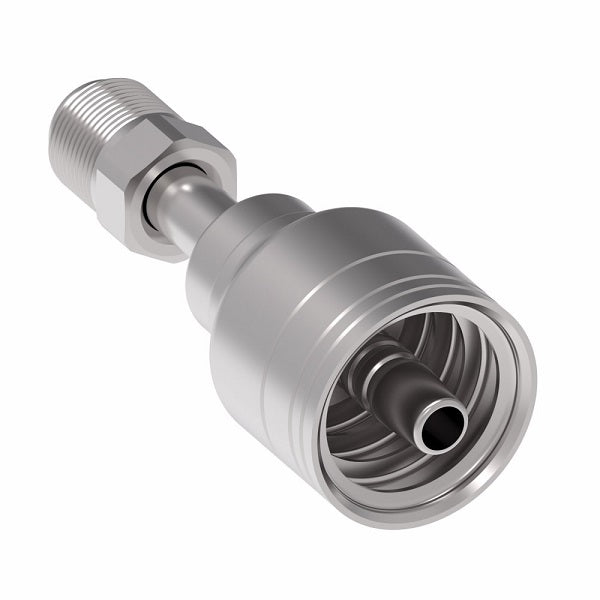

1AA4MF6 Aeroquip by Danfoss | 1 & 2 Wire TTC Male SAE Inverted Flare Swivel (MF) Crimp Fitting | -04 Male SAE Inverted Flare Swivel x -06 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC Male SAE Inverted Flare Swivel Crimp Fitting (MF) - Straight
(Formerly Eaton Aeroquip)
| Quantity | Price Each |
| 20–49 | $35.31 |
| 50–99 | $33.45 |
| 100+ | $29.74 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
| 1AA3MF4 | 3/8-24 | -04 | 2.42" | 1.50" | 0.10" | 3/8" |
| 1AA4MF4 | 7/16-24 | -04 | 2.39" | 1.46" | 0.17" | 7/16" |
| 1AA5MF4 | 1/2-20 | -04 | 2.39" | 1.46" | 0.17" | 1/2" |
| 1AA5MF6 | 1/2-20 | -06 | 2.60" | 1.61" | 0.24" | 1/2" |
| 1AA4MF6 | 7/16-24 | -06 | 2.53" | 1.53" | 0.17" | 7/16" |
| 1AA6MF6 | 5/8-18 | -06 | 2.60" | 1.61" | 0.26" | 5/8" |
| 1AA7MF6 | 11/16-18 | -06 | 2.45" | 1.60" | 0.26" | 11/16" |
| 1AA8MF8 | 3/4-18 | -08 | 2.79" | 1.62" | 0.38" | 3/4" |
| 1AA10MF8 | 7/8-18 | -08 | 2.94" | 1.93" | 0.38" | 7/8" |
