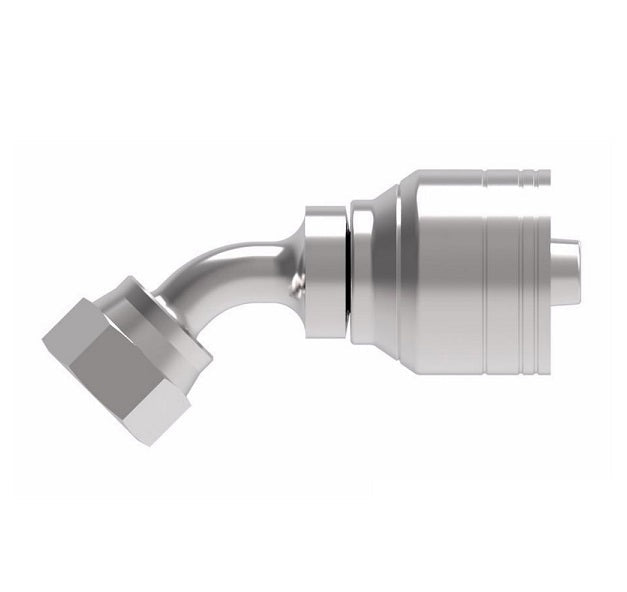

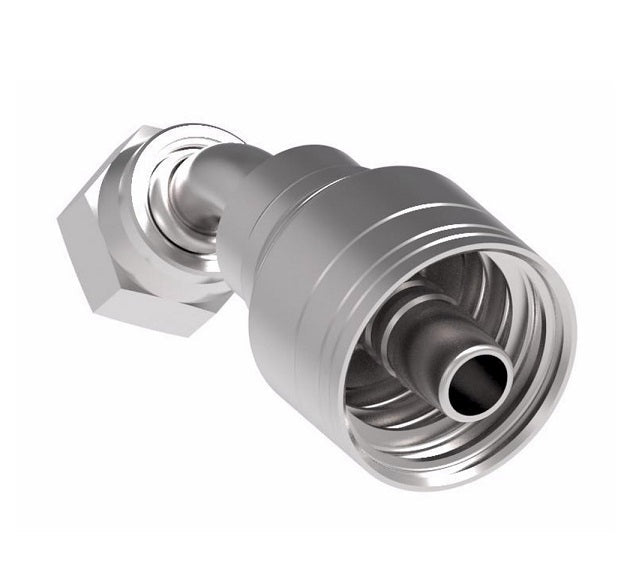

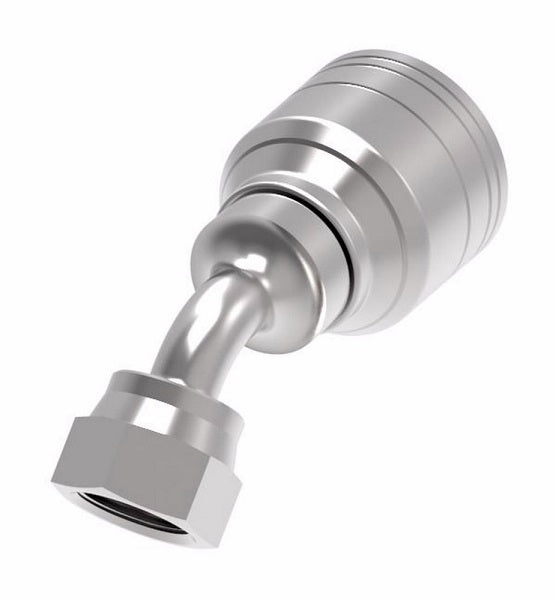

1AA4FRA6 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 45° Elbow (FRA) Crimp Fitting | -04 Female O-Ring Face Seal Swivel x -06 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC Female O-Ring Face Seal (ORS) Swivel Crimp Fitting (FRA) - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $44.31 |
| 40–79 | $40.07 |
| 80+ | $35.36 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
45 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA4FRA4 | - | 9/16-18 | -04 | 2.12" | 1.20" | 0.17" | 0.14" | 11/16" |
| 1AA6FRA4 | - | 11/16-16 | -04 | 2.30" | 1.38" | 0.17" | 0.43" | 13/16" |
| 1AA4FRA6 | - | 9/16-18 | -06 | 2.14" | 1.30" | 0.17" | 0.41" | 11/16" |
| 1AA6FRA6 | - | 11/16-16 | -06 | 2.36" | 1.43" | 0.24" | 0.43" | 13/16" |
| 1AA8FRA6 | - | 13/16-16 | -06 | 2.58" | 1.74" | 0.26" | 0.59" | 15/16" |
| 1AA6FRA8 | - | 11/16-16 | -08 | 2.65" | 1.48" | 0.26" | 0.43" | 13/16" |
| 1AA8FRA8 | - | 13/16-16 | -08 | 3.00" | 1.79" | 0.33" | 0.59" | 15/16" |
| 1AA10FRA8 | - | 1-14 | -08 | 3.08" | 2.01" | 0.38" | 0.65" | 1-1/8" |
| 1AA12FRA8 | - | 1-3/16-12 | -08 | 3.51" | 2.34" | 0.38" | 0.83" | 1-3/8" |
| 1AA10FRA10 | - | 1-14 | -10 | 3.18" | 2.02" | 0.44" | 0.65" | 1-1/8" |
| 1AA12FRA10 | - | 1-3/16-12 | -10 | 3.39" | 2.36" | 0.50" | 0.83" | 1-3/8" |
| 1AA10FRA12 | - | 1-14 | -12 | 3.09" | 2.04" | 0.45" | 0.65" | 1-1/8" |
| 1AA12FRA12 | - | 1-3/16-12 | -12 | 3.57" | 2.38" | 0.55" | 0.83" | 1-3/8" |
| 1AA16FRA12 | - | 1-7/16-12 | -12 | 4.04" | 2.85" | 0.61" | 0.94" | 1-5/8" |
| 1AA12FRA16 | - | 1-3/16-12 | -16 | 3.72" | 2.40" | 0.55" | 0.83" | 1-3/8" |
| 1AA16FRA16 | 1AA16FRA16TZ | 1-7/16-12 | -16 | 4.23" | 2.88" | 0.81" | 0.94" | 1-5/8" |
| 1AA16FRA20 | - | 1-7/16-12 | -20 | - | - | - | - | - |
| 1AA20FRA16 | - | 1-11/16-12 | -16 | 4.62" | 3.30" | 0.81" | 1.00" | 1-7/8" |
| 1AA20FRA20 | - | 1-11/16-12 | -20 | 5.10" | 3.37" | 1.02" | 1.00" | 1-7/8" |
| 1AA24FRA20 | - | 2-12 | -20 | 5.49" | 3.76" | 1.01" | 1.07" | 2-1/4" |
| 1AA24FRA24 | - | 2-12 | -24 | 4.54" | 2.71" | 1.26" | 1.07" | 2-1/4" |
