1AA16SP16 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -16 Female NPSM Swivel x -16 Hose Barb | Steel
1AA16SP16 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -16 Female NPSM Swivel x -16 Hose Barb | Steel
1AA16SP16 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -16 Female NPSM Swivel x -16 Hose Barb | Steel

1AA16SP16 Aeroquip by Danfoss | Female Pipe Swivel (SP) TTC Crimp Fitting | -16 Female NPSM Swivel x -16 Hose Barb | Steel

Sale price$38.74

Aeroquip® by Danfoss

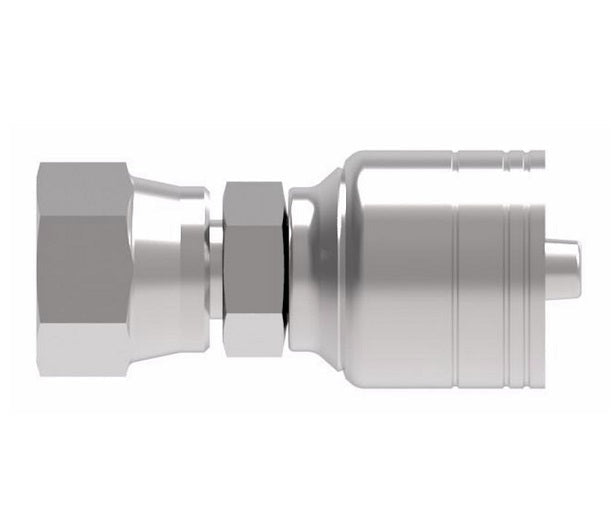

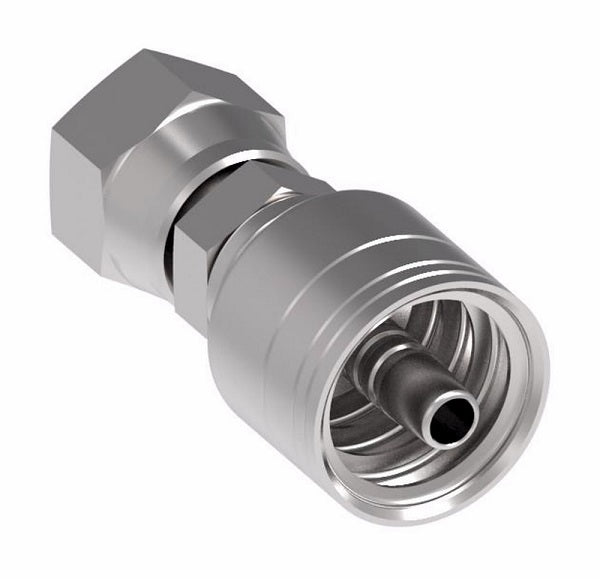

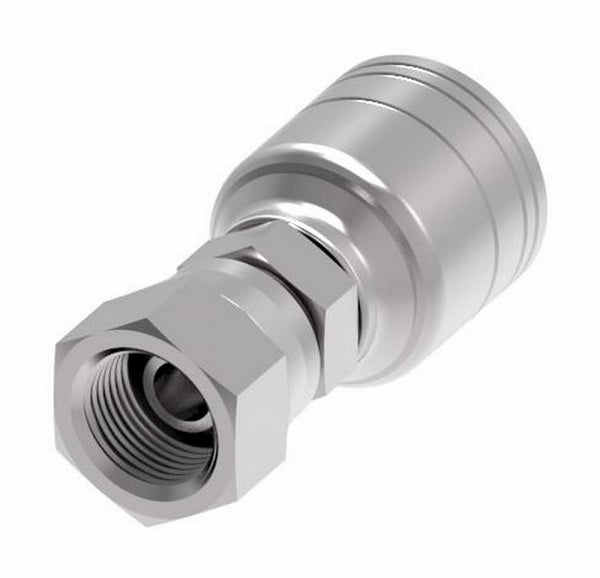

Female Pipe Swivel (SP) TTC Crimp Fitting - Straight

(Formerly Eaton Aeroquip)

In stock
Quantity Price Each
20–49 $36.80
50–99 $34.87
100+ $30.99
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Aeroquip
  • MatchMate
Series:
  • 1AA MatchMate Series
Shape:

Straight
Technical Info:
Steel
Part Number		 Thread Hose Dash Size A Hose Cut-OffFactor (D) EØ Hex 2

 Hex 1
1AA4SP4 1/4-18 -04 1.88" 1.09" 0.17" 9/16" 11/16"
1AA6SP6 3/8-18 -06 2.04" 1.20" 0.26" 11/16" 7/8"
1AA8SP8 1/2-14 -08 2.40" 1.41" 0.38" 7/8" 1"
1AA12SP12 3/4-14 -12 2.62" 1.56" 0.61" 1-1/8" 1-1/4"
1AA16SP16 1-11-1/2 -16 3.11" 1.18" 0.81" 1-3/8" 1-1/2"
1AA20SP20 1-1/4-11-1/2 -20 - - - - -

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
