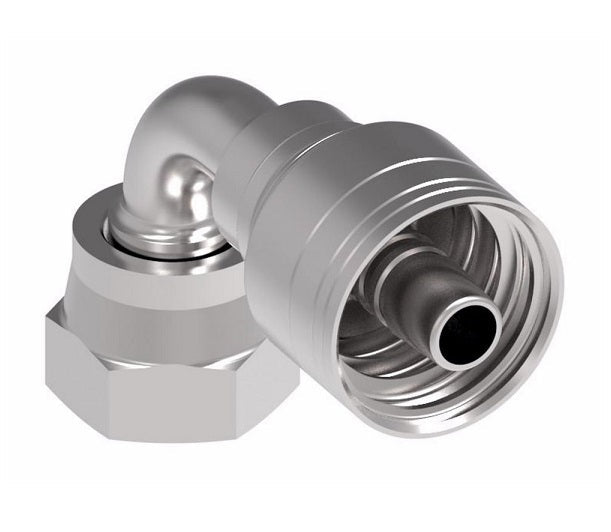

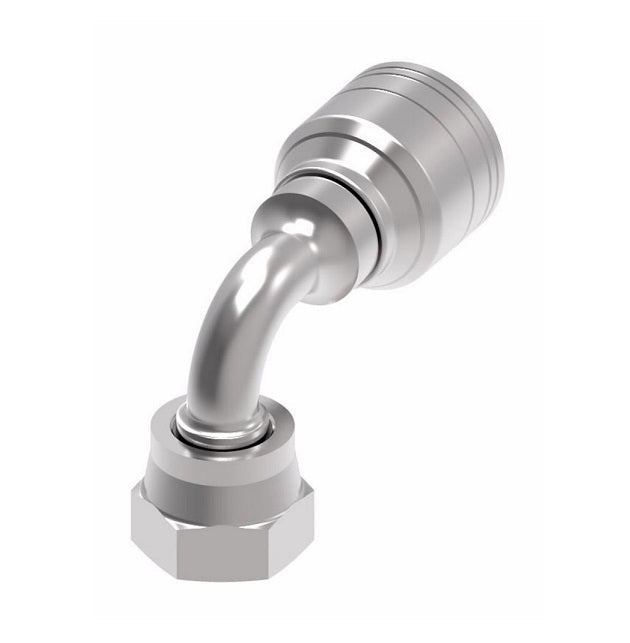

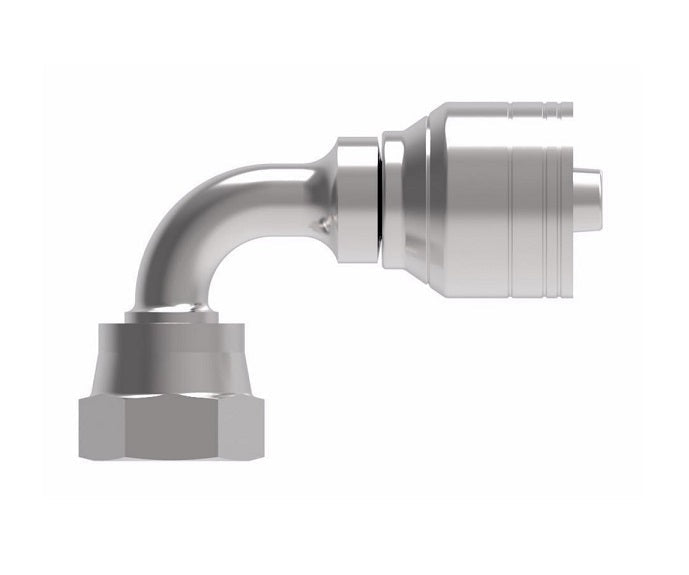

1AA16FRB12 Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel 90° Short Drop Elbow (FRB) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -12 Hose Barb | Steel
| Quantity | Price Each |
| 15–29 | $80.52 |
| 30–59 | $76.28 |
| 60+ | $67.81 |
Discounts applied at checkout.
Aeroquip® by Danfoss
1 & 2 Wire TTC Female ORS Swivel Short Drop Crimp Fitting (FRB) - 90° Elbow
(Formerly Eaton Aeroquip)
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1AA4FRB4 | 1AA4FRB4TZ | 9/16-18 | -04 | 2.09" | 0.92" | 0.17" | 0.82" | 11/16" |
| 1AA4FRB4.032 | - | 9/16-18 | -04 | - | - | - | - | - |
| 1AA6FRB4 | - | 11/16-16 | -04 | 2.22" | 0.99" | 0.17" | 0.90" | 13/16" |
| 1AA6FRB4.038 | - | 11/16-16 | -04 | - | - | - | - | - |
| 1AA4FRB6 | - | 9/16-18 | -06 | 2.21" | 1.21" | 0.17" | 0.82" | 11/16" |
| 1AA6FRB6 | - | 11/16-16 | -06 | 2.34" | 1.34" | 0.26" | 0.90" | 13/16" |
| 1AA6FRB6.038 | - | 11/16-16 | -06 | - | - | - | - | - |
| 1AA8FRB4.042 | - | 13/16-16 | -04 | - | - | - | - | - |
| 1AA8FRB6 | - | 13/16-16 | -06 | 2.62" | 1.62" | 0.26" | 1.15" | 15/16" |
| 1AA8FRB6.042 | - | 13/16-16 | -06 | - | - | - | - | - |
| 1AA6FRB8 | - | 11/16-16 | -08 | 2.56" | 1.39" | 0.26" | 0.90" | 13/16" |
| 1AA6FRB8.038 | - | 11/16-16 | -08 | - | - | - | - | - |
| 1AA8FRB8 | - | 13/16-16 | -08 | 2.84" | 1.67" | 0.36" | 1.15" | 15/16" |
| 1AA8FRB8.041 | - | 13/16-16 | -08 | - | - | - | - | - |
| 1AA10FRB8 | - | 1-14 | -08 | 3.07" | 1.91" | 0.38" | 1.27" | 1-1/8" |
| 1AA12FRB8 | - | 1-3/16-12 | -08 | 3.45" | 2.28" | 0.38" | 1.88" | 1-3/8" |
| 1AA12FRB8.054 | - | 1-3/16-12 | -08 | - | - | - | - | - |
| 1AA10FRB10 | - | 1-14 | -10 | 3.07" | 1.91" | 0.45" | 1.27" | 1-1/8" |
| 1AA10FRB10.047 | - | 1-14 | -10 | - | - | - | - | - |
| 1AA12FRB10 | - | 1-3/16-12 | -10 | 3.44" | 2.29" | 0.50" | 1.88" | 1-3/8" |
| 1AA10FRB12 | - | 1-14 | -12 | 3.11" | 1.93" | 0.45" | 1.27" | 1-1/8" |
| 1AA10FRB12.045 | - | 1-14 | -12 | - | - | - | - | - |
| 1AA12FRB12 | 1AA12FRB12TZ | 1-3/16-12 | -12 | 3.49" | 2.30" | 0.55" | 1.88" | 1-3/8" |
| 1AA12FRB12.058 | - | 1-3/16-12 | -12 | - | - | - | - | - |
| 1AA16FRB12 | - | 1-7/16-12 | -12 | 4.04" | 2.85" | 0.61" | 2.21" | 1.5/8" |
| 1AA16FRB16 | 1AA16FRB16TZ | 1-7/16-12 | -16 | 4.22" | 2.87" | 0.81" | 2.21" | 1-5/8" |
| 1AA16FRB16.071 | - | 1-7/16-12 | -16 | - | - | - | - | - |
| 1AA16FRB20 | - | 1-7/16-12 | -20 | - | - | - | - | - |
| 1AA20FRB16 | - | 1-11/16-12 | -16 | 4.85" | 3.50" | 0.81" | 2.51" | 1-7/8" |
| 1AA20FRB16.078 | - | 1-11/16-12 | -16 | - | - | - | - | - |
| 1AA20FRB20 | - | 1-11/16-12 | -20 | 5.30" | 3.57" | 1.02" | 2.51" | 1-7/8" |
| 1AA20FRB20.078 | - | 1-11/16-12 | -20 | - | - | - | - | - |
| 1AA24FRB20 | - | 2-12 | -20 | 4.32" | 2.77" | 1.05" | 2.70" | 2-1/4" |
| 1AA24FRB24 | - | 2-12 | -24 | 4.63" | 2.81" | 1.26" | 2.70" | 2-1/4" |
