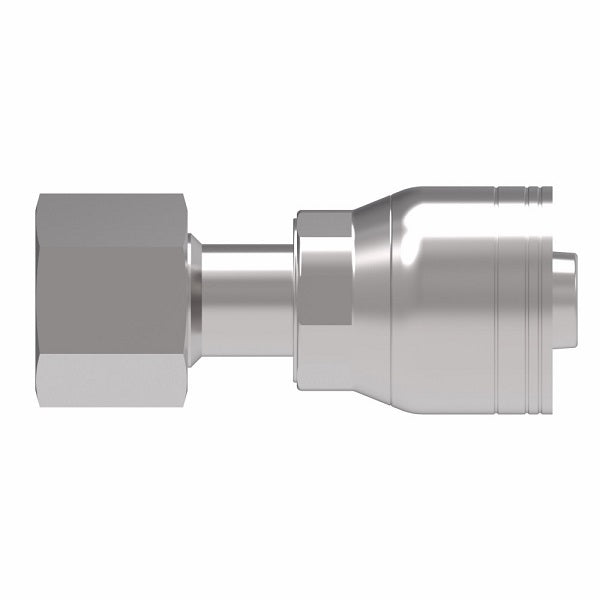

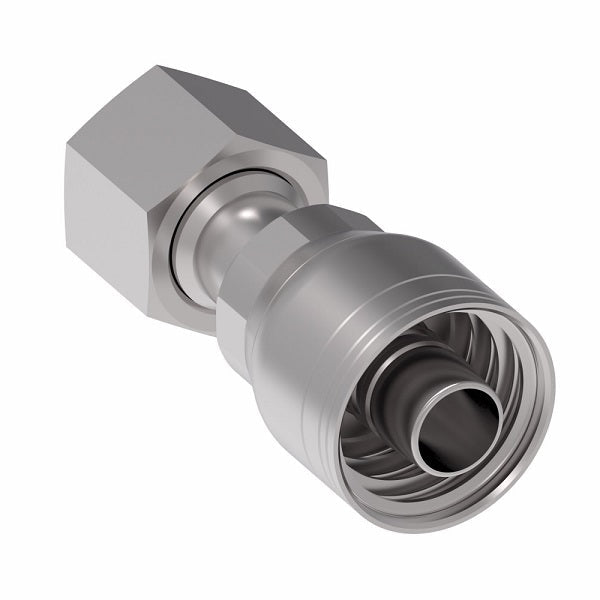

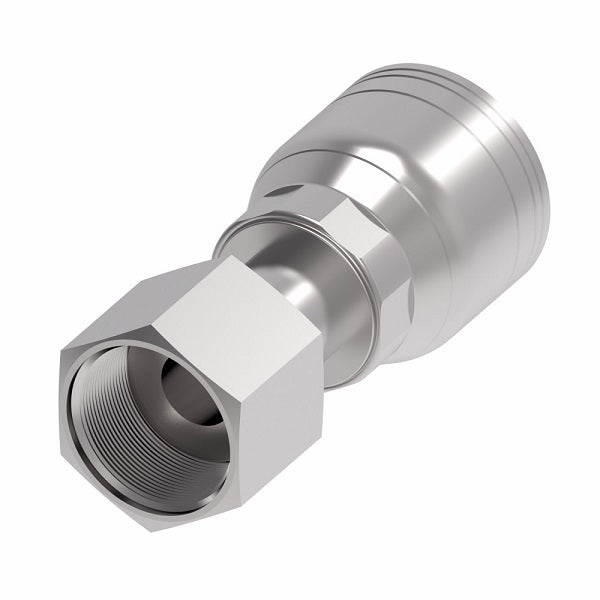

1AA16FR16TZ Aeroquip by Danfoss | 1 & 2 Wire TTC Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -16 Hose Barb | Zinc-Nickel Plated Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Technical Info: | |||
|---|---|---|---|
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
| 1AA4FR4 | 1AA4FR4TZ | 9/16-18 | -04 | 1.95" | 1.03" | 0.17" | 11/16" | 9/16" |
| 1AA6FR4 | - | 11/16-16 | -04 | 2.04" | 1.12" | 0.17" | 13/16" | 9/16" |
| 1AA8FR4 | - | 13/16-16 | -04 | 2.06" | 1.28" | 0.16" | 13/16" | 15/16" |
| 1AA4FR6 | - | 9/16-18 | -06 | 2.14" | 1.15" | 0.17" | 11/16" | 11/16" |
| 1AA6FR6 | - | 11/16-16 | -06 | 2.07" | 1.24" | 0.26" | 13/16" | 11/16" |
| 1AA8FR6 | - | 13/16-16 | -06 | 2.14" | 1.32" | 0.26" | 15/16" | 11/16" |
| 1AA6FR8 | - | 11/16-16 | -08 | 2.41" | 1.34" | 0.26" | 13/16" | 7/8" |
| 1AA8FR8 | - | 13/16-16 | -08 | 2.61" | 1.50" | 0.36" | 15/16" | 7/8" |
| 1AA10FR8 | - | 1-14 | -08 | 2.57" | 1.47" | 0.38" | 1-1/8" | 7/8" |
| 1AA12FR8 | - | 1-3/16-16 | -08 | 2.80" | 1.63" | 0.38" | 1-3/8" | 1-1/8" |
| 1AA8FR10 | - | 13/16-16 | -10 | 2.67" | 1.51" | 0.38" | 15/16" | 15/16" |
| 1AA10FR10 | - | 1-14 | -10 | 2.62" | 1.61" | 0.45" | 1-1/8" | 1-1/16" |
| 1AA12FR10 | - | 1-3/16-12 | -10 | 2.65" | 1.63" | 0.50" | 1-3/8" | 1-1/16" |
| 1AA10FR12 | - | 1-14 | -12 | 2.81" | 1.62" | 0.48" | 1-1/8" | 1-1/8" |
| 1AA12FR12 | - | 1-3/16-12 | -12 | 2.91" | 1.72" | 0.61" | 1-3/8" | 1-1/8" |
| 1AA12FR16 | - | 1-3/16-12 | -16 | 3.22" | 1.86" | 0.61" | 1-3/8" | 1-3/8" |
| 1AA16FR12 | - | 1-7/16-12 | -12 | 2.98" | 1.79" | 0.61" | 1-5/8" | 1-3/8" |
| 1AA16FR16 | 1AA16FR16TZ | 1-7/16-12 | -16 | 3.29" | 1.94" | 0.81" | 1-5/8" | 1-3/8" |
| 1AA16FR20 | - | 1-7/16-12 | -20 | - | - | - | - | - |
| 1AA20FR16 | - | 1-11/16-12 | -16 | 3.25" | 1.90" | 0.81" | 1-7/8" | 1-5/8" |
| 1AA20FR20 | - | 1-11/16-12 | -20 | 4.07" | 2.33" | 1.02" | 1-7/8" | 1-3/4" |
| 1AA24FR20 | - | 2-12 | -20 | 3.88" | 2.15" | 1.05" | 2-1/4" | 1" |
| 1AA24FR24 | - | 2-12 | -24 | 4.02" | 2.19" | 1.26" | 2-1/4" | 2" |
Additional Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
