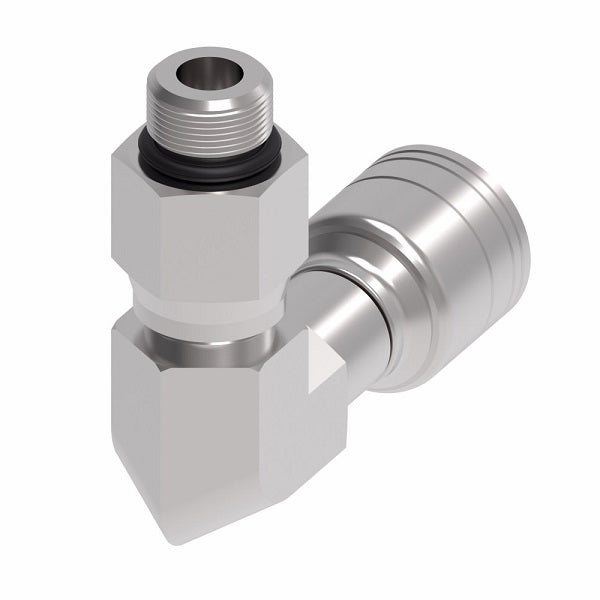

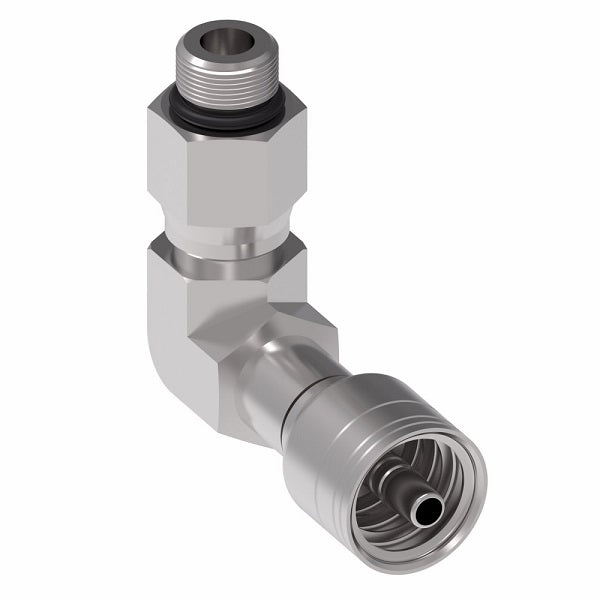

1AA10SBB6 Aeroquip by Danfoss | Male ORB Straight Thread Swivel (With Sleeve) (SBB) 90° Elbow TCC Crimp Fitting | -10 Male O-Ring Boss x -06 Hose Barb | Steel
Aeroquip® by Danfoss
TCC Crimp Fitting - Male ORB Straight Thread Swivel (With Sleeve) (SBB) - 90° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $34.08 |
| 40–79 | $30.82 |
| 80+ | $27.20 |
Discounts applied in cart/checkout.
Product Data:
Brand:
Series:
Shape:
90 Degree
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Note: | |||
|---|---|---|---|
|
|||
| Technical Info: | |||
 |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Part Number Steel | Part Number Zinc-Plated Nickel Steel | Thread | Hose Dash Size |
A | Hose Cut-Off Factor D |
EØ | Hex 2 |
Hex 1 |
B |
| 1AA6SBB4 | - | 9/16-18 | -04 | 2.18" | 1.26" | 0.17" | 3/4" | 7/8" | 1,87" |
| 1AA6SBB6 | - | 9/16-18 | -06 | 2.33" | 1.33" | 0.26" | 3/4" | 7/8" | 1,87" |
| 1AA8SBB6 | - | 3/4-16 | -06 | 2.33" | 1.33" | 0.26" | 3/4" | 1" | 1,93" |
| 1AA10SBB6 | - | 7/8-14 | -06 | 2.33" | 1.33" | 0.26" | 3/4" | 1" | 1.95" |
| 1AA8SBB8 | - | 3/4-16 | -08 | 2.68" | 1.51" | 0.38" | 3/4" | 1" | 1.93" |
| 1AA10SBB8 | 1AA10SBB8TZ | 7/8-14 | -08 | 2.68" | 1.51" | 0.38" | 3/4" | 1" | 1.97" |
| 1AA12SBB12 | - | 1-1/16-12 | -12 | 3.72" | 2.53" | 0.61" | 1-1/4" | 1-7/16" | 2,65" |
| 1AA12SBB8 | - | 1-1/16-12 | -08 | 3.12" | 1.95" | 0.38" | 1-1/16" | 1-7/16" | 2,43" |
