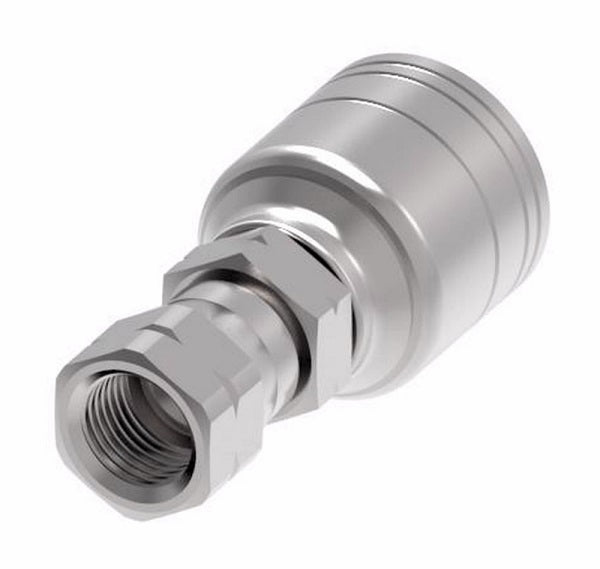

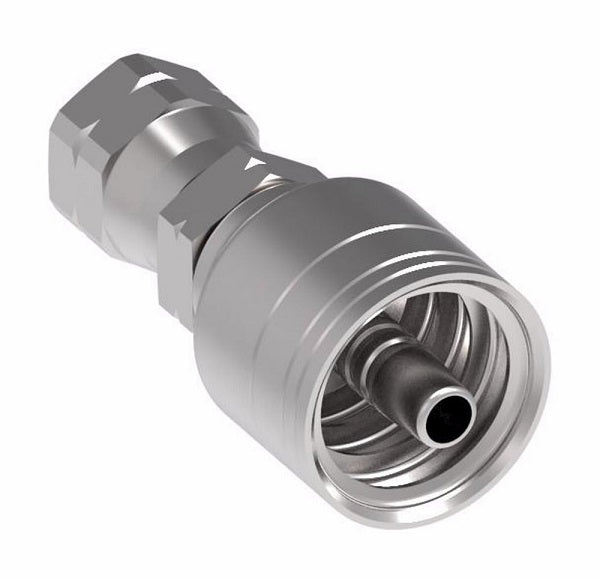

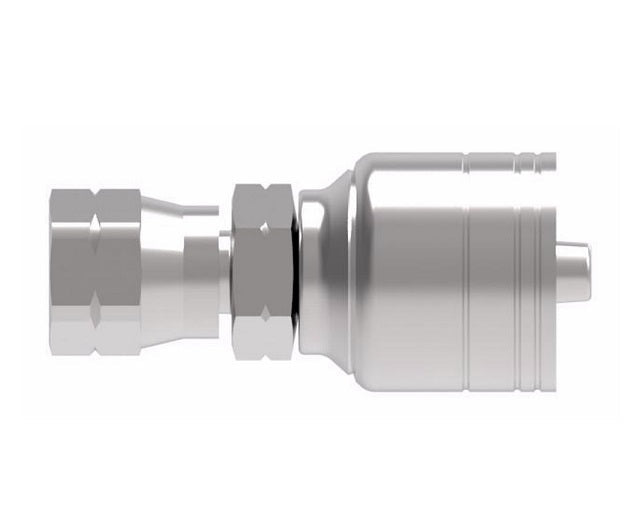

1AA10FS8 Aeroquip by Danfoss | 1 & 2 Wire TTC Female SAE 45° Swivel (FS) Crimp Fitting | -10 Female SAE 45° Swivel x -08 Hose Barb | Steel
| Quantity | Price Each |
| 20–49 | $45.05 |
| 50–99 | $42.68 |
| 100+ | $37.94 |
Discounts applied at checkout.
Aeroquip® by Danfoss
1 & 2 Wire Global TTC Female SAE 45° Swivel Crimp Fitting (FS) - Straight
(Formerly Eaton Aeroquip)
Product Data:
Brand:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 1 |
Hex 2 |
| 1AA4FS4 | 7/16-20 | -04 | 2.00" | 1.07" | 0.17" | 9/16" | 9/16" |
| 1AA5FS4 | 1/2-20 | -04 | 1.98" | 1.06" | 0.17" | 5/8" | 9/16" |
| 1AA4FS6 | 7/16-20 | -06 | 2.03" | 1.19" | 0.19" | 9/16" | 11/16" |
| 1AA6FS6 | 5/8-18 | -06 | 2.15" | 1.31" | 0.26" | 3/4" | 11/16" |
| 1AA8FS6 | 3/4-16 | -06 | 2.31" | 1.31" | 0.26" | 7/8" | 11/16" |
| 1AA8FS8 | 3/4-16 | -08 | 2.63" | 1.46" | 0.38" | 7/8" | 13/16" |
| 1AA10FS8 | 7/8-14 | -08 | 2.54" | 1.47" | 0.38" | 1" | 13/16" |
| 1AA12FS12 | 1-1/16-14 | -12 | 2.84" | 1.65" | 0.61" | 1-1/4" | 1-1/8" |
