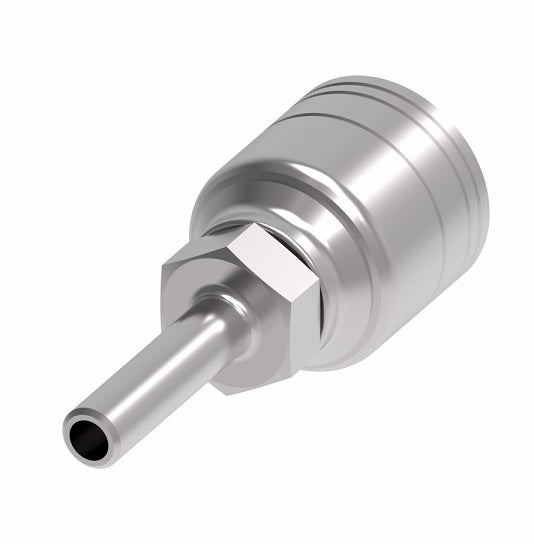

1A8TE8 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -08 Standpipe x -08 Hose Barb | Steel
1A8TE8 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -08 Standpipe x -08 Hose Barb | Steel
1A8TE8 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -08 Standpipe x -08 Hose Barb | Steel

1A8TE8 Aeroquip by Danfoss | Standpipe Straight Tube (TE) TCC Crimp Fitting | -08 Standpipe x -08 Hose Barb | Steel

Sale price$38.40

Aeroquip® by Danfoss
TCC Crimp Fitting - Standpipe Straight Tube (TE) - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $36.10
40–79 $32.64
80+ $28.80
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/2in Tube Stub
  • 1/2in Hose Barb
Material(s):
  • Steel
Note:
  • TTC Fittings must be crimped with the corresponding sleeve and are not approved for use without sleeve.
Technical Info:
Part Number Steel Tube OD Hose Dash
Size		 A Hose Cut-Off Factor
D		 E&Oslash Hex 2

 B
1A4TE4 1/4" -04 2.19" 1.40" 0.17" 9/16" 1.00"
1A6TE6 3/8" -06 2.35" 1.52" 0.26" 11/16" 1.00"
1A8TE8 1/2" -08 2.69" 1.70" 0.38" 13/16" 1.10"
1A10TE10 - -10 - - - - -
1A12TE12 3/4" -12 2.90" 1.84" 0.61" 1-1/8" 1.19"
1A16TE16 1" -16 3.43" 2.11" 0.81" 1-3/8" 1.32"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
