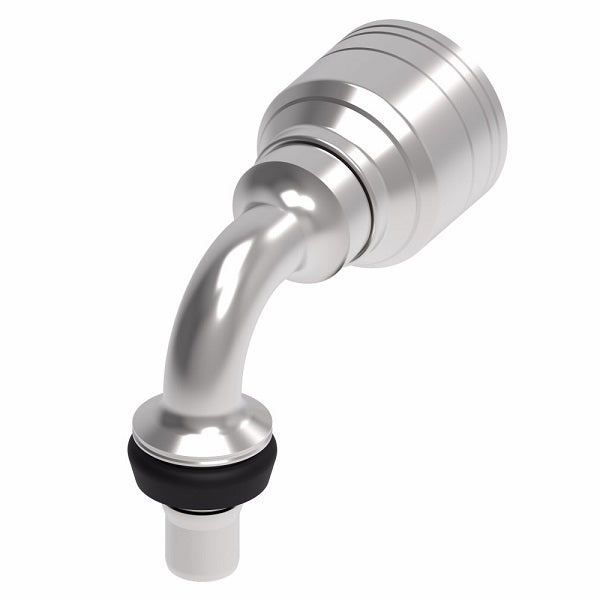

1A8MCB8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MCB) 90° Elbow | TTC Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel
1A8MCB8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MCB) 90° Elbow | TTC Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel
1A8MCB8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MCB) 90° Elbow | TTC Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel

1A8MCB8 Aeroquip by Danfoss | Male STC (Snap to Connect) Hose End (MCB) 90° Elbow | TTC Crimp Fitting | -08 Male STC x -08 Hose Barb | Steel

Sale price$31.58

Aeroquip® by Danfoss
STC (Snap to Connect) Fitting - TTC Crimp Fitting - Male STC (Snap to Connect) Hose End (MCB) - 90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $29.69
40–79 $26.84
80+ $23.69
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1/2in Male STC
  • 1/2in Hose Barb
Material(s):
  • Steel
Applications:
  • Hydraulic
    • Power Steering
    • Auxiliary Hydraulics
    • Power Brakes
    • Turbochargers
    • Fuel Injection Systems
    • Hydraulic Work Circuits
  • Air Conditioning, Refrigeration and Truck and Bus
    • Refrigerant Supply Lines
    • Compressor Discharge
    • Power Steering
    • Oil Cooler
  • Pneumatic
    • Brakes
    • Air Supply Lines
  • Cooling
    • Transmission Oil Coolers
    • Heat Exchangers
  • Equipment
    • Tractors, Loaders, Engines, Snow plows, Trucks, Crawlers, Compressors, Trailers, Reel and Deck Mowers, Asphalt and Concrete Pavers, Trenchers, Lift Platforms, Hydraulic Attachments
Features:
  • Positive round-wire style latching mechanism.
  • Swivels for installation (in absence of pressure).
  • Low profile; compact design.
  • Elastomeric o-ring seal.
  • Capable of direct porting into valve blocks or manifolds.
  • Dual purpose dust seal/release sleeve.
  • Simple stamped release tool for disconnecting.
Benefits:
  • Fast reliable one-hand connections requiring no assembly tools.
  • Eliminates cross-threading, over or undertorquing, and hose twisting.
  • Installs easily in confined areas.
  • Virtually zero leak performance per SAE J1176.
  • Direct porting eliminates adapters to maximize cost savings.
  • Resists external contamination.
  • Allows easy disconnection with release tool (sold separately).
Technical Info:
Part Number D1 L1 L2 L3 R STC Release Tool
1A4MCB4 0.17" 2.09" 1.17" 1.42" 0.51" FF90213-01-04S
1A6MCB4 - - - - - FF90213-06
1A6MCB6 0.26" 2.33" 1.34" 1.56" 0.55" FF90213-06
1A8MCB6 - - - - - FF90213-08
1A8MCB8 0.35" 2.83" 1.67" 2.09" 0.75" FF90213-08
1A12MCB12 0.55" 3.49" 2.30" 2.98" 1.22" FF90213-12
1A16MCB16 0.78" 4.22" 2.87" 3.54" 1.50" FF90213-01-16S

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
