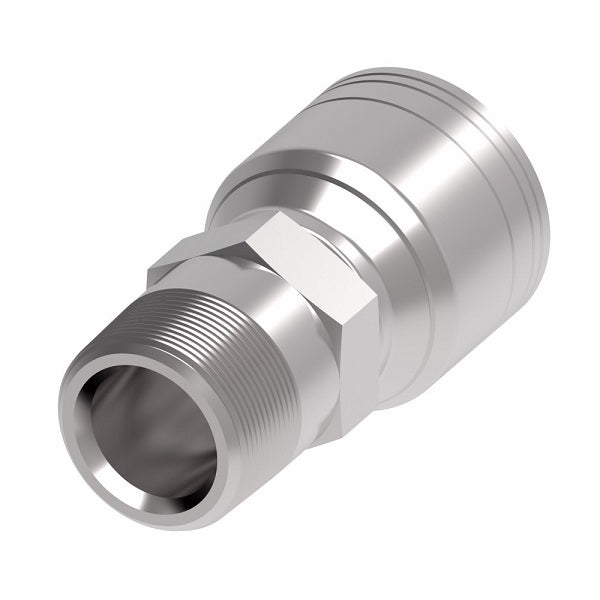

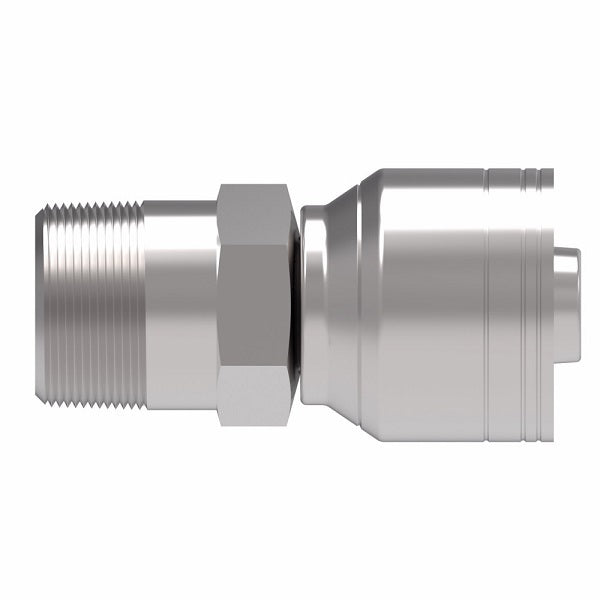

1A8BT8 Aeroquip by Danfoss | 1 & 2 Wire TTC BSP Male Tapered, BSPT (BT) Crimp Fitting | -08 Male BSPT x -08 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC BSP Male Tapered, BSPT Crimp Fitting (BT) - Straight
(Formerly Eaton Aeroquip)
The JIS parallel thread and the BSPP connection are interchangeable.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $15.34 |
| 40–79 | $13.87 |
| 80+ | $12.24 |
Discounts applied in cart/checkout.
Product Data:
Shape:
Straight
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
||||||
|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | Hex 2 |
| 1A4BT4 | R 1/4-19 | -04 | 1.99" | 1.07" | 0.16" | 0.55" |
| 1A6BT6 | R 3/8-19 | -06 | 2.16" | 1.16" | 0.26" | 0.75" |
| 1A8BT6 | R 1/2-14 | -06 | - | - | - | - |
| 1A8BT8 | R 1/2-14 | -08 | 2.61" | 1.44" | 0.38" | 0.87" |
| 1A12BT12 | R 3/4-14 | -12 | 2.80" | 1.61" | 0.61" | 1.18" |
| 1A16BT16 | R 1-11 | -16 | 3.20" | 1.84" | 0.81" | 1.42" |
| 1A20BT20 | R 1-1/4-11 | -20 | 3.79" | 2.05" | 1.05" | 1.81" |
