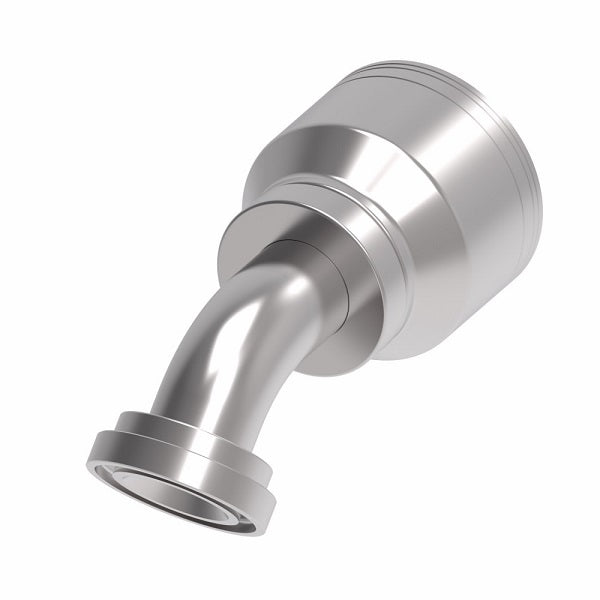

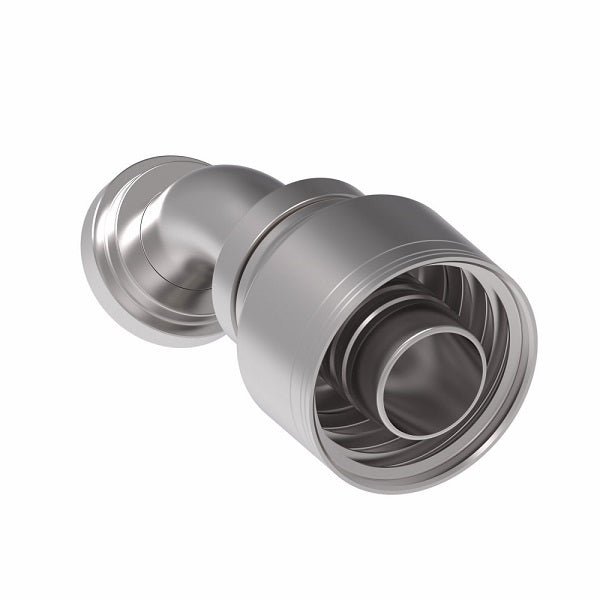

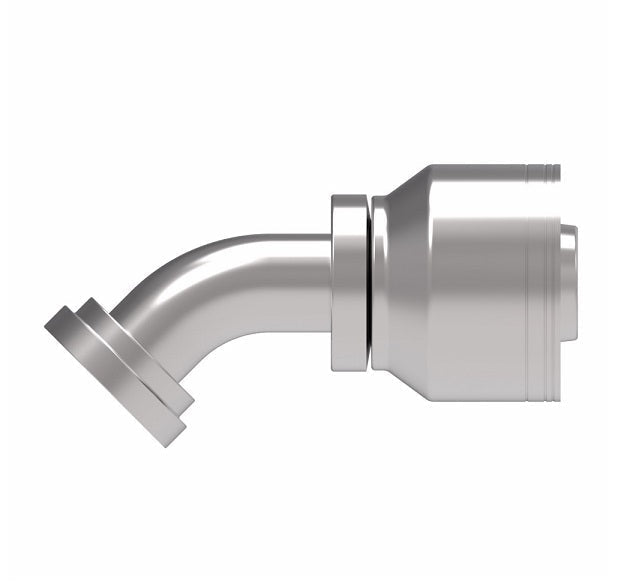

1A24FLA20 Aeroquip by Danfoss | 1 & 2 Wire TTC SAE Code 61 Split Flange 45° Elbow (FLA) Crimp Fitting | -24 Code 61 Split Flange x -20 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC SAE Code 61 Split Flange Crimp Fitting (FLA) - 45° Elbow
(Formerly Eaton Aeroquip)
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $107.76 |
| 20–59 | $97.44 |
| 60+ | $85.98 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Zinc-Nickel Plated Steel Part Number |
Thd. Flange Head Diameter KØ |
Hose Size | A | D | EØ | H |
| 1A8FLA8 | - | 1.19" | -08 | 3.11" | 1.94" | 0.37" | 0.78" |
| 1A12FLA8 | - | 1.50" | -08 | 3.64" | 2.47" | 0.37" | 1.00" |
| 1A12FLA10 | - | 1.50" | -10 | 3.68" | 2.53" | 0.46" | 1.00" |
| 1A12FLA12 | - | 1.50" | -12 | 3.67" | 2.48" | 0.58" | 1.01" |
| 1A16FLA12 | - | 1.75" | -12 | 4.16" | 2.97" | 0.58" | 1.06" |
| 1A16FLA16 | - | 1.75" | -16 | 4.35" | 3.00" | 0.76" | 1.06" |
| 1A20FLA16 | - | 2.00" | -16 | 4.81" | 3.45" | 0.76" | 1.15" |
| 1A16FLA20 | - | 1.75" | -20 | 4.80" | 3.06" | 0.76" | 1.06" |
| 1A20FLA20 | 1A20FLA20TZ | 2.00" | -20 | 5.28" | 3.55" | 1.01" | 1.18" |
| 1A24FLA20 | - | 2.37" | -20 | 5.94" | 4.20" | 1.01" | 1.41" |
| 1A24FLA24 | - | 2.37" | -24 | 6.07" | 4.25" | 1.26" | 1.41" |
| 1A32FLA24 | - | 2.81" | -24 | 6.07" | 4.25" | 1.26" | 1.41" |
| 1A24FLA32 | - | 2.37" | -32 | 6.27" | 4.29" | 1.26" | 1.41" |
| 1A32FLA32 | - | 2.81" | -32 | 7.49" | 5.52" | 1.75" | 2.00" |
