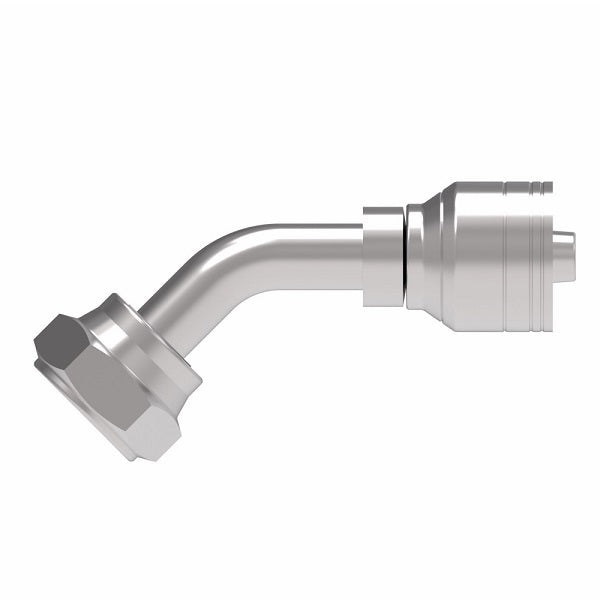

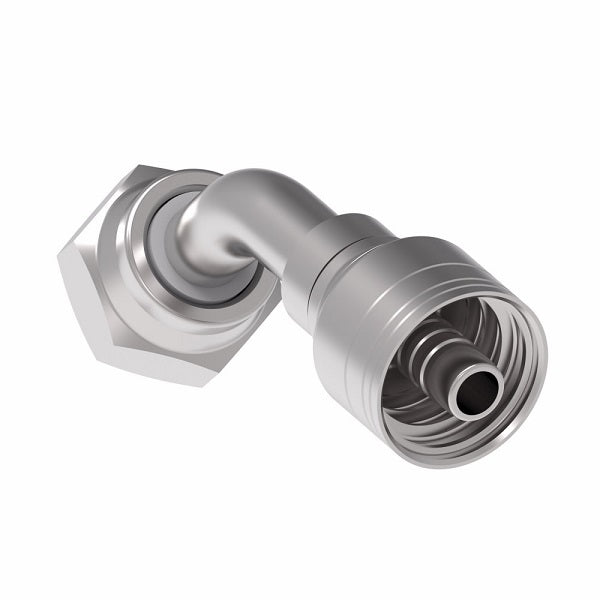

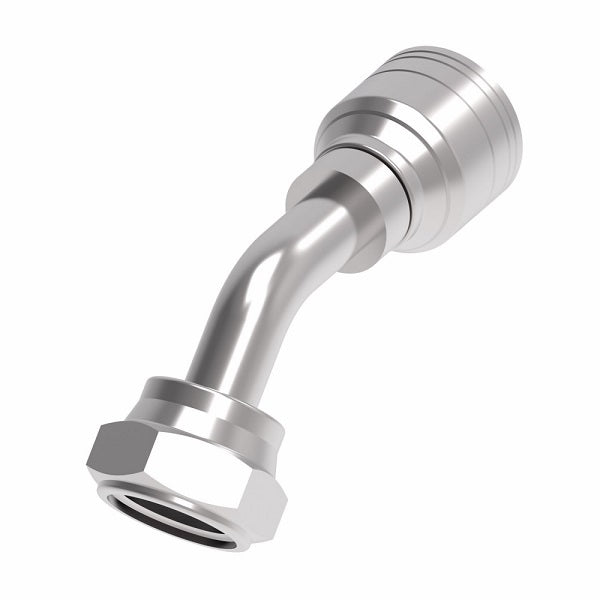

1A20BFA20 Aeroquip by Danfoss | 1 & 2 Wire TTC JIS/BSPP Female Swivel 45° Elbow (BFA) Crimp Fitting | -20 Female BSPP Swivel x -20 Hose Barb | Steel
Aeroquip® by Danfoss
1 & 2 Wire TTC JIS/BSPP Female Swivel Crimp Fitting (BFA) - 45° Elbow
(Formerly Eaton Aeroquip)
The JIS parallel thread and the BSPP connection are interchangeable. G as part of thread size is ISO Designation for parallel thread.
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $177.62 |
| 20–59 | $160.62 |
| 60+ | $141.72 |
Discounts applied in cart/checkout.
Product Data:
Shape:
45 Degree
Material(s):
Special Properties:
Compatible Series:
| Technical Info: | |||
|---|---|---|---|
 |
|||||||
|---|---|---|---|---|---|---|---|
| Steel Part Number |
Thread | Hose Size | A | D | EØ | H | Hex 1 |
| 1A4BFA4 | G 1/4 | -04 | 2.57" | 1.65" | 0.16" | 0.65" | 0.75" |
| 1A6BFA6 | G 3/8 | -06 | 2.90" | 1.91" | 0.26" | 0.75" | 0.87" |
| 1A8BFA6 | G 1/2 | -06 | - | - | - | - | - |
| 1A8BFA8 | G 1/2 | -08 | 3.60" | 2.43" | 0.38" | 0.98" | 1.06" |
| 1A10BFA10 | G 5/8 | -10 | 3.95" | 2.79" | 0.50" | 1.08" | 1.18" |
| 1A12BFA12 | G 3/4 | -12 | 4.28" | 3.09" | 0.61" | 1.16" | 1.26" |
| 1A16BFA16 | G 1 | -16 | 4.99" | 3.09" | 0.81" | 1.31" | 1.61" |
| 1A20BFA20 | G 1-1/4 | -20 | 6.05" | 4.31" | 1.05" | 1.46" | 1.97" |
