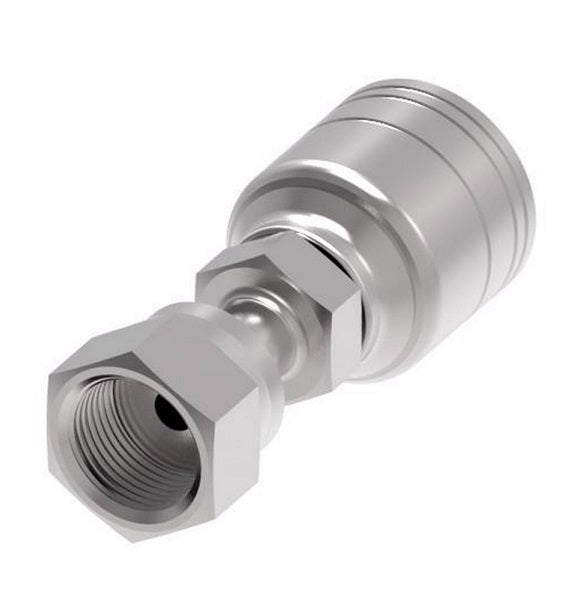

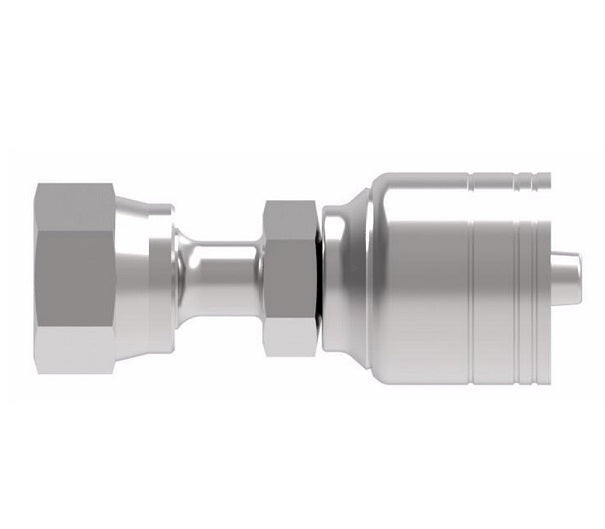

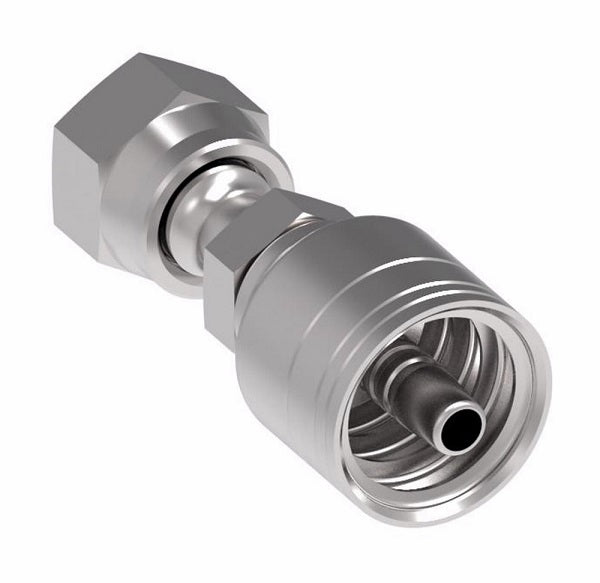

1A16FR20 Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
1A16FR20 Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel
1A16FR20 Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

1A16FR20 Aeroquip by Danfoss | Female ORS Swivel (FR) Crimp Fitting | -16 Female O-Ring Face Seal Swivel x -20 Hose Barb | Steel

Sale price$66.64

Aeroquip® by Danfoss
Female O-Ring Face Seal Swivel (FR) Crimp Fitting - Straight

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $62.64
40–79 $56.64
80+ $49.98
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1in Female O-Ring Face Seal
  • 1-1/4in Hose Barb
Material(s):
  • Steel
Technical Info:
Steel
Part Number 		Zinc-Nickel Plated
Steel
Part Number 		Hose Dash Size End Size Compatible Hose ID Inside Diameter Length
- 1A4FR6TZ -06 9/16" 0.38" 0.17" 2.33"
- 1A6FR4TZ -04 - - - -
- 1A6FR6TZ -06 11/16" 0.38" 0.26" 2.46"
- 1A8FR6TZ -06 13/16" 0.38" 0.26" 2.58"
- 1A8FR8TZ -08 13/16" 0.50" 0.36" 3.03"
- 1A10FR10TZ -10 - - - -
- 1A12FR10TZ -10 1-3/16" 0.63" 0.50" 3.26"
- 1A12FR12TZ -12 1-3/16" 0.75" 0.61" 3.36"
1A16FR20 - -20 1-7/16" 1.25" 1.05" 4.58"
1A20FR16 - -16 1-11/16" 1.00" 0.81 3.83"
1A20FR20 - -20 1-11/16" 1.25" 1.05" 4.47"
1A24FR20 - -20 - - - -
